Запчасти Case IH 5000 (4-18) - BATTERY AND BATTERY MOUNTING (04) - ELECTRICAL SYSTEMS

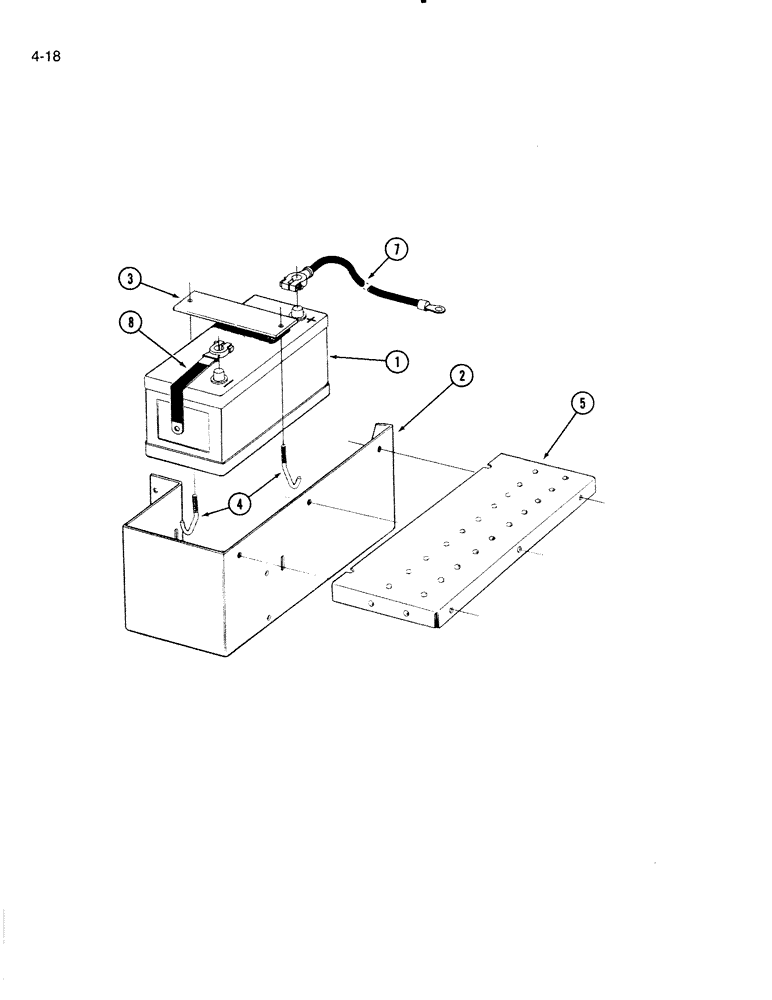

Схема запчастей Case IH 5000 - (4-18) - BATTERY AND BATTERY MOUNTING (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

BFM31F

BATTERY - 12 volt (Replaces IHLCM31)

1шт.

2

823920C1

BOX

ASSEMBLY - battery

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

3

823886C1

BAR

- battery hold down

1шт.

4

823930C1

BOLT,5/16" - 18 x 109mm

B0LT - battery hold down

2шт.

7500032

BUSHING

NUT - wing, 5/16 inch NC

2шт.

5

823882C1

COVER

- battery box

1шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

5шт.

7

878023R91

CABLE

- battery to solenoid (4000 gas engine)

1шт.

7

70633R92

CABLE

- battery to solenoid (5000 diesel engine)

1шт.

8

57029R91

CABLE

- battery ground

1шт.

Выбрано товаров: 13
