Запчасти Case IH 5000 (4-16) - CAB ROOF WIRING, MACHINES BUILT 1983 AND AFTER (04) - ELECTRICAL SYSTEMS

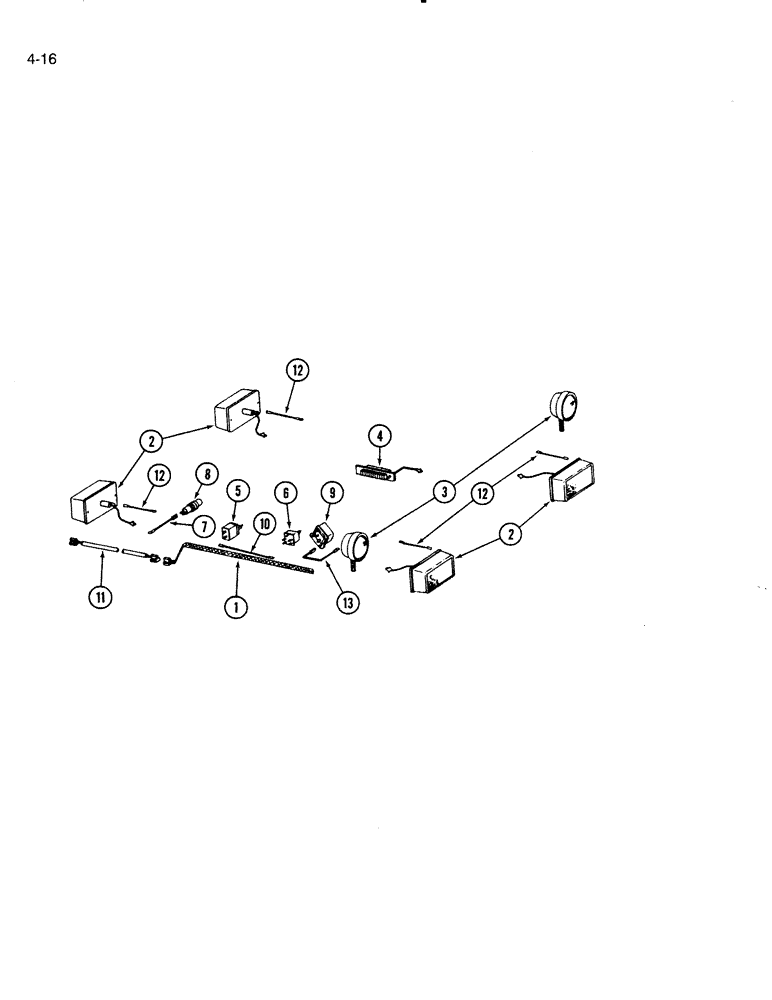

Схема запчастей Case IH 5000 - (4-16) - CAB ROOF WIRING, MACHINES BUILT 1983 AND AFTER (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

823658C3

HARNESS

ASSEMBLY - cab

1шт.

26110R1

LOCK NUT,1/4"-20, GC

NUT - hex lock, 1/4 inch NC, Grade 8

2шт.

2

REF

INSTRUCTION

LIGHT ASSEMBLY - warning (See Page 4-45)

4шт.

3

REF

INSTRUCTION

LIGHT ASSEMBLY - headlight (See Page 4-47)

2шт.

4

823757C91

LIGHT

ASSEMBLY - cab interior

1шт.

24416R1

SCREW,Cross Oval Hd, #6 x 3/8"

- oval head cross recess tapping No. 6-20 x 3/8 inch

4шт.

455490

BULB,C-6, #1003, 12V, .94W

- lamp No. 1003

1шт.

5

109268C2

SWITCH

- cab thermostat (cabs with air conditioning)

1шт.

109311H

JAM NUT

- hex, jam, 7/16 inch NS

1шт.

823384C1

KNOB

- switch

1шт.

6

168822C2

SWITCH

- blower

1шт.

109311H

JAM NUT

- hex, jam, 7/16 inch NS

1шт.

823384C1

KNOB

- switch

1шт.

7

111229C1

CABLE

- indicator light (Cabs with air conditioning)

1шт.

8

109369C91

LIGHT ASSY.

LIGHT ASSEMBLY - indicator (Cabs with air conditioning)

1шт.

71652C1

LENS

- lamp

1шт.

200557H1

BULB,C2V, #1815, 14V

- lamp, No. 1815

1шт.

9

437882C1

RELAY

- air conditioning lockout (Cabs with air conditioning)

1шт.

10

111229C1

CABLE

- blower switch to thermostat switch

1шт.

11

831788C1

HARNESS

ASSEMBLY - warning light extension

1шт.

12

823651C1

CABLE

- warning light ground

4шт.

13

1276413C1

ELECTRICAL WIRE

CABLE - relay ground (Cabs with air conditioning)

1шт.

Выбрано товаров: 22
