Запчасти Case IH 5000 (4-14) - CAB ROOF WIRING, MACHINES BUILT PRIOR TO 1983 (04) - ELECTRICAL SYSTEMS

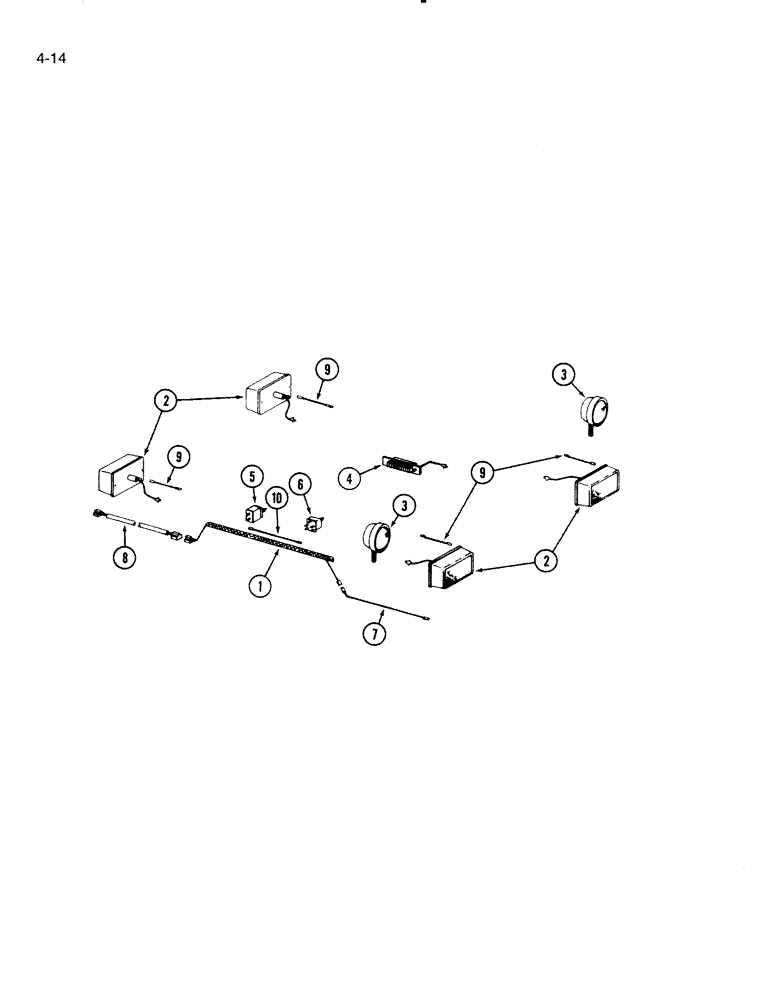

Схема запчастей Case IH 5000 - (4-14) - CAB ROOF WIRING, MACHINES BUILT PRIOR TO 1983 (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

823658C3

HARNESS

ASSEMBLY - cab

1шт.

26110R1

LOCK NUT,1/4"-20, GC

NUT - hex lock, 1/4 inch NC, Grade 8

2шт.

2

REF

INSTRUCTION

LIGHT ASSEMBLY - warning (See Page 4-45)

4шт.

3

REF

INSTRUCTION

LIGHT ASSEMBLY - headlight (See Page 4-47)

2шт.

4

823757C91

LIGHT

ASSEMBLY - cab interior

1шт.

24416R1

SCREW,Cross Oval Hd, #6 x 3/8"

- oval head cross recess tapping,No. 6-20 x 3/8 inch

4шт.

455490

BULB,C-6, #1003, 12V, .94W

- lamp No. 1003

1шт.

5

175575C1

THERMOSTAT

SWITCH - thermostat control (Cabs with air conditioning)

1шт.

109311H

JAM NUT

- hex, jam, 7/16 inch NS

1шт.

6

168822C2

SWITCH

- blower

1шт.

109311H

JAM NUT

- hex, jam, 7/16 inch NS

1шт.

7

831787C1

CABLE

- power supply extension

1шт.

8

831788C1

HARNESS

ASSEMBLY - warning light extension

1шт.

9

823651C1

CABLE

- warning light ground

4шт.

10

NSS

NOT SOLD SEPARAT

CABLE - blower, Serial Range: switch-thermostat

1шт.

Выбрано товаров: 15
