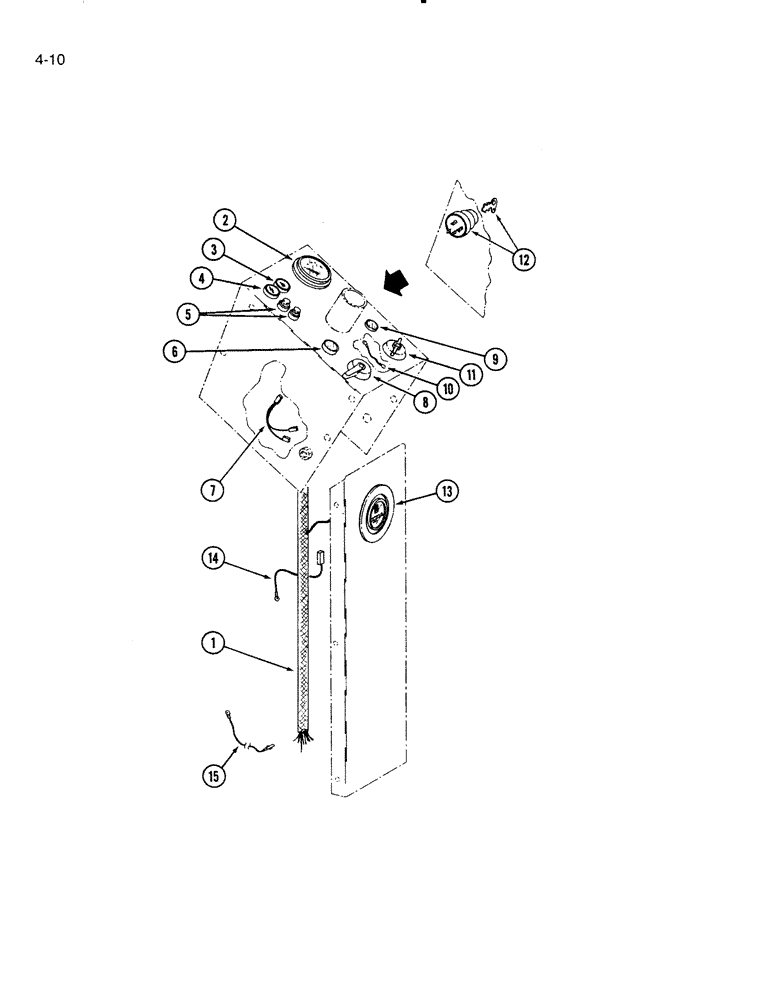

Запчасти Case IH 5000 (4-10) - INSTRUMENT PANEL WIRING, 5000 WINDROWER (04) - ELECTRICAL SYSTEMS

1

829148C4

HARNESS

ASSEMBLY - front

1шт.

2

677162R91

GAUGE

ASSEMBLY - temperature indicator

1шт.

3

829109C91

LIGHT

LAMP ASSEMBLY - oil pressure indicator

1шт.

A24354

BULB

- light

1шт.

4

H352336

LIGHT

LAMP ASSEMBLY - alternator indicator

1шт.

A24354

BULB

- light

1шт.

5

376852R91

HOUSING

HOLDER ASSEMBLY - fuse

2шт.

223-31

FUSE,10 Amp, Type 3AG

- 30 ampere

1шт.

356445R91

KNOB

- fuse holder

1шт.

6

829111C91

LAMP

- flasher indicator

1шт.

27764R1

LAMP,C2F, #1895G, 14V

BULB - light

1шт.

7

829153C1

HARNESS

- flasher indicator light

1шт.

8

131066C91

SWITCH

- turn signal (Replaces 107334C91)

1шт.

A77185

KIT

- turn signal switch knob

1шт.

9

887850C2

PANEL

LAMP ASSEMBLY - instrument panel

1шт.

200557H1

BULB,C2V, #1815, 14V

- lamp, No. 1815

1шт.

10

829156C1

CABLE

- light switch to panel lamp

1шт.

11

829113C1

SWITCH

- light

1шт.

12

677221R91

SWITCH

ASSEMBLY - starting

1шт.

1128495C1

BUCKET TOOTH KEY

KEY - starting switch

1шт.

13

709152C2

METER

- hour (Alternate for 740543C1)

1шт.

13

740543C1

HOURMETER

METER - hour (Alternate for 709152C2)

1шт.

356737R91

DAMPER

- vibration

1шт.

121839

SCREW,Sl Rnd Hd, #6 - 32 x 5/16"

- round head slotted, No. 6 x 5/16 inch

3шт.

492-11006

LOCK WASHER,#6

Washer, Lock, #6

3шт.

14

562474C1

CABLE

- hour meter ground

1шт.

15

823540C1

CABLE

- fuel, Serial Range: gauge-harness

1шт.
