Запчасти Case IH 5000 (4-04) - CHASSIS WIRING, 5000 WINDROWER (04) - ELECTRICAL SYSTEMS

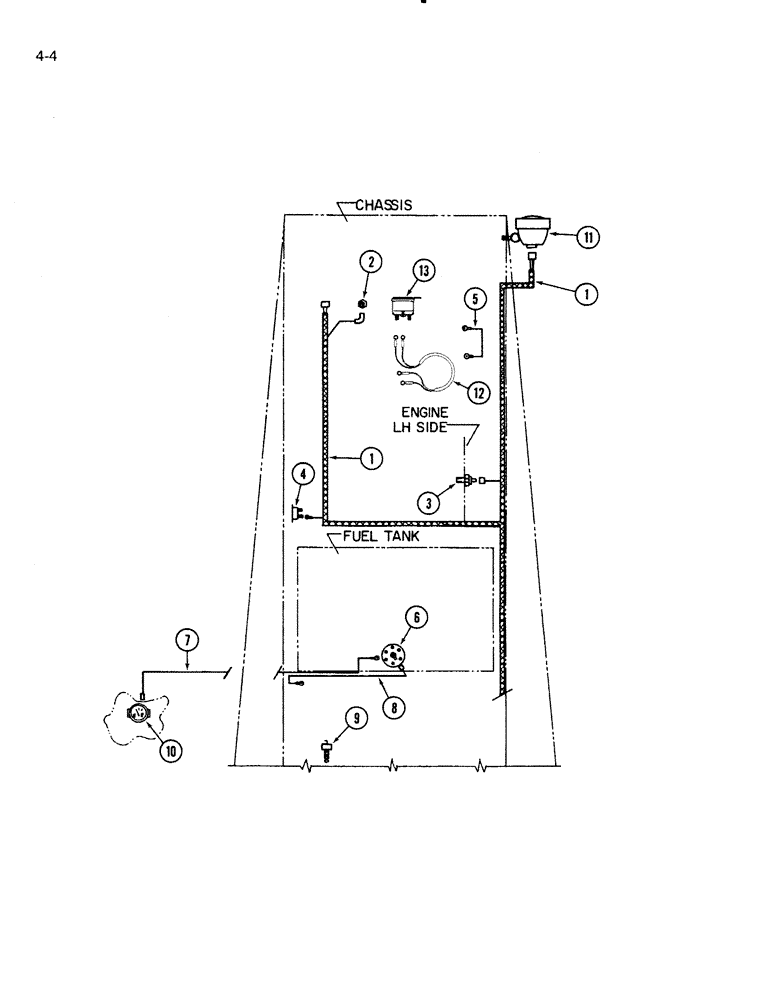

Схема запчастей Case IH 5000 - (4-04) - CHASSIS WIRING, 5000 WINDROWER (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

823873C3

HARNESS

ASSEMBLY - rear

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

425-105

NUT,5/16"-18, G5

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 3/64 inch

1шт.

2

677163R91

TEMPERATURE SENDER

SWITCH - water temperature sending

1шт.

3

L108628

SWITCH

- oil pressure sending (Replaces 829026C1)

1шт.

444331

BUSHING

- pipe, reducing

1шт.

4

1964894C1

CIRCUIT-BREAKER

BREAKER - circuit, 40 amp (Replaces 245031C1)

1шт.

470-10816

SCREW,Slotted Pan Hd, #8-32 x 1"

- machine, No. 8 NC x 1 inch

2шт.

225-14108

NUT,#8-32

- hex, No. 8 NC

2шт.

492-11008

LOCK WASHER,#8

Washer, Lock, #8

2шт.

495-21019

WASHER,#8

2шт.

5

57039R91

CABLE

- engine ground

1шт.

6

823593C2

SENDER UNIT

GAUGE - fuel sender

1шт.

463-61012

SCREW,Hex Hd, #10-32 x 3/4"

- machine, hex head, No. 10 NF x 3/4 inch

5шт.

823541C1

GASKET

-, Serial Range: sender-tank

1шт.

7

823539C1

CABLE

- fuel gauge sender to fuel gauge

1шт.

8

823776C1

CABLE

- fuel, Serial Range: gauge-ground

1шт.

9

121629C3

SWITCH

- neutral start

1:шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

1шт.

10

H142794

ELECTRICAL GAUGE

GAUGE - fuel (Replaces 533992R1)

1шт.

11

REF

INSTRUCTION

LIGHT ASSEMBLY - combination stop and tail (See Page 4-45)

1шт.

12

84262C1

HARNESS

- starter solenoid

1шт.

13

A39079

SOLENOID

SWITCH ASSEMBLY - solenoid (Replaces 121613C1)

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

492-11028

WASHER

- flat, 1/4 inch ID

2шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

225-14210

NUT,#10-32

1шт.

425-105

NUT,5/16"-18, G5

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

Выбрано товаров: 33
