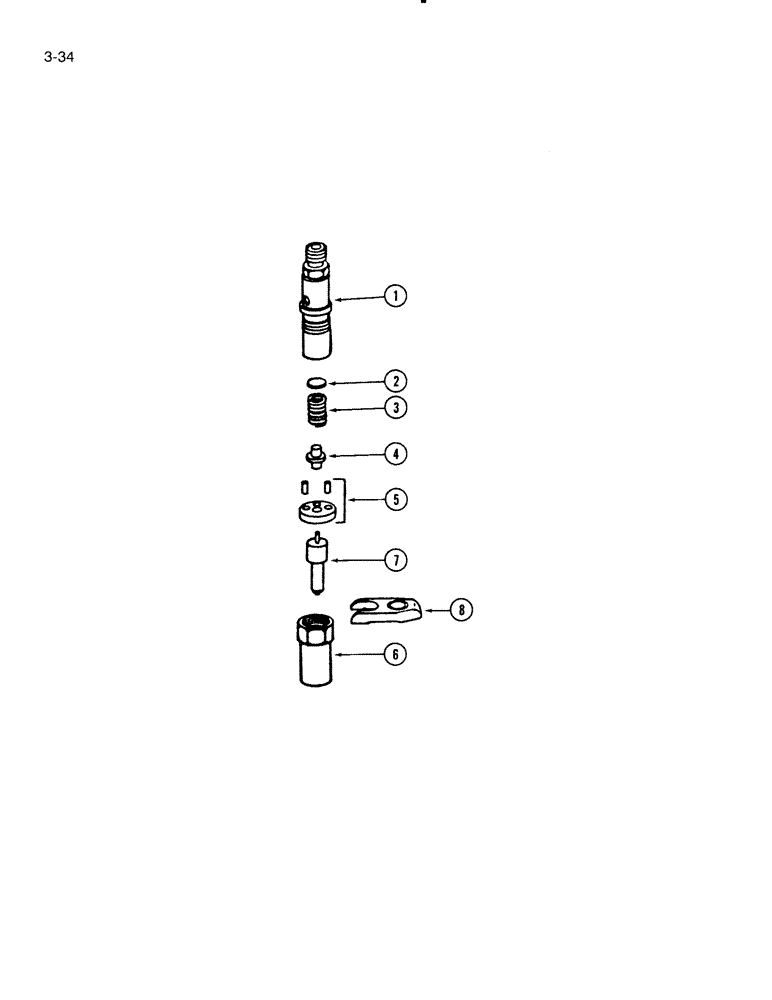

Запчасти Case IH 5000 (3-34) - INJECTION NOZZEL, D-239 DIESEL ENGINE (03) - FUEL SYSTEM

3218247R92

HOLDER

HOLDER ASSEMBLY - nozzle

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - nozzle holder

1шт.

2

3218657R1

SHIM

SHIM - 0.500 mm

1шт.

2

3218658R1

SHIM

SHIM - 0.525 mm

1шт.

2

3218659R1

SHIM

SHIM - 0.550 mm

1шт.

2

3218660R1

SHIM

SHIM - 0.575 mm

1шт.

2

3218661R1

SHIM

SHIM - 0.600 mm

1шт.

2

3218662R1

SHIM

SHIM - 0.700 mm

1шт.

2

3218663R1

SHIM

SHIM - 0.800 mm

1шт.

2

3218664R1

SHIM

SHIM - 0.900 mm

1шт.

3

3218385R2

SPRING

SPRING - pressure

1шт.

4

3218386R2

SPACER

PIN - pressure

1шт.

5

3218387R1

SPACER

SPACER - spring

1шт.

6

3218388R1

NUT

NUT - nozzle cap

1шт.

7

3218251R2

NOZZLE CAP

NOZZLE - injection, new

1шт.

7

735255C91

REMAN-FUEL INJECTOR

NOZZLE - injection, remanufactured

1шт.

7

1934199C1

CORE-FUEL INJECTOR

RETURN NUMBER - use this part number to return nozzel core for credit

1шт.

8

3218128R1

RETAINER

RETAINER - injector nozzle

1шт.

326-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

BOLT, Hex, 5/16"-18 x 1", G8, Full Thd

1шт.

3218129R1

WASHER

WASHER - retainer bolt

1шт.
