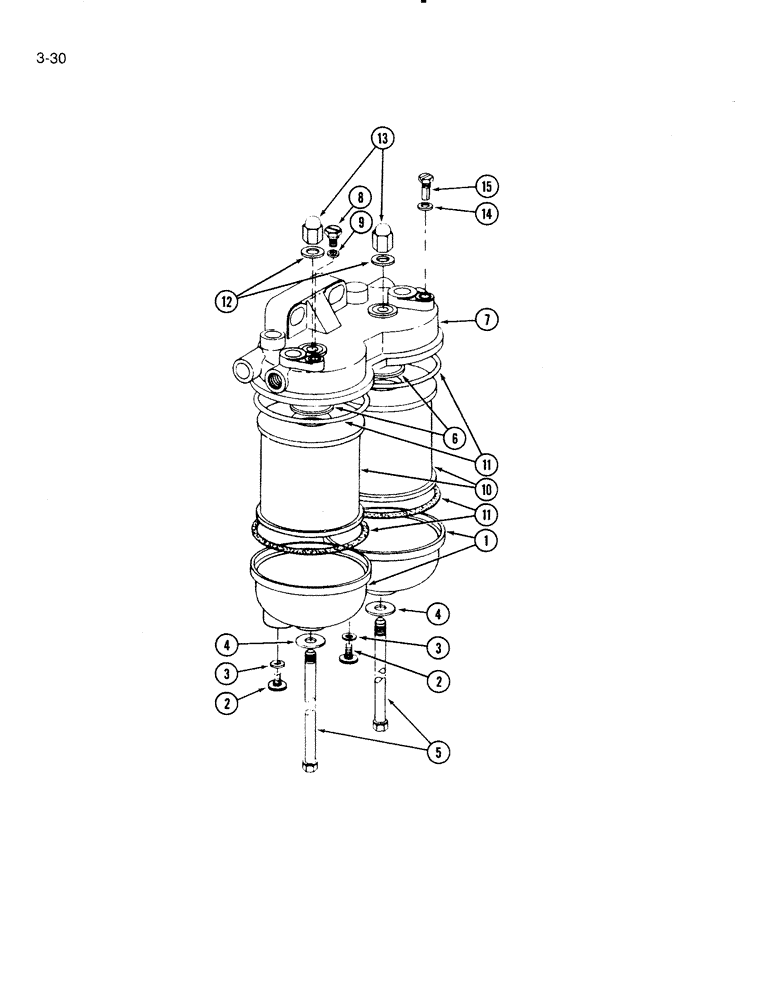

Запчасти Case IH 5000 (3-30) - FUEL FILTER, D-239 DIESEL ENGINE, PRIOR TO ENGINE SERIAL NUMBER 20544 (03) - FUEL SYSTEM

3144306R91

FILTER

ASSEMBLY - fuel, with metal bowl (Replaces 3144227R91 with glass bowl)

1шт.

1

3144481R1

BOWL

- fuel, metal (Replaces glass bowl 3144481R1)

2шт.

2

3144475R1

SCREW

- drain

2шт.

3

3144476R2

RING,7.2mm ID x 12mm OD x 1.5mm Thk

- packing

2шт.

4

3144480R1

RING,8.1mm ID x 16mm OD x 2mm Thk

- packing

2шт.

5

3144482R1

SCREW

BOLT - fuel bowl (Replaces hollow bolt 3144479R1)

2шт.

6

3144779R1

RING

- packing

2шт.

7

3144484R1

HEAD

- filter

1шт.

8

3144780R1

SCREW

- air vent

1шт.

9

757760R1

RING

- packing

1шт.

10

1967094C1

FUEL FILTER

ELEMENT

2шт.

11

3144472R1

RING

- packing

4шт.

12

3144474R1

RING,8mm ID x 13mm OD x 1.5mm Thk

- packing

2шт.

13

3144473R1

CROWN NUT

- crown

2шт.

14

933610R1

SEALING RING,M14 x 18 x 1.8

1шт.

15

712616R1

PLUG,Hex, M14 x 1.5

Filler Hex, M14 x 1.5

1шт.

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

1шт.

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.
