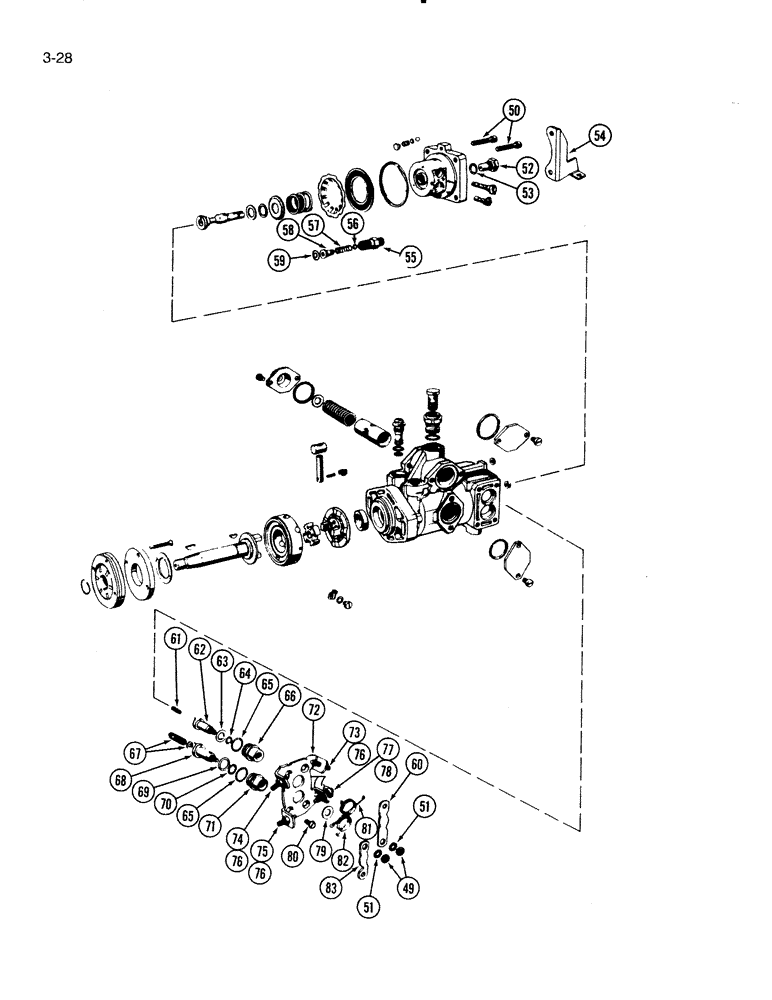

Запчасти Case IH 5000 (3-28) - FUEL INJECTION PUMP, D-239 DIESEL ENGINE (03) - FUEL SYSTEM

3218002R92

PUMP

ASSEMBLY - fuel injection

1шт.

49

30208R1

NUT,M6, Cl 10

- hex, 6 mm

2шт.

50

3078600R1

SCREW

- pump to distributor head

4шт.

51

492-11006

LOCK WASHER,#6

Washer, Lock, , Throttle and control #6

2шт.

52

3078514R1

PLUG

- distributor head

1шт.

53

3132407R1

O-RING

O-RING - plug

1шт.

54

3078570R1

BRACKET

- injection pump

1шт.

55

3059067R2

HYD CONNECTOR

HOLDER - delivery valve

4шт.

56

3059066R1

WASHER,2.5mm ID x 7.3mm OD x 1.5mm Thk

- delivery valve

4шт.

57

3132408R1

SPRING

- delivery valve

4шт.

58

3132879R1

VALVE

- delivery

4шт.

59

3079378R1

WASHER

- delivery valve (Replaces 3078362R1)

4шт.

60

3132590R1

LEVER

- throttle

1шт.

61

3078555R1

SPRING

- throttle

1шт.

62

3078517R1

SHAFT

- throttle

1шт.

63

3078519R1

WASHER

- throttle shaft

1шт.

64

3078354R1

O-RING,2mm Thk x 6.5mm ID

- throttle shaft

1шт.

Part of Fuel Injection Pump Gasket kit P/N 3078526R91

1шт.

65

785602R1

O-RING

- control plunger and throttle

2шт.

Part of Fuel Injection Pump Gasket kit P/N 3078526R91

1шт.

66

3078556R1

BUSHING

- throttle shaft

1шт.

67

3078563R91

KIT

- control plunger spring

1шт.

68

3078521R1

SHAFT

- control plunger

1шт.

69

3078523R1

WASHER

- control plunger shaft

1шт.

70

3078363R1

O-RING

- control plunger shaft

1шт.

Part of Fuel Injection Pump Gasket kit P/N 3078526R91

1шт.

71

3078524R1

BUSHING

- control plunger shaft

1шт.

72

3078557R1

PLATE

- stop

1шт.

73

3132885R1

BOLT

- stop

1шт.

74

3136136R1

SCREW

- stop

1шт.

75

3059074R1

SCREW

- stop

1шт.

76

30208R1

NUT,M6, Cl 10

- hex, 6 mm

3шт.

77

3079141R1

NUT

- hex, stop screw

1шт.

78

3132251R1

STOP LOCK

SCREW - stop

1шт.

79

3059076R1

WASHER

- plunger shaft control

1шт.

80

931320R1

SCREW,M6 x 12mm, Cl 8.8

- stop plate

4шт.

81

3132588R1

SPRING

- throttle shaft torsion

1шт.

82

3132589R1

SPRING

- control plunger torsion

1шт.

83

3059077R1

LEVER

- control plunger

1шт.

83

3059078R1

LEVER

- control plunger

1шт.

3079044R1

SCREW

PLUG - closing (Replaces 3079533R1)

1шт.

3078526R91

GASKET KIT

KIT - fuel injection pump gasket, Includes: Ref. 64, 65 and 70

1шт.
