(3-26) - FUEL INJECTION PUMP, D-239 DIESEL ENGINE

Запчасти Case IH 5000 (3-26) - FUEL INJECTION PUMP, D-239 DIESEL ENGINE (03) - FUEL SYSTEM

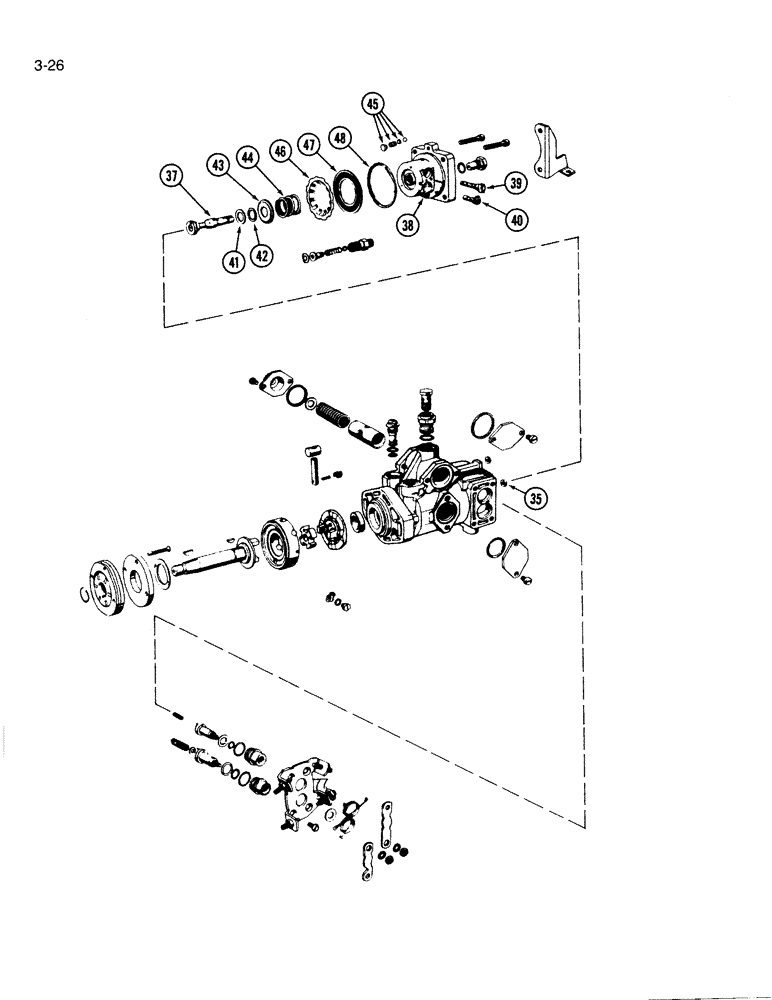

Схема запчастей Case IH 5000 - (3-26) - FUEL INJECTION PUMP, D-239 DIESEL ENGINE (03) - FUEL SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

3218002R92

PUMP

ASSEMBLY - fuel injection

1шт.

35

3078761R2

WASHER

- plunger, 1.80 mm

1шт.

35

3078763R2

WASHER

- plunger, 1.84 mm

1шт.

35

3078765R2

WASHER

- plunger, 1.88 mm

1шт.

35

3078767R2

WASHER

- plunger, 1.92 mm

1шт.

35

3078769R2

WASHER

- plunger, 1.96 mm

1шт.

35

3078771R2

WASHER

- plunger, 2.00 mm

1шт.

35

3078773R2

WASHER

- plunger, 2.04 mm

1шт.

35

3078775R2

WASHER

- plunger, 2.08 mm

1шт.

35

3078777R2

WASHER

- plunger, 2.12 mm

1шт.

35

3078779R2

WASHER

- plunger, 2.16 mm

1шт.

35

3078781R2

WASHER

- plunger, 2.20 mm

1шт.

35

3078783R2

WASHER

- plunger, 2.24 mm

1шт.

35

3078785R2

WASHER

- plunger, 2.28 mm

1шт.

35

3078787R2

WASHER

- plunger, 2.32 mm

1шт.

35

3078789R2

WASHER

- plunger, 2.36 mm

1шт.

35

3078791R2

WASHER

- plunger, 2.40 mm

1шт.

35

3078793R2

WASHER

- plunger, 2.44 mm

1шт.

35

3078795R2

WASHER

- plunger, 2.48 mm

1шт.

35

3078797R2

WASHER

- plunger, 2.52 mm

1шт.

35

3078799R2

WASHER

- plunger, 2.56 mm

1шт.

35

3078801R2

WASHER

- plunger, 2.60 mm

1шт.

35

3078803R2

WASHER

- plunger, 2.64 mm

1шт.

35

3078805R2

WASHER

- plunger, 2.68 mm

1шт.

35

3078807R2

WASHER

- plunger, 2.72 mm

1шт.

35

3078809R2

WASHER

- plunger, 2.76 mm

1шт.

35

3078811R2

WASHER

- plunger, 2.80 mm

1шт.

35

3078813R2

WASHER

- plunger, 2.84 mm

1шт.

35

3078815R2

WASHER

- plunger, 2.88 mm

1шт.

3078599R91

HEAD

ASSEMBLY - pump with plunger and control piston

1шт.

37

NSS

NOT SOLD SEPARAT

PLUNGER - pump

1шт.

38

NSS

NOT SOLD SEPARAT

HEAD - pump

1шт.

39

NSS

NOT SOLD SEPARAT

BOLT - head

1шт.

40

NSS

NOT SOLD SEPARAT

BOLT - head

1шт.

41

3078540R1

WASHER

- plunger, 1.35 mm

1шт.

41

3078541R1

WASHER

- plunger, 1.60 mm

1шт.

41

3078542R1

WASHER

- plunger, 1.85 mm

1шт.

42

3078537R1

WASHER

- plunger, 1.65 mm

1шт.

42

3078571R1

WASHER

- plunger, 2.85 mm

1шт.

43

3078516R1

SEAT

- plunger spring

1шт.

44

3078515R1

SPRING

- plunger

1шт.

45

3078365R91

SET - relief valve

1шт.

46

3078576R1

SPRING WASHER

- spring

1шт.

47

3078578R1

FILTER, FUEL

FILTER - fuel

1шт.

48

3078366R1

O-RING

- distributor head

1шт.

Part of Fuel Injection Pump Gasket kit P/N 3078526R91

1шт.

3078526R91

GASKET KIT

KIT - fuel injection pump gasket, Includes: Ref. 48

1шт.
