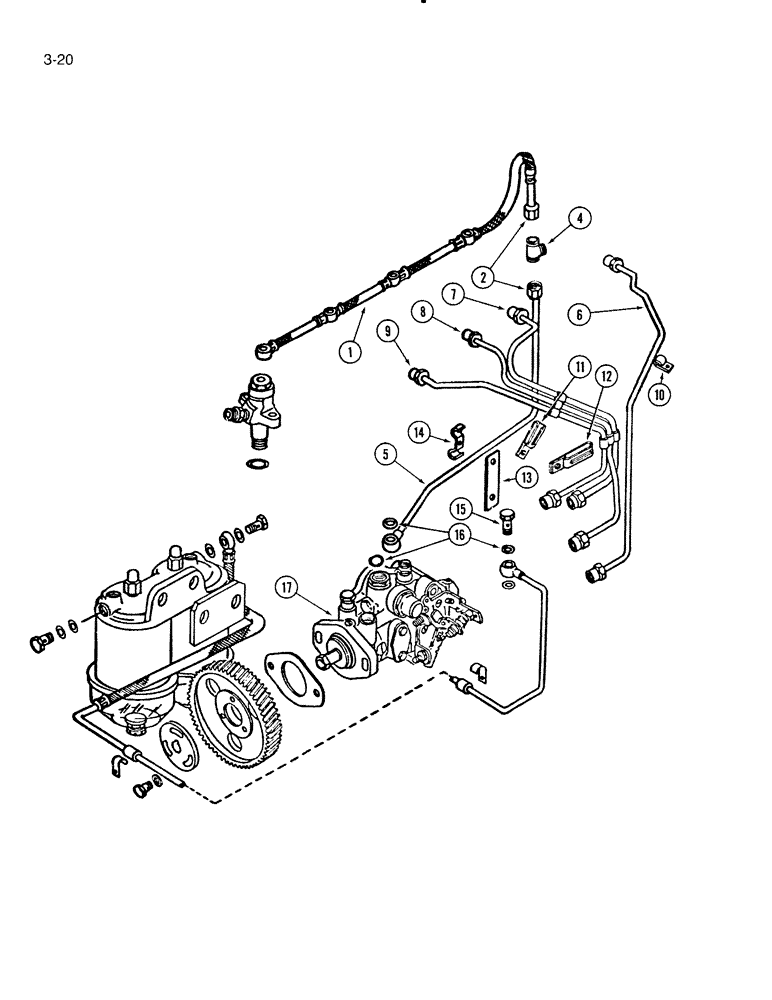

Запчасти Case IH 5000 (3-20) - FUEL INJECTION SYSTEM, D-239 DIESEL ENGINE (03) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
3218124R1
HOSE
- line leak
1шт.
3218130R1
BANJO BOLT,Hex, M6 x 133.02mm
- hollow
4шт.
933696R1
SEALING RING,M6 x 10 x 1
RING - packing, flat, 6 x 10 mm
8шт.
2
222-503
TUBE NUT,1/2"-20
NUT - coupling
2шт.
4
51542D
TEE - tube 1/2"-20
1шт.
5
3144214R91
LINE
- overflow
1шт.
6
3218152R1
INJECTION PIPE
TUBE ASSEMBLY - injection No. 4
1шт.
7
3218151R1
INJECTION PIPE
TUBE ASSEMBLY - injection No. 3
1шт.
8
3218150R1
INJECTION PIPE
TUBE ASSEMBLY - injection No. 2
1шт.
9
3218149R1
INJECTION PIPE
TUBE ASSEMBLY - injection No. 1
1шт.
10
3132770R1
COLLAR
CLAMP - tube
2шт.
11
3132770R1
COLLAR
CLAMP - tube (Replaces 3218241R1)
1шт.
12
3132768R1
CLAMP
- tube
1шт.
12
3132768R1
CLAMP
- tube (Replaces 3218243R1)
1шт.
113-65
BOLT,Hex, 1/4" - 20 x 1-3/8", Gr 5
- hex, 1/4 NC x 1-3/8 inch
1шт.
413-410
BOLT,Hex, 1/4" - 20 x 5/8", Gr 5
- hex, 1/4 NC x 5/8 inch
1шт.
425-104
NUT,1/4"-20, Cl 5
- hex, 1/4 inch NC
1шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
3шт.
931330R1
SCREW,M6 x 1 x 12mm, Cl 8.8
- slotted pan head machine
3шт.
30208R1
NUT,M6, Cl 10
- hex, 6 mm
3шт.
13
3055458R1
LARGE PLATE
LINK - fuel line
1шт.
413-610
BOLT,Hex, 3/8" - 16 x 5/8", Gr 5
1шт.
492-11038
LOCK WASHER,3/8"
1шт.
14
3055386R1
CLAMP
CLIP - fuel line
2шт.
413-410
BOLT,Hex, 1/4" - 20 x 5/8", Gr 5
- hex, 1/4 NC x 5/8 inch
2шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
15
717200R1
BANJO BOLT,M12 x 1.5 x 28mm
SCREW - hollow
1шт.
16
E135042
SEALING RING
RING - packing, 12 x 15.5 mm
3шт.
17
REF
INSTRUCTION
PUMP ASSEMBLY - fuel injection (See Page 3-25)
1шт.
425-105
NUT,5/16"-18, G5
2шт.
3055574R1
WASHER,8.5mm ID x 19mm OD x 2.5mm Thk
- flat, 21/64 x 3/4 x 3/32 inch
2шт.
933981R1
NUT,M12 x 1.75, Cl 5
Hex M12 x 1.75, Cl 5
1шт.
892-10012
LOCK WASHER,M12
WASHER - lock, 12 mm
1шт.
Выбрано товаров: 35
