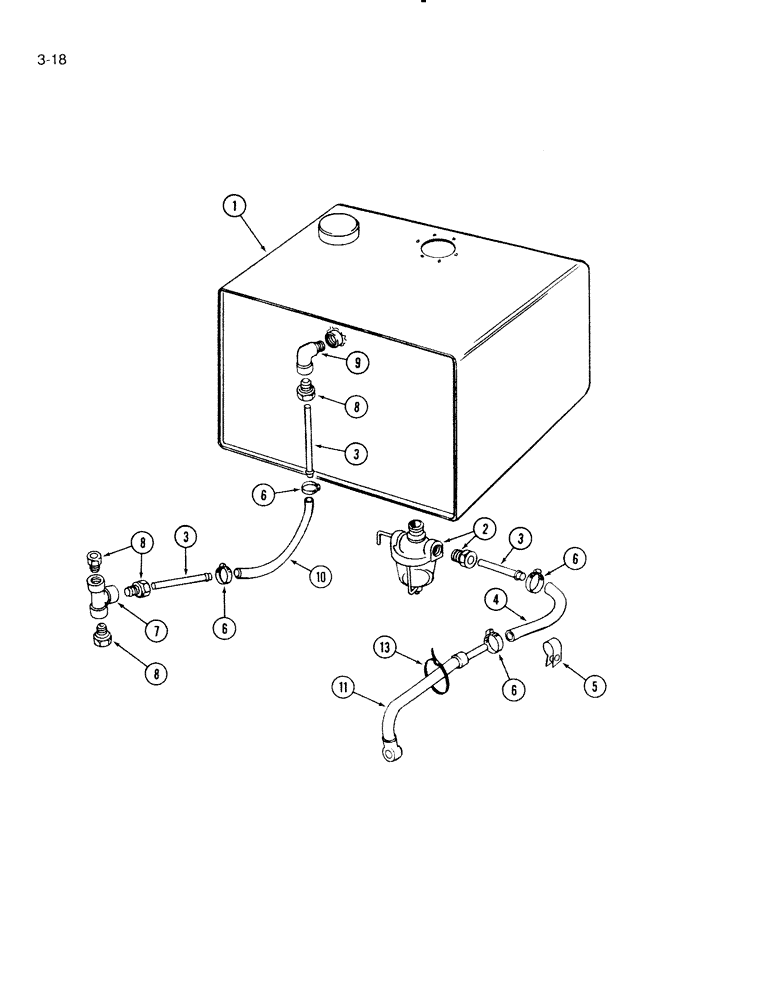

Запчасти Case IH 5000 (3-18) - FUEL SYSTEM, 5000 WINDROWER (03) - FUEL SYSTEM

1

REF

INSTRUCTION

TANK ASSEMBLY - fuel (See Page 3-3)

1шт.

2

61782C91

STRAINER ASSY.

STRAINER ASSEMBLY - fuel (See Page 3-15)

1шт.

2

61782C91GV

BOWL

Value, Fuel Strainer

1шт.

3

829289C1

TUBE,0.625" OD, 2" Length

- fuel suction and return

3шт.

4

NSS

NOT SOLD SEPARAT

HOSE - fuel suction, 34-1/2 inch (Order 1954143C1 and, Serial Range: cut-lenght)

1шт.

5

49768

CLIP

- hose

1шт.

6

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP, HOSE, #06, .44/.78 Type F Worm

3шт.

6

831872C1

HOSE CLAMP

CLAMP - hose retaining

1шт.

7

51542D

TEE - tube 1/2"-20

1шт.

8

222-503

TUBE NUT,1/2"-20

NUT - tube

4шт.

9

36391D

ELBOW,90 Degree x 1/4" NPT x 1/2"-20

- tube, 90 degree

1шт.

10

NSS

NOT SOLD SEPARAT

HOSE - fuel return, 17-1/2 inch (Order 1954143C1 and, Serial Range: cut-lenght)

1шт.

11

3218491R1

HOSE

TUBE - fuel supply

1шт.

13

306132C1

CABLE TIE,14.5" L

STRAP - tie, nylon, 14 inch

1шт.
