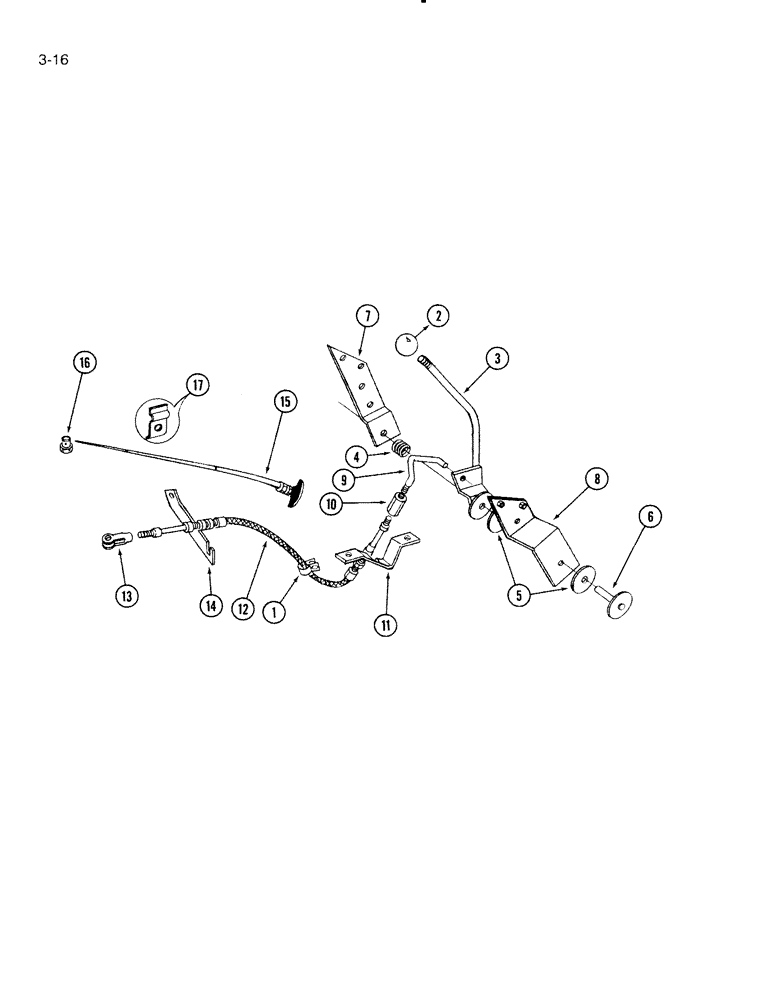

Запчасти Case IH 5000 (3-16) - THROTTLE CONTROLS, 5000 WINDROWER (03) - FUEL SYSTEM

1

S79579

CLAMP

- throttle cable

1шт.

2

610638R1

KNOB

- throttle control rod

1шт.

3

828463C2

LEVER

ASSEMBLY - throttle control

1шт.

4

M1015

SPRING

- friction

1шт.

5

58666D

FRICTION WASHER

WASHER - friction

2шт.

6

828908C1

SHAFT

ASSEMBLY - throttle control pivot

1шт.

495-81024

WASHER,17/32" x 1 1/4" x .060"

- flat, 17/32 x 1-1/4 x 1 /16inch

1шт.

138-2055

PIN,3/16" x 1 1/2", Coiled

1шт.

7

828866C2

SUPPORT

- throttle lever and shaft inner

1шт.

8

823623C1

SUPPORT

ASSEMBLY - throttle lever and shaft outer

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

3шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

492-11038

LOCK WASHER,3/8"

3шт.

9

828864C1

ROD

- throttle cable adjusting

1шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

10

828907C1

TURNBUCKLE

- throttle control

1шт.

11

828662C1

SUPPORT

- throttle cable

1шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

12

597842R1

CABLE

- throttle

1шт.

225-14210

NUT,#10-32

2шт.

13

117824

YOKE

- clevis, No.10 NF

1шт.

138082

CLEVIS PIN,3/16" x .580"

PIN - clevis

1шт.

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

14

1969468C1

SUPPORT

- throttle cable (Replaces 829239C1)

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

15

829235C1

CABLE

- fuel control

1шт.

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

1шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

16

396388R1

PIVOT

- fuel control cable swivel

1шт.

169-133

SCREW,Sl Fil Hd, #8 - 32 x 3/8"

- fillister head, No. 8 x 3/8 inch

1шт.

21784R1

WASHER

- flat, 17/64 x 1/2 x 3/64 inch

1шт.

19-1100

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

17

32596D

FASTENER

CLAMP - fuel control cable

2шт.

470-11016

SCREW,Pan HD, #10 - 24 x 1"

- machine, pan head slotted, No. 10 NC x 1 inch

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.
