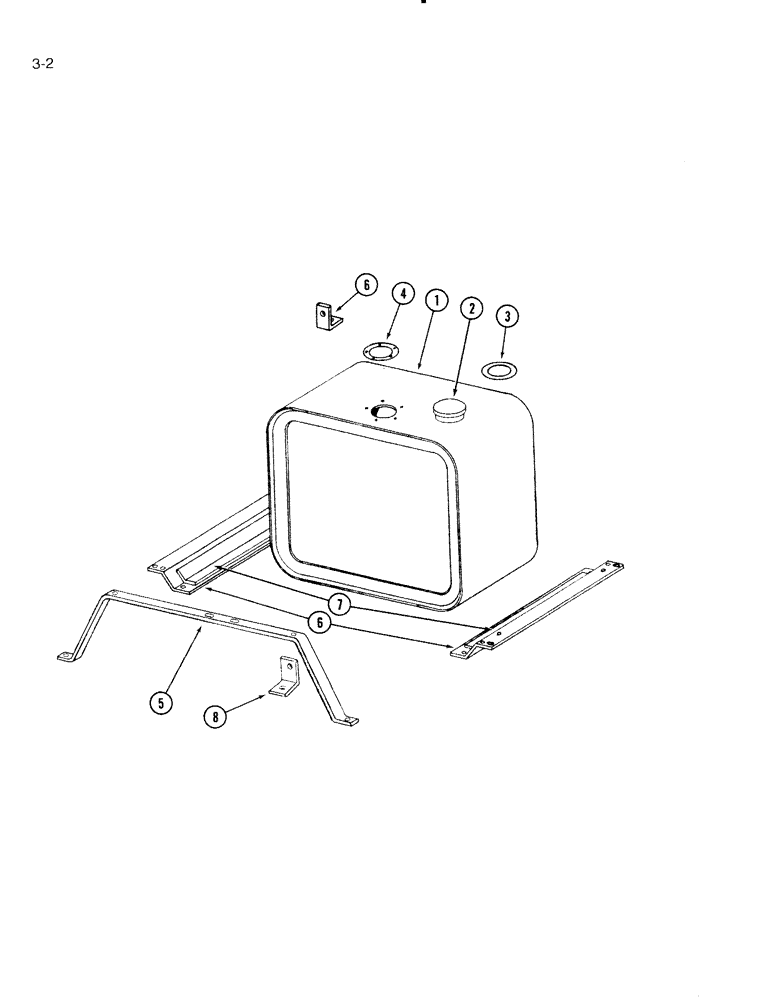

Запчасти Case IH 5000 (3-02) - FUEL TANK AND SUPPORTS (03) - FUEL SYSTEM

1

828306C93

TANK

ASSEMBLY - fuel

1шт.

221-841

PLUG

- square head pipe, 1/4-18 inch

1шт.

2

224839C92

CAP

ASSEMBLY - fuel (Replaces 361910R91)

1шт.

3

23977DD

GASKET,47.5mm ID x 65.89mm OD x 2.39mm Thk

- fuel cap

1шт.

224840C1

DECAL

- warning

1шт.

4

823541C1

GASKET

- fuel guage

1шт.

463-61012

SCREW,Hex Hd, #10-32 x 3/4"

- machine, hex head, No. 10 NF x 3/4 inch

5шт.

5

828291C3

SUPPORT

- fuel tank front

1шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 7/64 inch

2шт.

6

830028C92

SUPPORT

ASSEMBLY - fuel tank

2шт.

7

827722C1

PAD

- fuel tank

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC X 1 inch

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

8

828903C3

ANGLE

- fuel tank stop

2шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC X 1 inch

2шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC X 1-1/4 inch

2шт.

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

1шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

495-81136

WASHER,10.31mm ID x 25.4mm OD x 3.81mm Thk

- flat, 13/32 x 1 x 7/64 inch

2шт.

492-11038

LOCK WASHER,3/8"

4шт.
