Запчасти Case IH 5000 (2-94) - OIL PAN, D-239 DIESEL ENGINE (02) - ENGINE

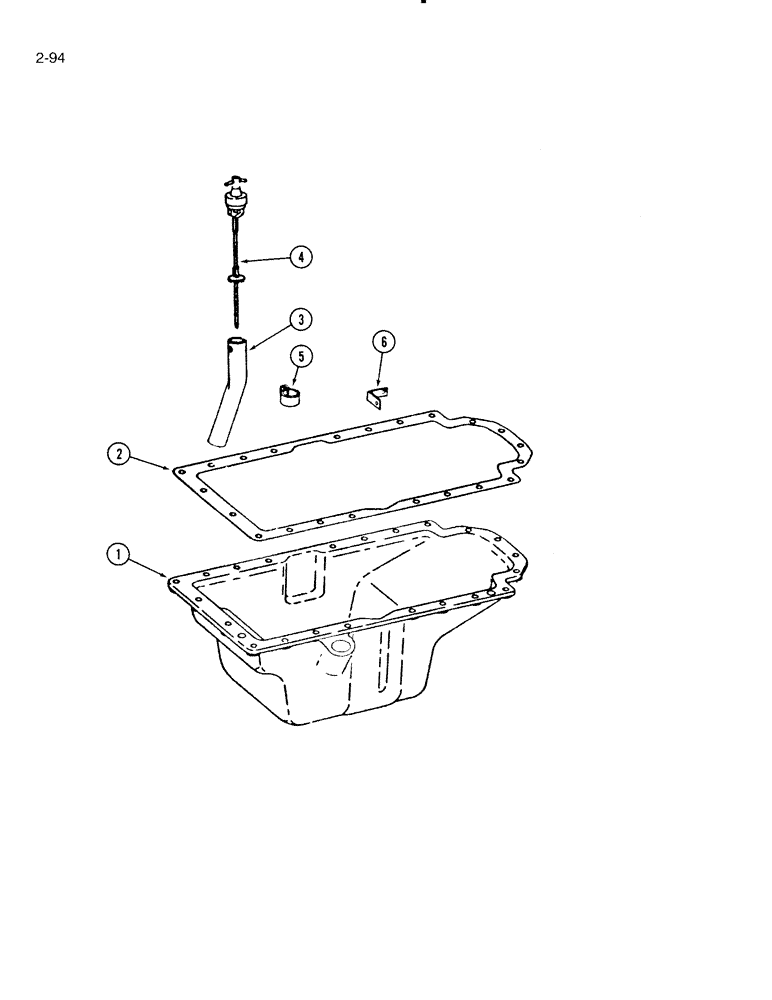

Схема запчастей Case IH 5000 - (2-94) - OIL PAN, D-239 DIESEL ENGINE (02) - ENGINE

Артикул

Название

Примечание

Количество

1

3218391R91

PAN

- oil without tube (Replaces 3132201R4)(Prior to engine serial number 020574)

1шт.

1

3218561R92

PAN

- oil with tube (Engine serial number 020574 and after)

1шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

16шт.

3055668R1

SCREW,Hex, 5/16" - 18 x 176mm

BOLT - hex, 5/16 nc x 7/8 inch

2шт.

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

- hex, 5/16 NC x 1-1/8 inch

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

22шт.

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

Lock (5/16") M8.2 ID x 16 OD x .9 Thk

4шт.

3132544R2

PLUG

- filler and drain

1шт.

933609R1

RING

RING - sealing

1шт.

2

3055161R2

OIL PAN GASKET SET

- oil pan

1шт.

3

3132202R2

PIPE

TUBE - oil fill (Prior to engine serial number 020574)

1шт.

3

REF

INSTRUCTION

TUBE - oil fill (Part of pan 3218561R2 on engine serial number 020574 and after)

1шт.

4

3132204R91

DIPSTICK

- oil (Prior to engine serial number 020574)

1шт.

4

3218554R1

ELECTRICAL GAUGE

DIPSTICK - oil (Engine serial number 020574 through 022007)

1шт.

4

3228548R1

ELECTRICAL GAUGE

DIPSTICK - oil (Engine serial number 022008 and after)

1шт.

5

3132818R1

CLAMP

- filler tube (Engine serial number 020574 and after)

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

6

3218553R1

SUPPORT

- filler tube (Engine serial number 020574 and after)

1шт.

Выбрано товаров: 20
