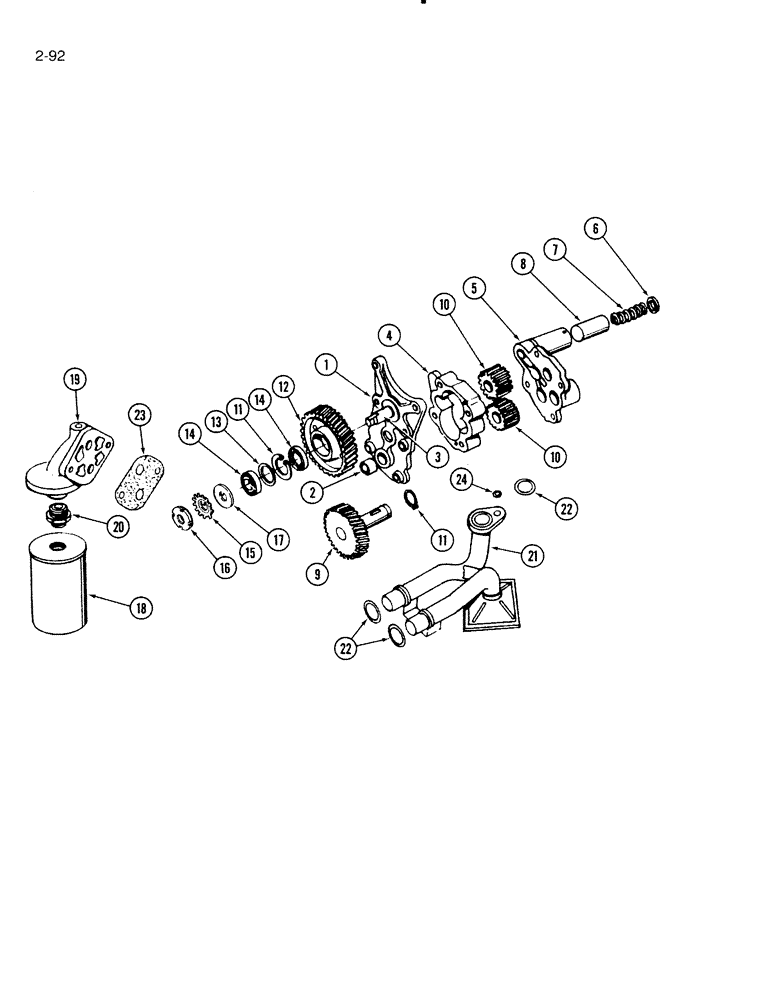

Запчасти Case IH 5000 (2-92) - OIL PUMP AND OIL FILTER, D-239 DIESEL ENGINE (02) - ENGINE

3136430R95

PUMP, ENGINE OIL

PUMP ASSEMBLY - oil

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

413-526

BOLT,Hex, 5/16" - 18 x 1-5/8", Gr 5

- hex, 5/16 NC x 1-5/8 inch

4шт.

425-105

NUT,5/16"-18, G5

4шт.

1

3136441R95

HOUSING ASSY.

CARRIER ASSEMBLY - oil pump

1шт.

932597R1

LOCK PIN,M10 x 14, Slotted

Roll M10 x 14, Slotted

3шт.

2

NSS

NOT SOLD SEPARAT

BUSHING - drive gear shaft

1шт.

3

3055297R5

AXLE

- idler gear

1шт.

4

NSS

NOT SOLD SEPARAT

CASE - oil pump gear

1шт.

5

NSS

NOT SOLD SEPARAT

COVER ASSEMBLY - oil pump

1шт.

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

1шт.

6

3139620R1

SPRING WASHER

- spring

1шт.

7

3136264R1

SPRING

- pressure relief valve

1шт.

8

3055202R2

VALVE

- piston relief

1шт.

9

3136442R91

PINION

GEAR ASSEMBLY - oil pump drive

1шт.

10

3132503R91

GEAR-SET

SET - oil pump gears

1шт.

11

800-2135

SNAP RING,M35, Int

RING - locking

2шт.

12

3055291R1

PINION

GEAR - oil pump idler

1шт.

13

3055292R1

WASHER

WASHER - flat

1шт.

14

3055294R91

TAPERED BEARING

BEARING ASSEMBLY - taper roller

2шт.

15

3055296R1

WASHER

PLATE - locking

1шт.

16

3055295R1

NUT

- shaft

1шт.

17

3228141R1

LOCK NUT

WASHER - keyed (Replaces 3055371R2)

1шт.

NLS

NO LONGER SERVICED

SCREW - socket head cap, 5/16 NC x 1 inch

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

18

398080R2

ENGINE OIL FILTER

FILTER - oil

1шт.

19

3132209R2

PEDESTAL

BASE - oil filter

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

3144513R1

SPRING WASHER

WASHER - spring disc type

2шт.

20

3136308R1

CONNECTOR, ELEC

CONNECTOR - threaded

1шт.

3051784R1

PLUG

- hex socket, 16 mm

1шт.

933155R1

SEALING RING,M16 x 20 x 1.5

1шт.

21

3132781R94

PIPE ASSY.

PIPE ASSEMBLY - oil pressure and suction

1шт.

24933R1

HEX SOC SCREW,7/16"-14 x 3 3/4"

1шт.

3218543R1

LOCK WASHER

- lock, 7/16 inch

1шт.

22

3228577R1

O-RING,3.1mm Thk x 24.5mm ID, Cl 7

- pressure and suction tube

3шт.

23

3055237R2

GASKET

- oil filter head

1шт.

24

717222R1

O-RING

- sealing

1шт.
