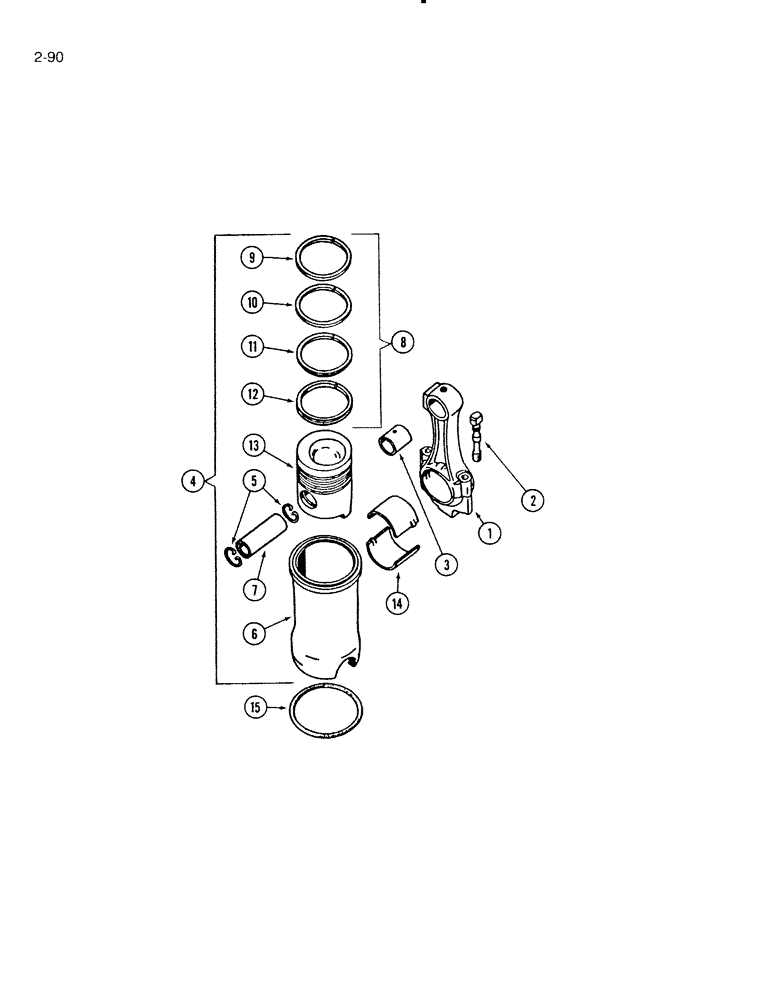

Запчасти Case IH 5000 (2-90) - CONNECTING RODS, PISTONS AND SLEEVES, D-239 DIESEL ENGINE, WITH 4 RING PISTONS (02) - ENGINE

1

3055030R24

ROD, CONNECTING

ROD ASSEMBLY - connecting (Replaces 3132996R91)

4шт.

2

3055033R1

BOLT

BOLT - connecting rod

2шт.

3055034R1

NUT

- rod bolt

2шт.

3

3132018R2

BUSHING,35.34mm ID x 39.84mm OD x 34mm L

- piston pin (Engine must be equipped with cylinder head gasket 3228362R1)

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON ASSEMBLY - engine with sleeve, 4 ring piston (See note)

4шт.

5

933327R1

SNAP RING,M36, Int

RING - retaining

2шт.

6

3139592R4

SLEEVE CYLINDER

SLEEVE - cylinder

1шт.

7

3055217R2

PISTON PIN

PIN - piston

1шт.

8

3059263R93

RING, SET

SET- piston ring, 4 ring piston

4шт.

8

3138670R92

PISTON RING SET

SET - piston ring, 4 ring piston, chrome

4шт.

9

NSS

NOT SOLD SEPARAT

RING - compression, first ring

1шт.

10

NSS

NOT SOLD SEPARAT

RING - compression, second ring

1шт.

11

NSS

NOT SOLD SEPARAT

RING - compression, third ring

1шт.

12

NSS

NOT SOLD SEPARAT

RING - oil

1шт.

13

NSS

NOT SOLD SEPARAT

PISTON - engine, 4 ring (See Note)

1шт.

14

3055351R91

BEARING ASSY

BEARING - connecting rod, standard size

4шт.

14

3056834R11

BEARING ASSY

BEARING - connecting rod, 0.25 mm undersize

4шт.

14

3056879R11

BEARING ASSY

BEARING - connecting rod, 0.50 mm undersize

4шт.

14

3055781R11

BEARING ASSY

- connecting rod, 0.75 mm undersize

4шт.

15

3228348R1

RING,4.75mm Thk x 109.16mm ID

- cylinder sleeve (Replaces 3218603R1) (Engine serial number 21187 and after)

4шт.

15

3228344R1

SEALING RING,5mm Thk x 110mm ID

RING - cylinder sleeve (Prior to engine serial number 21187)

4шт.

3218538R1

SHIM

- cylinder sleeve, 0.05 mm thick

1шт.

3218539R1

SHIM

- cylinder sleeve, 0.1 mm thick

1шт.

3218540R1

SHIM,112.06mm ID x 118.6mm OD x 0.25mm Thk

- cylinder sleeve, 0.25 mm thick

1шт.

3218541R1

SHIM

- cylinder sleeve, 0.50 mm thick

1шт.

3218542R1

SHIM

- cylinder sleeve, 0.8 mm thick

1шт.
