Запчасти Case IH 5000 (2-82) - CRANKCASE ASSEMBLY, D-239 DIESEL ENGINE (02) - ENGINE

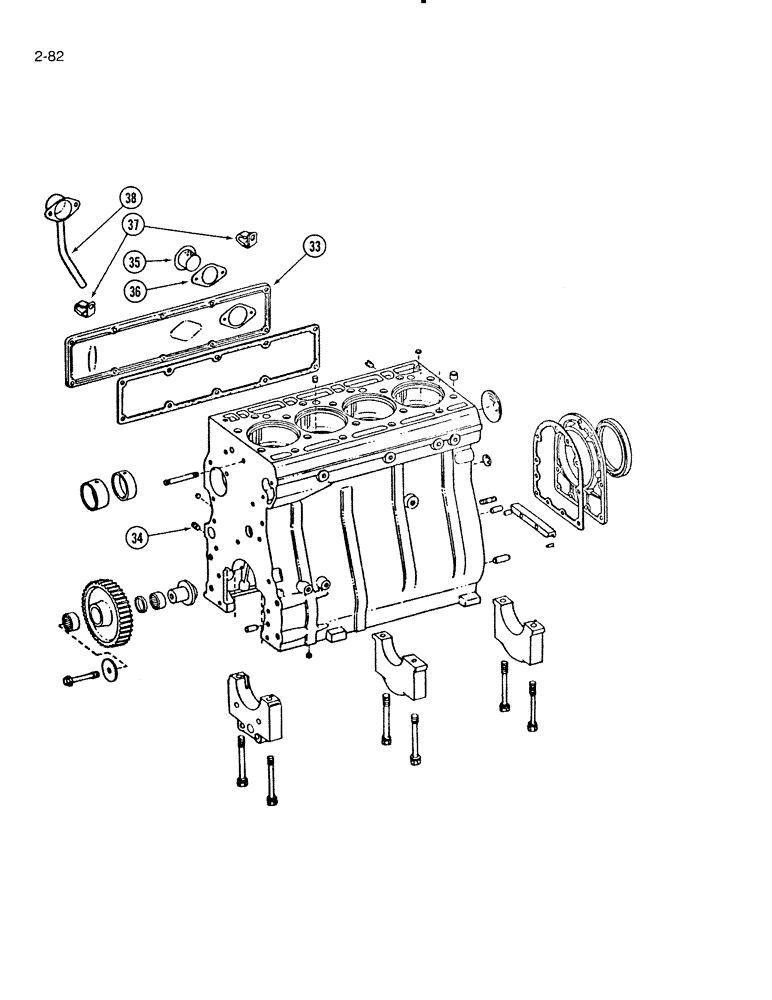

Схема запчастей Case IH 5000 - (2-82) - CRANKCASE ASSEMBLY, D-239 DIESEL ENGINE (02) - ENGINE

Артикул

Название

Примечание

Количество

33

3132155R2

COVER

- crankcase side (Engine serial number 22008 and after)

1шт.

33

3055314R21

COVER

- crankcase side (Prior to engine serial number 22008)

1шт.

34

221-841

PLUG

- slotted, headless, 1/4 inch PT

3шт.

35

3055324R92

HYDRAULIC OIL FILTER

ELEMENT - breather, oil (Prior to engine serial number 22008)

1шт.

36

3138639R1

GASKET

- breather (Replaces 3055359R1)(Prior to engine serial number 22008)

1шт.

37

365584R1

CLIP

- cable

2шт.

38

3055319R11

BREATHER

ASSEMBLY - crankcase (Prior to engine serial number 22008)

1шт.

3144434R91

CRANKSHAFT BEARING

KIT - service, rear bearing cap

1шт.

NSS

NOT SOLD SEPARAT

CAP - crankcase bearing rear

1шт.

3138885R1

SCREW

BOLT - crankshaft bearing cap (Replaces 3136320R3)

2шт.

3144440R91

BEARING ASSY

KIT - service, center bearing cap

3шт.

NSS

NOT SOLD SEPARAT

CAP - crankshaft bearing interediate

1шт.

3138885R1

SCREW

BOLT - crankshaft bearing cap (Replaces 3136320R3)

2шт.

3218538R1

SHIM

- cylinder sleeve, 0.05 mm thick

1шт.

Выбрано товаров: 14
