Запчасти Case IH 5000 (2-80) - CRANKCASE ASSEMBLY, D-239 DIESEL ENGINE (02) - ENGINE

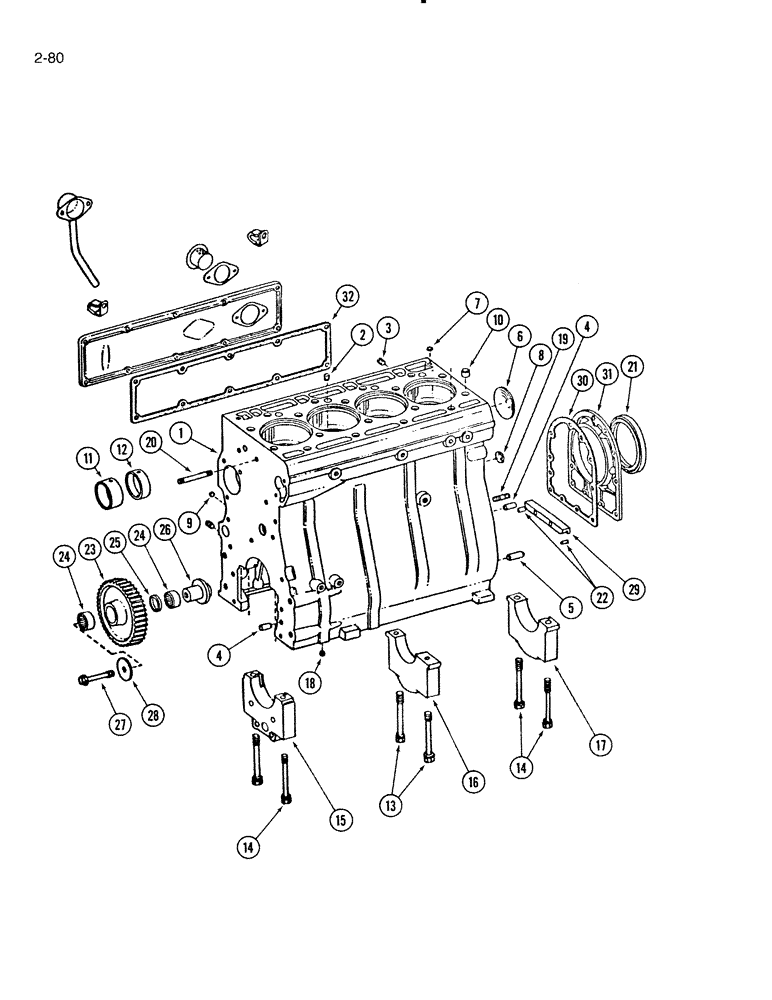

Схема запчастей Case IH 5000 - (2-80) - CRANKCASE ASSEMBLY, D-239 DIESEL ENGINE (02) - ENGINE

Артикул

Название

Примечание

Количество

1

3228620R92

CRANKCASE

ASSEMBLY - engine (Replaces 3132154R91 and 3055611R94)

1шт.

2

221-849

PLUG,Hex Soc, 1/8"-27

- slotted, headless, 1/8 inch PT

3шт.

3

221-841

PLUG

- slotted, headless, 1/4 inch PT

4шт.

4

141242

DOWEL

PIN - dowel, 3/8 x 7/8 inch

4шт.

5

141284

PIN,25.4mm OD x 31.75mm L

Pin 1/2" x 1 1/8"

2шт.

6

41-3044

PLUG,Exp, 2 3/4"

- expansion, 2-3/4 inch

1шт.

7

3136004R1

COVER

PLUG - cup, 10 mm (Replaces 933536R1)

1шт.

8

30591R1

PLUG,M25, Tapered

- cup

2шт.

9

3136004R1

COVER

PLUG - cup, 10 mm

1шт.

10

3055007R1

BUSHING

- dowel (Replaces 3218400R1)

2шт.

11

3055008R2

CRANKSHAFT BEARING,57.56mm ID x 63.1mm OD x 30mm W

BEARING - camshaft front

1шт.

12

1806820C1

CAMSHAFT BEARING,57.98mm ID x 63mm OD x 18mm W

BEARING - camshaft (Replaces 3055009R1)

4шт.

13

3138885R1

SCREW

BOLT - crankshaft bearing cap, 9/16-12 x 4-1/8 inch (Replaces 3055667R1 and 3136320R3)

2шт.

14

3138580R1

BOLT,Hex Flg, 9/16" - 12 x 120.70mm, 12.9

- Crankshaft bearing cap, 9/16-12 x 4-3/4 inch (Use with crankcase assembly 3132154R91 and 3055611R94)

8шт.

14

3138885R1

SCREW

BOLT - crankshaft bearing cap 9/16-12 x 4-1/8 inch (Replaces 3136320R3)((Used with crankcase assembly 3136316R13)

8шт.

15

NSS

NOT SOLD SEPARAT

CAP - crankshaft bearing front (Order crankcase assembly 3136316R13)

1шт.

16

NSS

NOT SOLD SEPARAT

CAP - crankshaft bearing intermediate (Order kit 3144440R91)

3шт.

17

NSS

NOT SOLD SEPARAT

CAP - crankshaft bearing rear (Order kit 3144434R91)

1шт.

18

3055173R1

PLUG

- crankcase

1шт.

19

3055270R1

STUD

- rear

1шт.

20

3055065R1

STUD

- front

1шт.

21

3138701R91

SEAL

SEAL - oil, rear (Replaces 3055310R92)

1шт.

22

714868R1

SEALING STRIP

- sealing

2шт.

23

3055043R3

PINION

GEAR - idler, 68 teeth

1шт.

24

3058816R91

NEEDLE BEARING CAGE,35mm ID x 42mm OD x 17.8mm W

BEARING - needle

2шт.

25

787656R1

SPACER,35.5mm ID x 41mm OD x 4mm L

RING - spacer

1шт.

26

3055373R1

CARRIER

- gear, idler

1шт.

27

3055374R2

BOLT

BOLT - gear carrier

1шт.

28

3055372R1

DISC

RING - wear, gear

1шт.

29

3055214R1

SUPPORT

STRIP - sealing, crankcase (Replaces 3132020R1)

1шт.

30

3055215R2

GASKET

- retainer

1шт.

31

3055216R1

RETAINER

- seal

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

8шт.

425-105

NUT,5/16"-18, G5

1шт.

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

Lock (5/16") M8.2 ID x 16 OD x .9 Thk

9шт.

32

3055393R4

GASKET,1.5mm Thk

- side cover

1шт.

Выбрано товаров: 36
