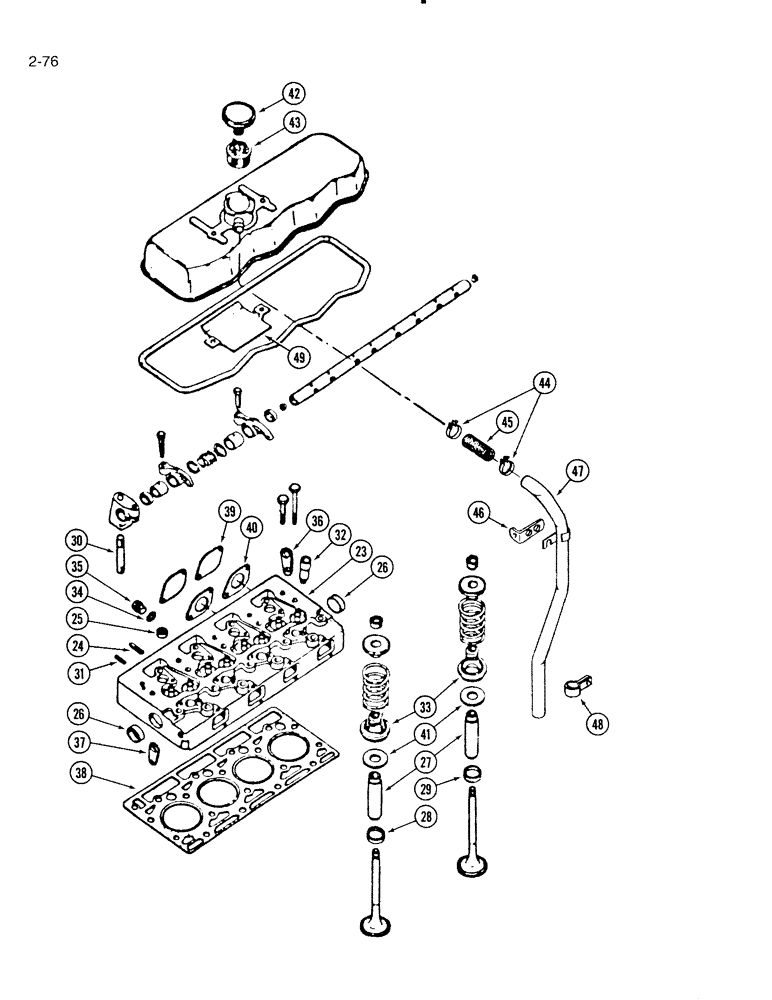

Запчасти Case IH 5000 (2-76) - CYLINDER HEAD, D-239 DIESEL ENGINE (02) - ENGINE

23

3055367R97

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder

1шт.

24

3228189R1

STUD

- exhaust manifold

8шт.

25

933573R1

PLUG,M32, Tapered

- expansion

4шт.

26

934003R1

PLUG,M52, Conical

- expansion, cup

2шт.

27

3055022R2

VALVE GUIDE

GUIDE - valve stem

8шт.

28

3132362R1

VALVE SEAT

INSERT - seat, exhaust valve, 0.15 mm oversize

4шт.

28

3132361R1

INSERT

- seat, exhaust valve, 0.40 mm oversize

4шт.

29

3132362R1

VALVE SEAT

INSERT - seat, intake valve, 0.15 mm oversize

4шт.

30

3055220R1

STUD,1/2" - 20 x 3.18"

- rocker shaft bracket

5шт.

31

3055221R1

STUD

- water collecting pipe

8шт.

32

3055344R1

SLEEVE

INSERT - nozzle holder

4шт.

3218399R91

GASKET KIT

SEAL KIT - valve stem

2шт.

33

NSS

NOT SOLD SEPARAT

SEAL - valve

6шт.

NSS

NOT SOLD SEPARAT

SLEEVE - valve seal

1шт.

34

718743R1

SEALING RING,M10 x 16 x 1

Ring M10 x 16 x 1

1шт.

35

934259R1

PLUG,Hex, M10 x 1

1шт.

36

3055369R1

PLATE

SHACKLE - engine mounting right

1шт.

271604

BOLT,Hex, 3/4" - 10 x 1 1/8", Gr 5

- hex, 3/4 NC x 1-1/8 inch, grade 5

1шт.

37

3055370R1

STIRRUP

SHACKLE - engine mounting, front

1шт.

NLS

NO LONGER SERVICED

- hex, 3/4 NC x 1-1/8 inch, grade 5

1шт.

38

3228362R2

CYLINDER HEAD GASKET

GASKET - cylinder head (Replaces 3138959R3)

1шт.

39

3132721R1

COVER

PLATE - cover

2шт.

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

40

3055306R2

GASKET

- cover

2шт.

41

3218069R1

SPACER

- valve spring (Order Roto Cap 3055059R91)

8шт.

42

3132205R1

COVER

CAP - oil fill (Prior to engine serial number 022008)

1шт.

42

3136337R91

COVER

CAP - oil fill (Engine serial number 022008 and after)

1шт.

43

3136336R1

FILTER

INSERT - strainer, breather (Engine serial number 022008 and after

1шт.

44

755023R91

STRAP

CLAMP - hose (Engine serial number 022008 and after)

2шт.

45

3132186R1

HOSE,25.00 mm ID x 60.00 mm

- Breather (Engine S/N 022008 and after) 25.00 mm ID x 60.00 mm

1шт.

46

3228111R1

HOLDER

SUPPORT - breather (Engine serial number 022008 and after)

1шт.

179900

BOLT,Hex, 9/16" - 12 x 3/4", Gr 5

- hex, 9/16 NC x 3/4 inch

1шт.

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

47

3228333R91

TUBE

- breather (Engine serial number 022008 and after)

1шт.

48

3228112R1

CLAMP

- tube (Engine serial number 022008 and after)

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

425-105

NUT,5/16"-18, G5

1шт.

49

3136401R3

SHEET

PLATE - screening

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 3/8 inch

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
