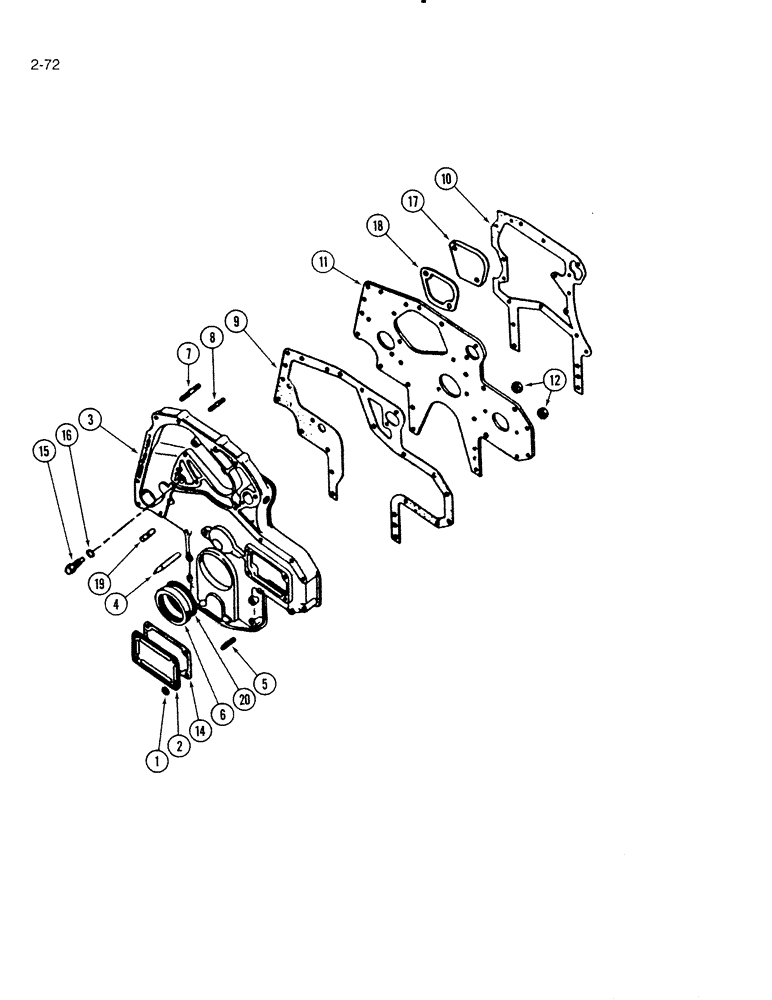

Запчасти Case IH 5000 (2-72) - FRONT GEAR COVER, D-239 DIESEL ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
95-81067
WASHER,0.34" ID x 0.56" OD x 0.06" Thk
- flat, 11/32 x 9/16 x 1/16 inch
4шт.
2
3055140R1
COVER
- injection pump
1шт.
425-105
NUT,5/16"-18, G5
4шт.
3
3056853R61
COVER
ASSEMBLY - front
1шт.
4
3056855R1
INDICATOR
POINTER - timing
1шт.
5
3055242R1
STUD
- front engine cover
4шт.
3138972R1
PLUG
- expansion
1шт.
326-532
BOLT,Hex, 5/16" - 18 x 2", Gr 8
- hex, 5/16 NC x 1-7/8 inch
2шт.
413-532
BOLT,Hex, 5/16" - 18 x 2", Gr 5
5шт.
413-536
BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5
- hex, 5/16 NC x 2-1/4 inch
2шт.
425-105
NUT,5/16"-18, G5
4шт.
3218395R1
BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk
Lock (5/16") M8.2 ID x 16 OD x .9 Thk
7шт.
413-514
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5
1шт.
492-11038
LOCK WASHER,3/8"
3шт.
221-844
PLUG,Hex Soc, 1/2"-14
- front cover Hex Soc, 1/2"-14
1шт.
6
3228133R93
SEAL KIT
SEAL - crankcase front oil
1шт.
7
3055244R1
STUD
- front cover
1шт.
8
3055243R1
STUD
- front cover
3шт.
9
3144072R4
GASKET
- front cover
1шт.
10
3055239R3
GASKET
- plate
1шт.
11
3055064R11
PLATE
ASSEMBLY - crankcase front cover
1шт.
3055065R1
STUD
- front
2шт.
12
425-105
NUT,5/16"-18, G5
2шт.
14
3138640R1
GASKET
- injection pump cover
1шт.
15
933223R1
PLUG,Hex, M18 x 1.5
- front cover
1шт.
16
3051337R1
SEALING RING,M18 x 24mm OD x 1.5mm Thk
Plug M18 x 24 x 1.5
1шт.
17
3055142R1
COVER
- hydraulic pump
1шт.
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
- hex, 3/8 NC x 1 inch
1шт.
444641
BOLT - hex, 3/8 NC x 3-5/8 inch
1шт.
425-106
NUT,3/8"-16, Cl 5
2шт.
492-11038
LOCK WASHER,3/8"
2шт.
18
3055143R1
GASKET
- hydraulic pump cover
1шт.
19
3136275R1
STUD - front cover
1шт.
20
713778R1
O-RING,3mm Thk x 55mm ID
- seal
1шт.
Выбрано товаров: 38
