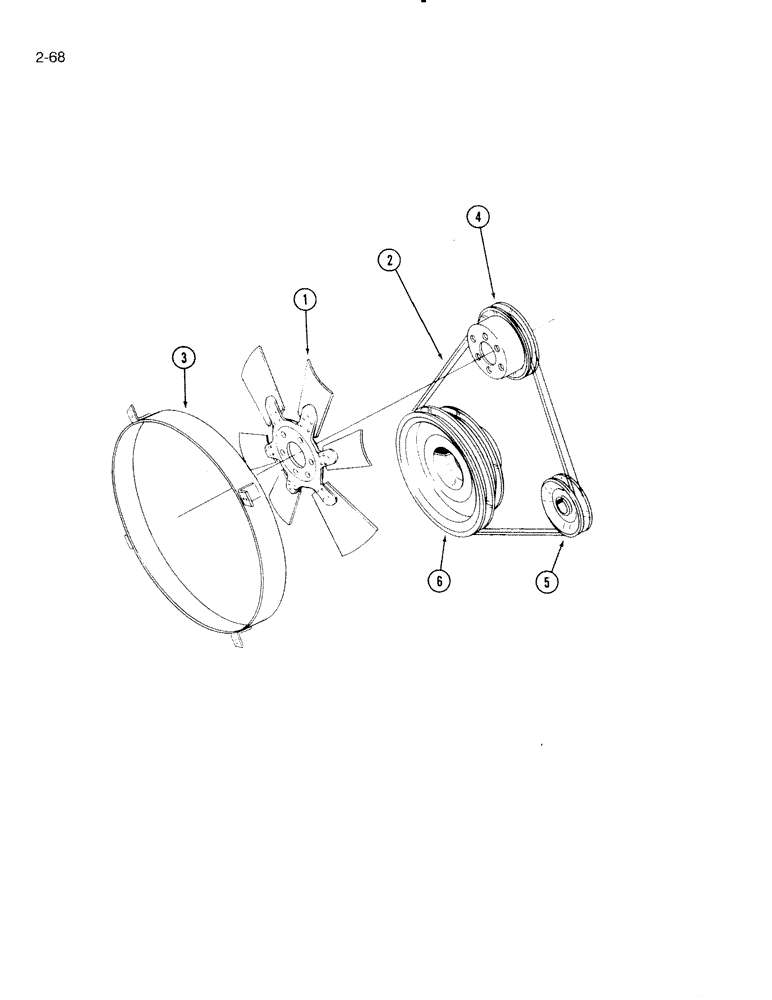

Запчасти Case IH 5000 (2-68) - FAN AND FAN BELT, D-239 DIESEL ENGINE (02) - ENGINE

1

84477C1

FAN

- radiator (Replaces 829024C1)

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

6шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

2

280210C2

BELT,53.50" L

V-BELT , Fan 53.50" L

1шт.

3

828888C1

SHROUD

ASSEMBLY - fan

1шт.

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

4шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

4

3055178R1

PULLEY

- fan

1шт.

5

378349R1

PULLEY

- alternator

1шт.

6

3138835R1

PULLEY

- accessory drive

1шт.
