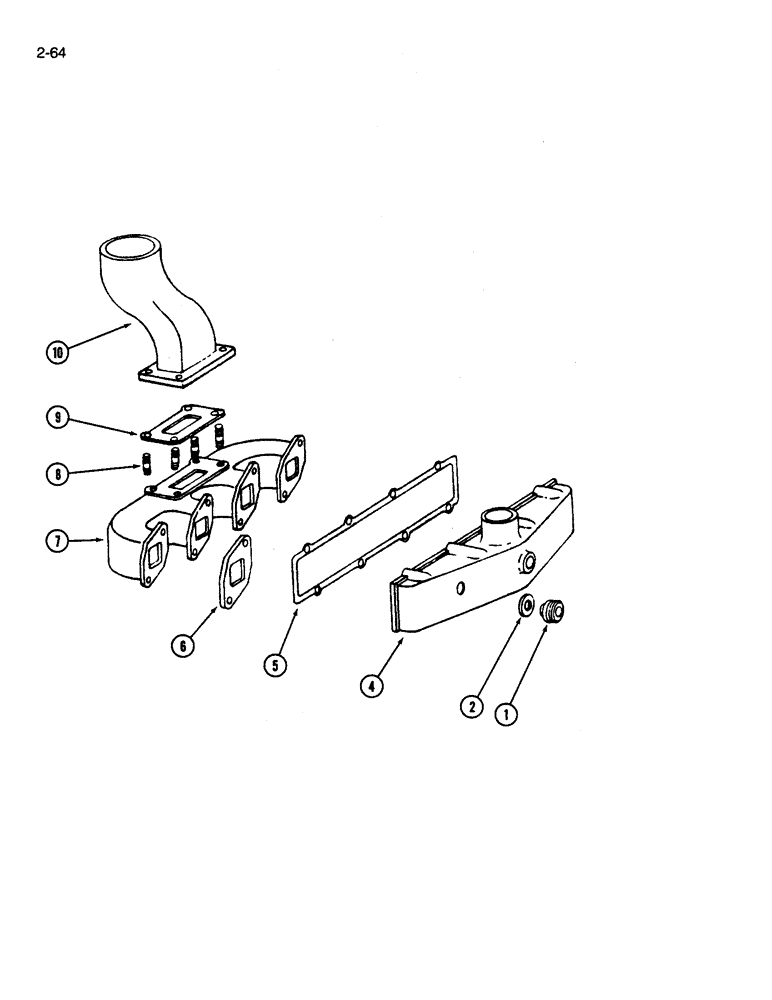

Запчасти Case IH 5000 (2-64) - MANIFOLDS, VERTICAL EXHAUST, D-239 DIESEL ENGINE (02) - ENGINE

1

3132229R1

PLUG - manifold

1шт.

2

933945R1

SEALING RING,M23 x 28 x 2.5

RING - packing

1шт.

4

3055507R5

MANIFOLD

- intake

1шт.

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

8шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

5

3055398R2

MANIFOLD GASKET

- intake manifold

1шт.

6

3132434R1

MANIFOLD GASKET,0.5mm Thk

- exhaust manifold

4шт.

7

3136066R12

MANIFOLD ASSY

MANIFOLD - exhaust

1шт.

8

3228189R1

STUD

- exhaust manifold

4шт.

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

8шт.

142619H

WASHER

- flat

8шт.

9

3136248R1

MANIFOLD GASKET,0.5mm Thk

- exhaust elbow

1шт.

10

3136668R1

ELBOW

- exhaust

1шт.

425-105

NUT,5/16"-18, G5

4шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.
