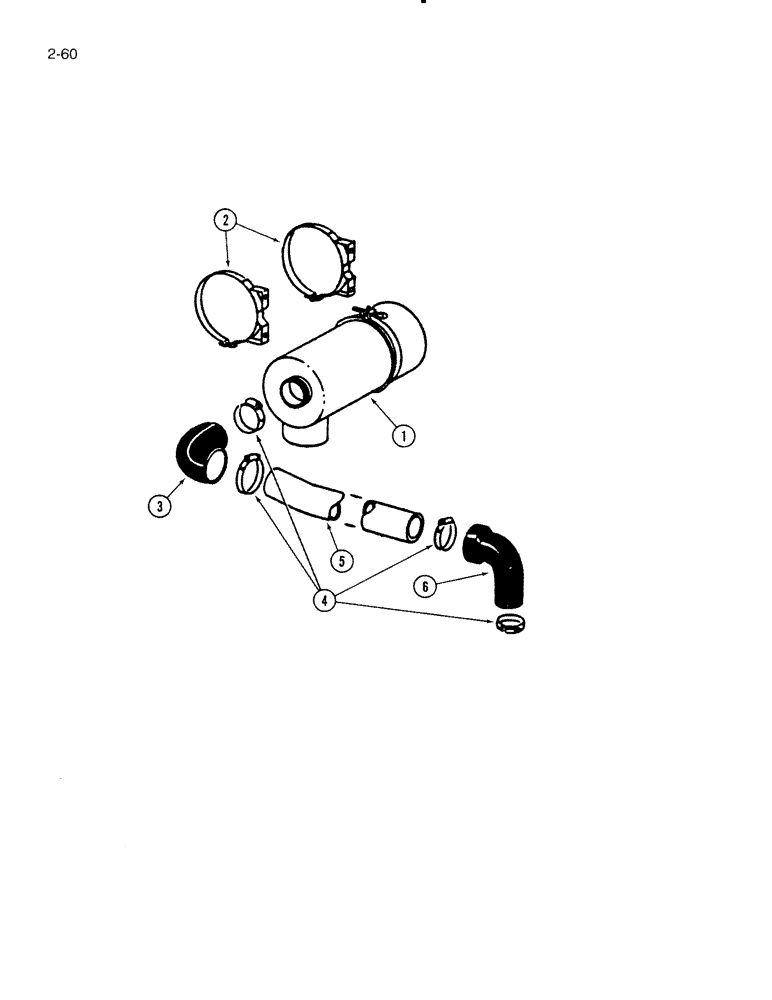

Запчасти Case IH 5000 (2-60) - AIR CLEANER SYSTEM, D-239 DIESEL ENGINE (02) - ENGINE

1

REF

INSTRUCTION

CLEANER ASSEMBLY - air (See Page 2-9)

1шт.

2

103760H1

CLAMP

- air cleaner

2шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

- flat, 7/16 x 1 x 5/64 inch

4шт.

495-81136

WASHER,10.31mm ID x 25.4mm OD x 3.81mm Thk

- flat, 13/32 x 1 x 7/64 inch

2шт.

3

827876C1

INTAKE AIR HOSE,2.50" ID x 5.00", SAE 20R4 CLASS SC OR SAE 20R4 CLASS R

HOSE - air cleaner

1шт.

4

214-1448

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

CLAMP - hose

4шт.

5

828607C1

TUBE,2.5" OD, 26.7, 5" Length

- air cleaner

1шт.

6

828608C2

INTAKE AIR HOSE,2.50" ID, 2.75" ID x 8.30", SAE 20R4

HOSE - intake manifold

1шт.
