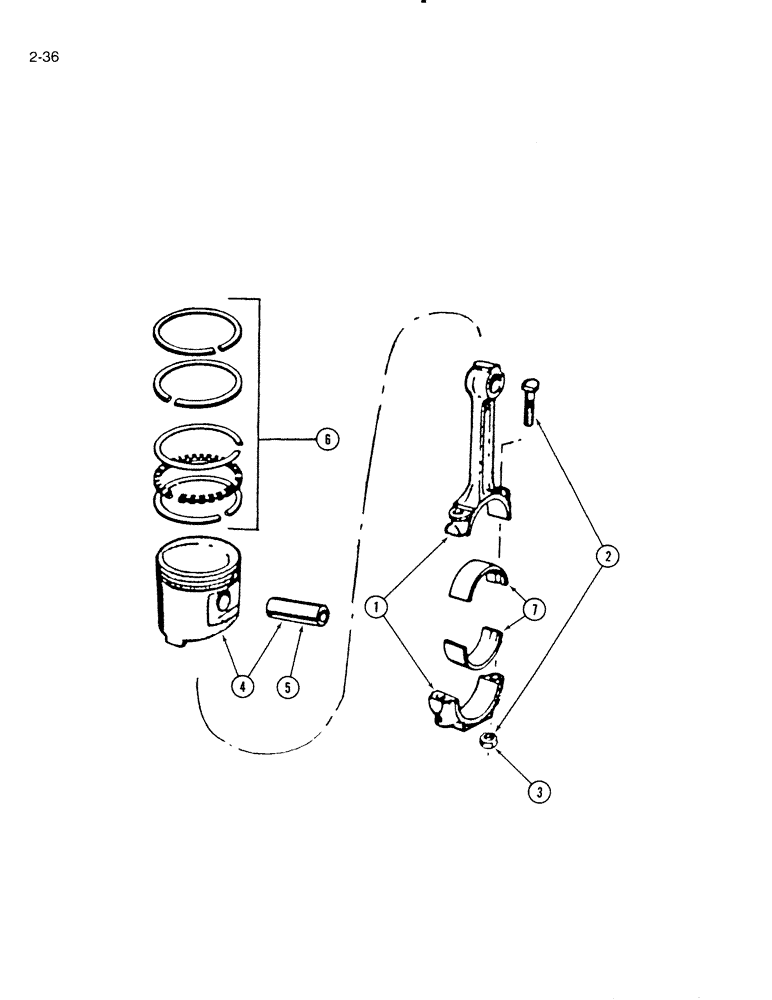

Запчасти Case IH 5000 (2-36) - CONNECTING RODS AND PISTONS, C-232 AND C-258 GAS ENGINE (02) - ENGINE

1

421223C91

ROD ASSEMBLY - connecting with cap and bolts (C-232 engine)

6шт.

1

827660C91

ROD

ASSEMBLY - connecting with cap and bolts (C-258 engine) (Replaces 387046C91 and 1275749C1)

6шт.

2

387047C91

BOLT - connecting rod cap with nut (Used with connecting rods 421223C91, 387046C91 and 1275749C1)

12шт.

2

827663C91

BOLT

- connecting rod cap with nut (Used with connecting rod 827660C91)

12шт.

3

387048C1

NUT - connecting rod bolt (Used with connecting rods 421223C91, 387046C91 and 1275749C1)

12шт.

3

827680C1

NUT

- connecting rod bolt (Used with connecting rod 827660C91)

12шт.

4

827475C91

PISTON

- engine with pin, standard (C-232 engine)

6шт.

4

827476C91

PISTON - engine with pin, 0.010 inch oversize (C-232 engine)

6шт.

4

824384C91

PISTON

- engine with pin, standard (C-258 engine)(P.I.N. 6005 through 7805)

6шт.

4

824386C91

PISTON

- engine with pin, 0.010 inch oversize (C-258 engine) (P.I.N. 6005 through 7805)

6шт.

4

1275742C1

PISTON

- engine with pin, standard (C-258 engine) (P.I.N. 7806 through 10008)(P.I.N. 372001 and after)

6шт.

4

1275743C1

PISTON

- engine with pin, 0.010 inch oversize (C-258 engine) (P.I.N. 7806 through 10008)(P.I.N. 372001 and after)

6шт.

5

387053C1

PIN SET - piston, standard (Set of 6)(C-232 engine)(C-258 engine prior to P.I.N. 7806)

1шт.

5

387054C1

PIN SET - piston, 0.003 inch oversize (Set of 6)(C-232 engine) (C-258 engine prior to P.I.N. 7806)

1шт.

5

387055C1

PIN SET - piston, 0.005 inch oversize (Set OF 6)(C-232 engine) (C-258 engine prior to P.I.N 7806)

1шт.

5

A189384

PIN

- piston, standard (Replaces pin set 1275744C1) (C-258 engine)(P.I.N.7806 through 10008)(P.I.N. 372001 and after)

6шт.

5

A189386

PIN

- piston, 0.003 inch oversize (Replaces pin set 1275745C1) (C-258 engine)(P.I.N. 7806 through 10008)(P.I.N.372001 and after)

6шт.

5

A189387

PIN

- piston, 0.005 inch oversize (Replaces pin set 1275746C1) (C-258 engine)(P.I.N. 7806 through 10008)(P.I.N. 372001 and after)

6шт.

6

387058C92

PISTON RING SET

RING KIT - piston, standard

6шт.

6

387059C92

PISTON RING SET

RING KIT - piston, 0.010 inch oversize

6шт.

7

387040C2

CRANKSHAFT BEARING

ASSEMBLY - connecting rod, standard

6шт.

7

387041C2

BEARING

ASSEMBLY - connecting rod, 0.010 inch oversize

6шт.
