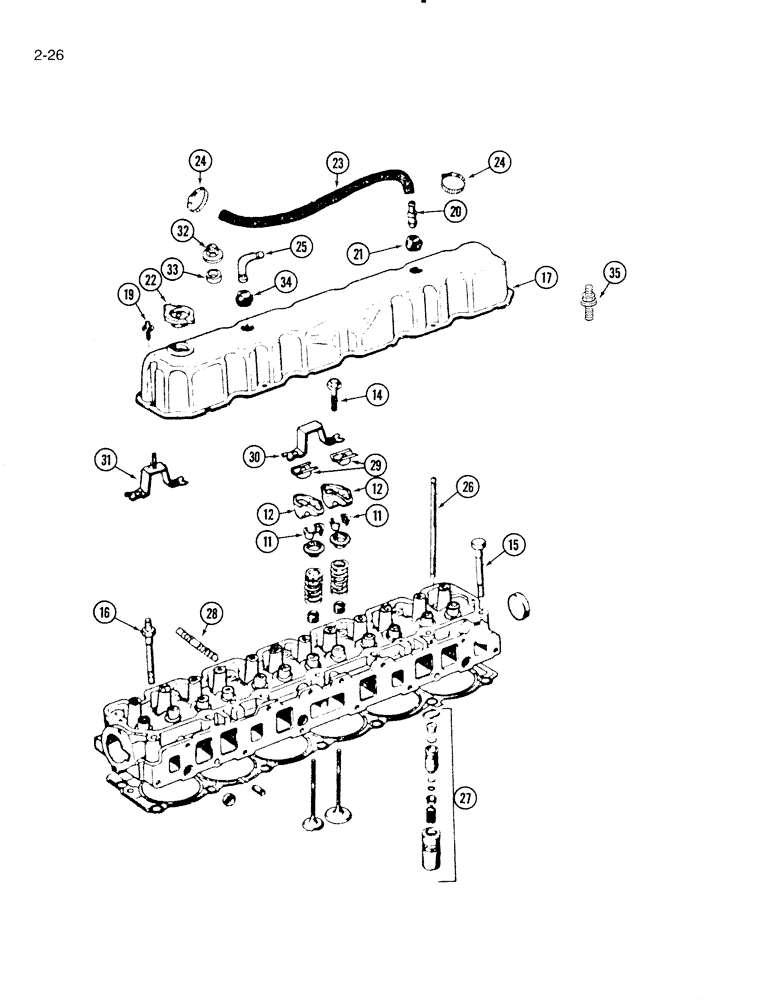

Запчасти Case IH 5000 (2-26) - CYLINDER HEAD, C-258 ENGINE P.I.N. 9001 THROUGH 10008, C-258 ENGINE P.I.N. 372001 AND AFTER (02) - ENGINE

11

41339D

KEY

LOCK - valve spring retainer (Replaces 387108C1)

24шт.

12

1347625C1

ARM

- valve rocker

12шт.

14

436166C1

BOLT

- pivot to cylinder head

12шт.

15

1347620C1

FLANGE BOLT,Hex, 1/2" - 13 x 4.52", Gr 8

BOLT - cylinder head, 4-1/2 inch

2шт.

15

1347617C1

FLANGE BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 8

BOLT - cylinder head, 3-3/4 inch

7шт.

16

1347618C1

FLANGE BOLT,Hex, 1/2" - 13 x 4.52", Gr 8, W/ 1" Stud

BOLT - cylinder head, 4-1/2 inch with 1 inch stud

1шт.

16

1347619C1

FLANGE BOLT,Hex, 1/2" - 13 x 4.52", Gr 8, W/ 1.40" Stud

BOLT - cylinder head, 4-1/2 inch with 1-3/8 inch stud

1шт.

17

827090C1

COVER

ASSEMBLY - valve rocker arm (P.I.N. 9001 through 10008)

1шт.

17

1347611C1

COVER

ASSEMBLY - valve rocker arm (P.I.N. 372001 and after)

1шт.

19

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

SCREW - slotted truss, 1/4 NC x 1/2 inch (P.I.N. 9001 through 10008)

7шт.

19

187797C1

BOLT,Hex Serr Flg, 1/4" - 20 x 1"

- hex flange, 1/4 NC x 1 inch (P.I.N. 372001 and after)

12шт.

20

827331C1

VALVE

- cylinder block vent

1шт.

21

827115C1

GROMMET

- vent valve (P.I.N. 9001 through 10008)(P.I.N. 327001 through 372256)

1шт.

21

1347644C1

GROMMET

- vent valve (P.I.N. 372257 and after)

1шт.

22

1347624C1

CAP

- oil filler

1шт.

23

824575C1

HOSE

- vent valve to manifold nipple

1шт.

24

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP, HOSE, , Adj. #06, .44/.78 Type F Worm

2шт.

25

827278C1

ELBOW

- cover to air cleaner hose

1шт.

26

1275741C1

ROD

- push

12шт.

27

433562C1

TAPPET

ASSEMBLY - valve

12шт.

28

387113C1

STUD

- manifold to cylinder head (Replaces 387130C1)

2шт.

29

824525C1

PIVOT

- valve rocker arm

12шт.

30

824533C1

SUPPORT

CHANNEL - pivot bridge

4шт.

31

827074C1

CHANNEL

- pivot bridge with stud

2шт.

32

1347612C1

NUT

- flange

1шт.

33

827103C1

SEAL

- cover mounting

2шт.

34

446531C1

RUBBER

GROMMET - elbow (Replaces 387150C1)

1шт.

35

1347613C1

FLANGE BOLT,Hex, 1/4" - 20 x 1", Gr 5, W/ 0.60" Stud

BOLT - flanged,stud

1шт.

306132C1

CABLE TIE,14.5" L

STRAP - tie, nylon, 14 inch

2шт.
