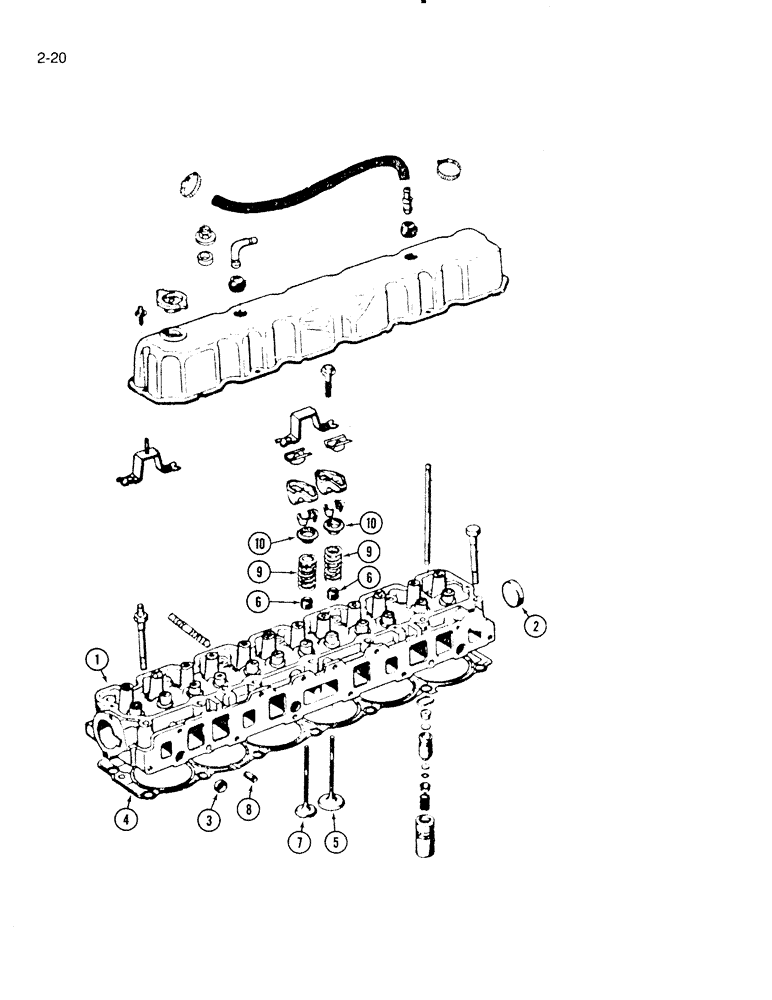

Запчасти Case IH 5000 (2-20) - CYLINDER HEAD, C-258 ENGINE P.I.N. 6005 THROUGH 8264 (02) - ENGINE

1

827034C91

HEAD

ASSEMBLY - cylinder (P.I.N. 6005 through 6950)

1шт.

1

827688C91

HEAD

ASSEMBLY - cylinder (P.I.N. 6951 through 7805)

1шт.

1

1275756C91

HEAD ASSY.

HEAD ASSEMBLY - cylinder (P.I.N. 7806 through 8264)

1шт.

2

387012C1

PLUG

- cup, 2 inch

1шт.

3

373553R1

PLUG,Cup, 7/8"

- cup, 7/8 inch (Replaces 387094C1)

3шт.

4

827081C1

GASKET

- cylinder head

1шт.

5

NSS

NOT SOLD SEPARAT

VALVE - intake,standard (Without identification mark or with identification mark T)(Prior to engine serial number 012A05) (For service order valve 827051C1 and retainer 458312C1)

6шт.

5

827051C1

VALVE

- intake, standard (With identification mark 68 or T8) (Engine serial number 012A05 and after)

6шт.

5

827083C1

VALVE - intake, 0.003 inch oversize (With identification mark 3)

6шт.

5

827084C1

VALVE

- intake, 0.015 inch oversize (With identification mark 15)

6шт.

6

445370C1

SEAL

DEFLECTOR - valve stem oil

12шт.

7

NSS

NOT SOLD SEPARAT

VALVE - exhaust, standard (Without identification mark or with identification mark T)(Prior to engine serial number 012A05) (For service order valve 827065C1 and retainer 827066C1)

6шт.

7

827065C1

VALVE

- exhaust, standard (With identification mark 67 or T7) (Engine serial number 012A05 and after)

6шт.

7

827086C1

VALVE

- exhaust, 0.003 inch oversize (With identification mark 3)

6шт.

7

827087C1

VALVE

- exhaust, 0.015 inch oversize (With identification mark 15)

6шт.

8

387110C1

PIN - head to manifold dowel

2шт.

9

824535C1

SPRING

- valve

12шт.

10

827066C1

RING, SNAP

RETAINER - valve spring (Prior to engine serial number 012A05)

12шт.

10

458312C1

RETAINER

- valve spring (Engine serial number 012A05 and after)

12шт.
