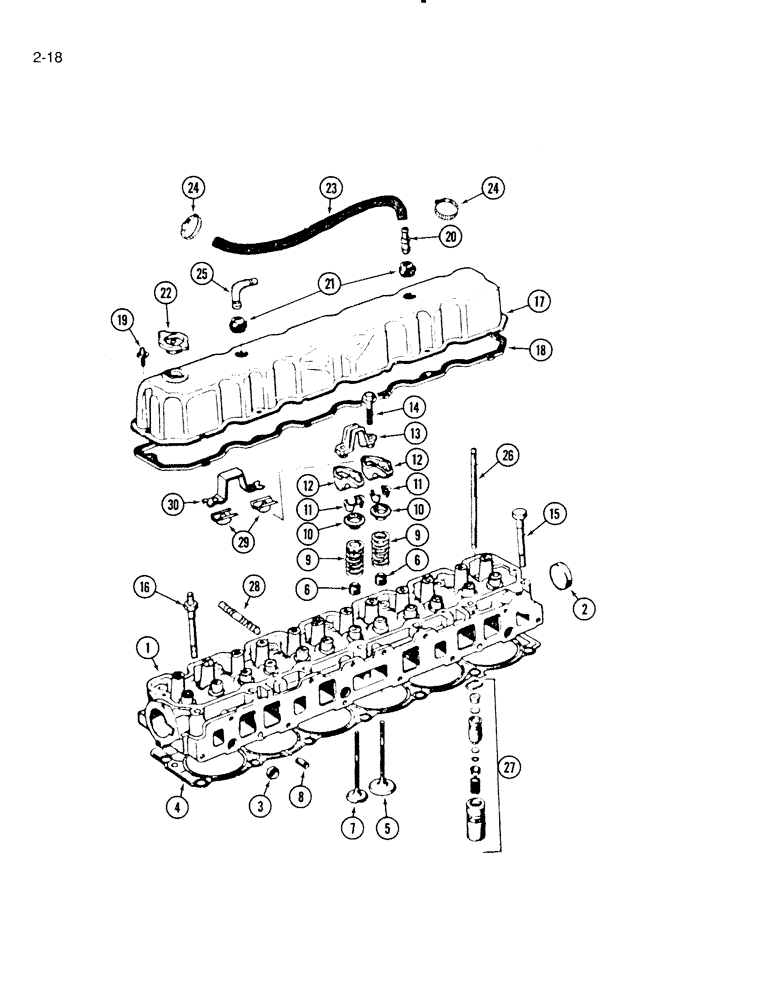

Запчасти Case IH 5000 (2-18) - CYLINDER HEAD, C-232 ENGINE PRIOR TO P.I.N. 4595, C-258 ENGINE P.I.N. 4595 THROUGH 6004 (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
827478C91
HEAD
ASSEMBLY - cylinder
1шт.
2
387012C1
PLUG
- cup, 2 inch
1шт.
3
373553R1
PLUG,Cup, 7/8"
- cup, 7/8 inch (Replaces 387094C1)
3шт.
4
387096C1
GASKET
- cylinder head
1шт.
5
444829C1
VALVE
- intake, standard
6шт.
5
444831C1
VALVE - intake, 0.015 inch oversize
6шт.
6
445370C1
SEAL
DEFLECTOR - valve stem oil
12шт.
7
444826C1
VALVE
- exhaust, standard
6шт.
7
444828C1
VALVE - exhaust, 0.015 inch oversize
6шт.
8
387110C1
PIN - dowel, Serial Range: head-manifold
2шт.
9
824535C1
SPRING
- valve
12шт.
10
458312C1
RETAINER
- valve spring
12шт.
11
387109C1
LOCK - valve spring retainer
24шт.
12
468958C1
ARM
- valve rocker
12шт.
13
436165C1
BRACKET
PIVOT - valve rocker arm (C-232 engine)
6шт.
14
436166C1
BOLT
- pivot to cylinder head
12шт.
15
387111C1
BOLT - cylinder head
10шт.
16
387112C1
BOLT - cylinder head with stud
4шт.
17
387147C93
COVER
ASSEMBLY - valve rocker arm (C-232 engine)
1шт.
17
584988C91
COVER
ASSEMBLY - valve rocker arm (C-258 engine)
1шт.
18
387148C1
GASKET
- cover
1шт.
19
827581C1
SCREW - valve cover with washer
7шт.
19
161108C1
BOLT,Hex Serr, 1/4" - 20 x 1/2"
SCREW - slotted truss, 1/4 NC x 1/2 inch
7шт.
20
827331C1
VALVE
- cylinder block vent
1шт.
21
446531C1
RUBBER
GROMMET - elbow and vent valve
2шт.
22
379318C1
CAP
- oil filler (C-232 engine)
1шт.
22
824536C1
CAP
- oil filler (C258 engine)
1шт.
23
824575C1
HOSE
- vent
1шт.
24
827582C1
CLAMP
- hose
2шт.
25
827278C1
ELBOW
- cover to air cleaner hose
1шт.
26
827474C1
ROD
- push, 9-41/64 inch
12шт.
27
433562C1
TAPPET
ASSEMBLY - valve
12шт.
28
387130C1
STUD
- manifold to cylinder head
2шт.
29
824525C1
PIVOT
- valve rocker arm (C-258 engine)
12шт.
30
824533C1
SUPPORT
CHANNEL - pivot bridge (C-258 engine)
6шт.
306132C1
CABLE TIE,14.5" L
STRAP - tie, nylon, 14 inch
1шт.
