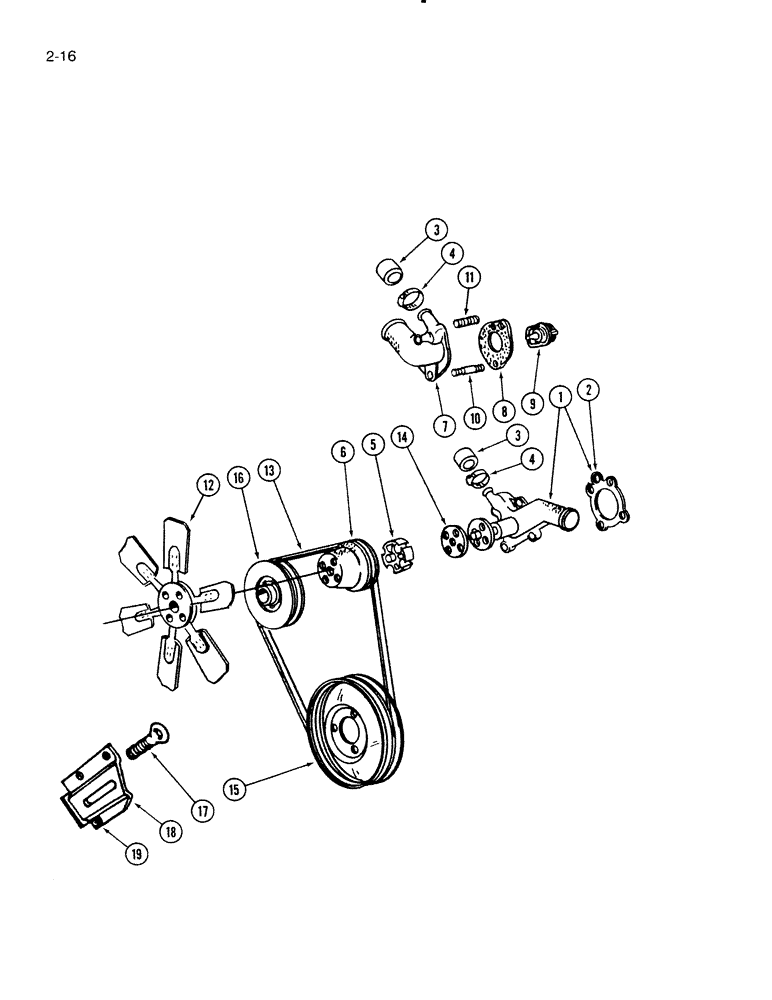

Запчасти Case IH 5000 (2-16) - FAN AND WATER PUMP, C-258 GAS ENGINE P.I.N. 6005 THRU 10008, C-258 GAS ENGINE P.I.N. 372001 & AFTER (02) - ENGINE

1

827011C91

PUMP

ASSEMBLY - water with gasket (P.I.N.6005 through 7805)

1шт.

1

A189388

PUMP

ASSEMBLY - water with gasket (P.I.N. 7806 through 10008) (P.I.N. 372001 and after)(Also order A189389)

1шт.

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

- hex, 5/16 NC x 1-1/8 inch

2шт.

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

2

387039C1

GASKET

- water pump

1шт.

3

389859C1

PLUG

CAP - water pump nipple and thermostat housing

2шт.

4

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

- cap #16, 0.81/1.50 Type F Worm

2шт.

5

824782C1

SPACER

- fan mounting

1шт.

6

827375C1

PULLEY

- fan drive

1шт.

7

827012C1

HOUSING

- thermostat

1шт.

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

1шт.

8

386526C1

GASKET

- thermostat housing

1шт.

9

1347622C1

THERMOSTAT

- 180 degree with gasket (Replaces 827499C91)

1шт.

10

824011C1

STUD - thermostat housing, short

1шт.

11

13-534

BOLT,Hex, 5/16" - 18 x 2-1/8", Gr 5

STUD - thermostat housing, long (Replaces 827013C1)

1шт.

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF

2шт.

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

2шт.

12

A173720

FAN

- radiator (Replaces 826951C1)

1шт.

414-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

- hex, 5/16 NF x 2 inch

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

13

826761C1

V-BELT,12.70 mm W x 987.43 mm L

Fan 12.70 mm W x 987.43 mm L

1шт.

14

826742C1

SET

SPACER SET - retainer

1шт.

15

829645C1

PULLEY

- accessory drive

1шт.

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

3шт.

16

826756C1

PULLEY

ASSEMBLY - belt tightener

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

495-81026

WASHER,21/32" x 1 1/2" x .060"

- flat, 21/32 x 1-1/2 x 3/64 inch

2шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

2шт.

17

828221C1

BOLT,Eye, 1/2" - 13 x 3.25"

- tightener pulley adjusting

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

18

826068C1

BRACKET

ASSEMBLY - tightener pulley

1шт.

413-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

- hex, 3/8 NC x 3-3/4 inch

1шт.

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

- flat, 13/32 x 1 x 7/64"

5шт.

603046R1

SPACER,3/8" X-Strng Pipe x 7/8"

- pipe, 3/8 x 13/16 inch

1шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

19

1275751C1

BOLT

STUD - timing gear cover

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.
