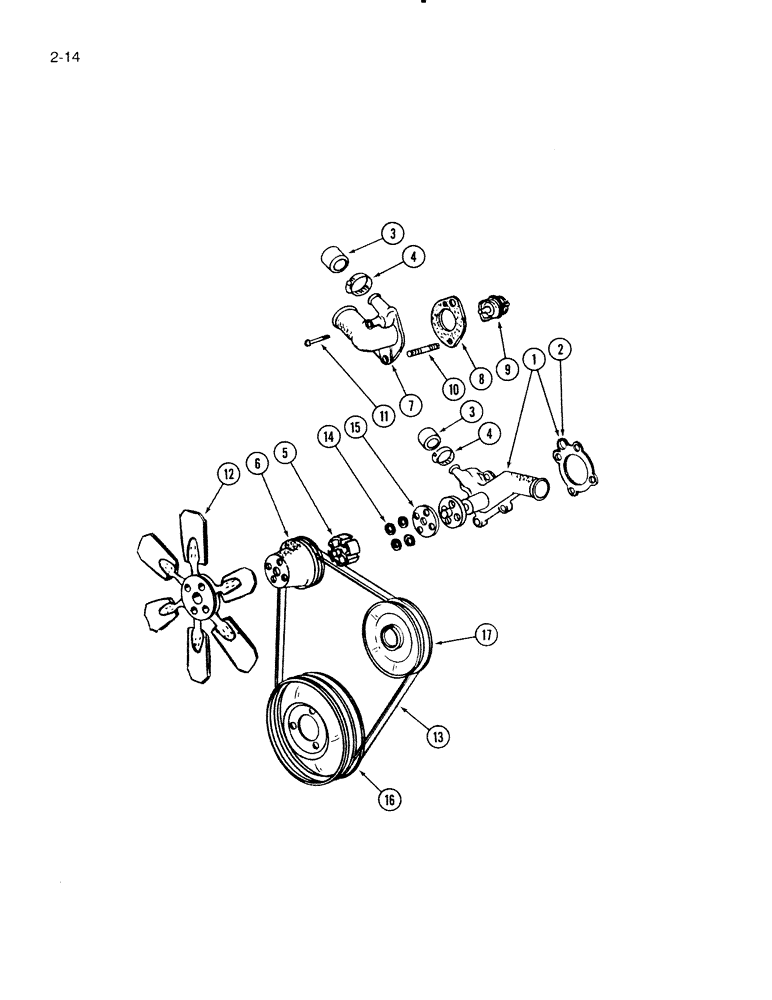

Запчасти Case IH 5000 (2-14) - FAN AND WATER PUMP, C-232 GAS ENGINE PRIOR TO P.I.N. 4595, C-258 GAS ENGINE P.I.N. 4595 THROUGH 6004 (02) - ENGINE

1

1347623C1

REMAN-WATER PUMP

PUMP ASSEMBLY - water (Replaces 470545C91)(C-232 engine), Serial Range: (Prior-P.I.N.4595)

1шт.

1

824466C91

PUMP

ASSYEMBLY - water with gasket (C-258 engine)(P.I.N.4595 through 4784)(Also order 1 spacer 824782C1 and 1 spacer retainer 826742C1)

1шт.

1

824466C91

PUMP

ASSEMBLY - water with gasket (C-258 engine)(P.I.N. 4785 through 6004)

1шт.

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

- hex, 5/16 NC x 1-1/8 inch

2шт.

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

2

387039C1

GASKET

- water pump

1шт.

3

389859C1

PLUG

CAP - water pump nipple and thermostat housing

2шт.

4

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

- cap #16, 0.81/1.50 Type F Worm

2шт.

5

388350C1

SPACER

- fan mounting (C-232 engine)(Prior to pin 4595)

1шт.

5

825095C1

SPACER

- fan mounting 1-1/8 inch width (C-258 engine)(P.I.N. 4595 through 4784)(For service order 1 spacer 824782C1 and 1 spacer retainer 826742C1

1шт.

5

824782C1

SPACER

- fan mounting 7/8 inch width (C-258 engine)(P.I.N. 4785 through 6004)

1шт.

6

827375C1

PULLEY

- fan drive

1шт.

7

470546C1

HOUSING - thermostat

1шт.

8

386526C1

GASKET

- thermostat housing

1шт.

9

1347622C1

THERMOSTAT

- 180 degree with gasket (Replaces 827499C91)

1шт.

10

387256C1

STUD - thermostat housing (C-232, Serial Range: engine)(Prior-P.I.N.4595)

2шт.

10

824411C1

STUD - thermostat housing (C-258 engine)(P.I.N. 4595 through 6004)

2шт.

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF

2шт.

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

2шт.

11

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

1шт.

12

A173720

FAN

- radiator (Replaces 826951C1)

1шт.

114-109

BOLT,Hex, 5/16" - 24 x 2-1/4", Gr 5

- hex, 5/16 NF x 2-1/4 inch

4шт.

414-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

- hex, 5/16 NF x 2 inch

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

13

403348R1

V-BELT,0.50" W x 46.00" L

Fan 0.50" W x 46.00" L

1шт.

14

495-81113

WASHER,0.34" ID x 0.75" OD x 0.18" Thk

- flat, 11/32 x 3/4 x 5/32 inch (C-258 engine)(P.I.N. 4700 through 4784) (For service order 826742C1)

1шт.

15

826742C1

SET

SPACER SET - retainer

1шт.

16

829645C1

PULLEY

- accessory drive

1шт.

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

3шт.

17

378349R1

PULLEY

- alternator

1шт.
