Запчасти Case IH 5000 (9-90) - CONDITIONER LIFT SUPPORT AND CHAINS (09) - CHASSIS/ATTACHMENTS

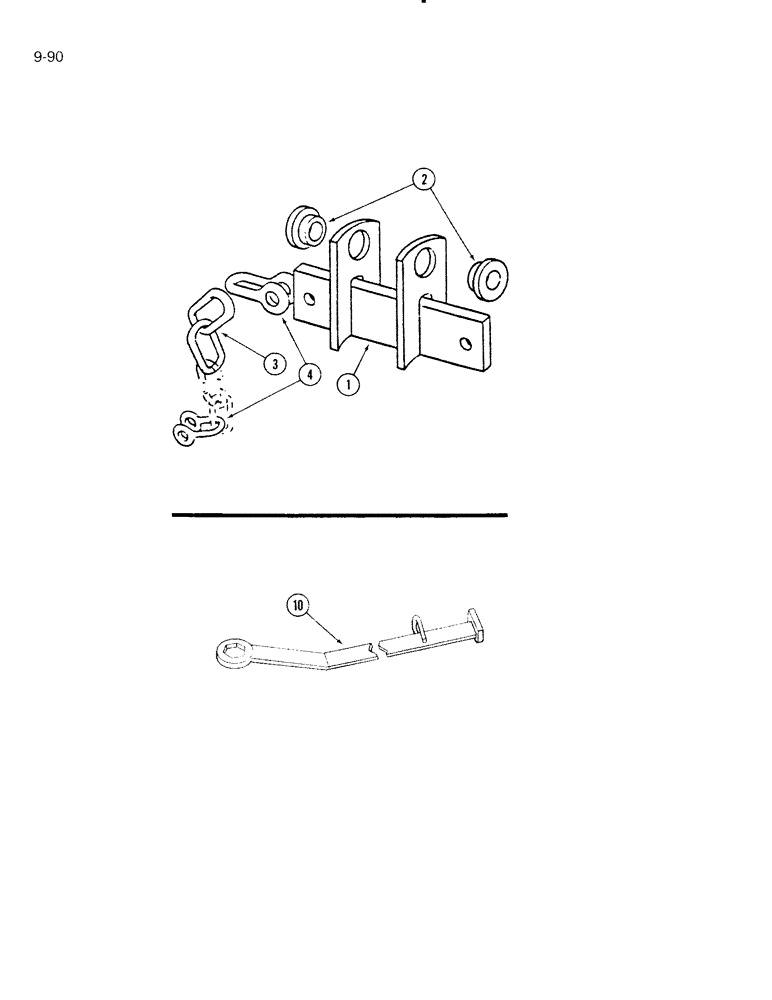

Схема запчастей Case IH 5000 - (9-90) - CONDITIONER LIFT SUPPORT AND CHAINS (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1

831275C1

SUPPORT

ASSEMBLY - transport lift chain

1шт.

2

831586C1

BUSHING

- support, with shoulder (Machines built, Serial Range: prior-1980)

2шт.

2

825019C1

BUSHING

- support, without shoulder (Machines built 1980 and after)

2шт.

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

- hex, 3/4 NC x 4-1/2 inch

1шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

425-1012

NUT,3/4"-10, G5

1шт.

3

831336C1

CHAIN (AG)

CHAIN - transport lift

2шт.

4

455369R2

CLEVIS

- lift chain

4шт.

21932R1

HEADED PIN,1/2" x 2"

PIN - headed, 1/2 x 2 inch, Grade 1

4шт.

599744R1

AXLE PIN

PIN - hair, internal type

4шт.

10

831838C1

SPECIAL WRENCH

WRENCH - rocking ROCKING WRENCH

1шт.

Выбрано товаров: 11
