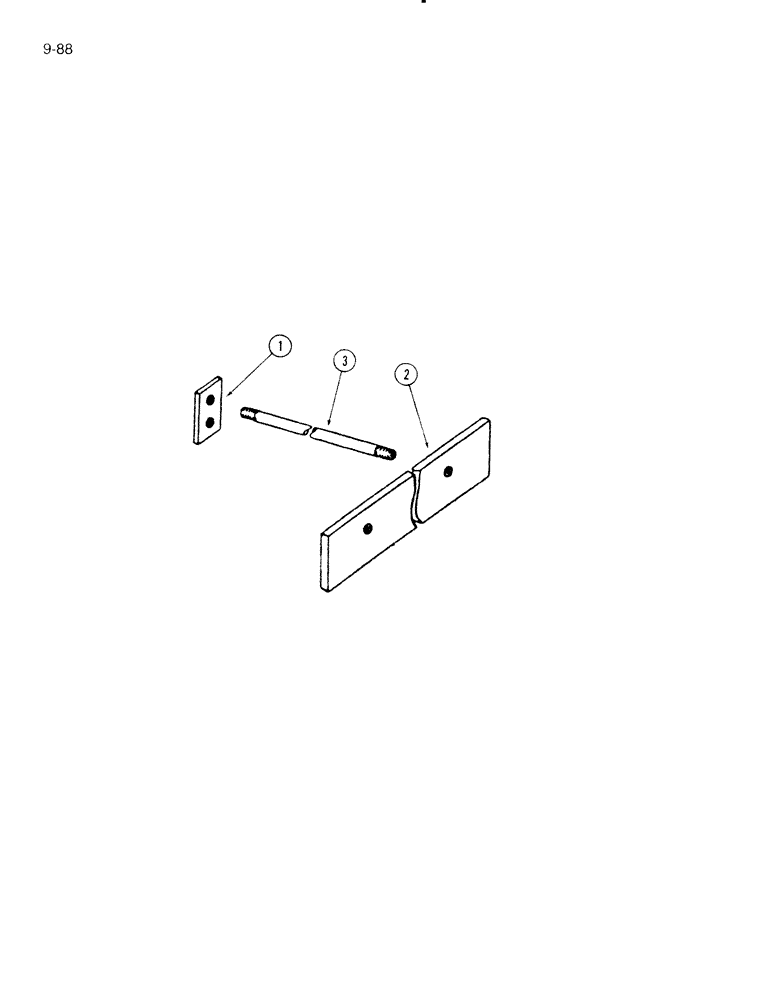

Запчасти Case IH 5000 (9-88) - WEIGHT ATTACHMENT (09) - CHASSIS/ATTACHMENTS

1

828686C1

BAR

- frame reinforcing

2шт.

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

2шт.

425-1012

NUT,3/4"-10, G5

2шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

2

830783C1

BAR

- weight

8шт.

3

830782C1

STUD

- weight mounting

2шт.

425-1012

NUT,3/4"-10, G5

4шт.

425-1412

JAM NUT,Jam, 3/4"-10, G5

- hex jam, 3/4 inch NC

2шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

26512R1

WASHER

- flat, 25/32 x 2 x 5/32 inch

2шт.
