Запчасти Case IH 5000 (9-86) - DECALS, SAFETY AND INSTRUCTION (09) - CHASSIS/ATTACHMENTS

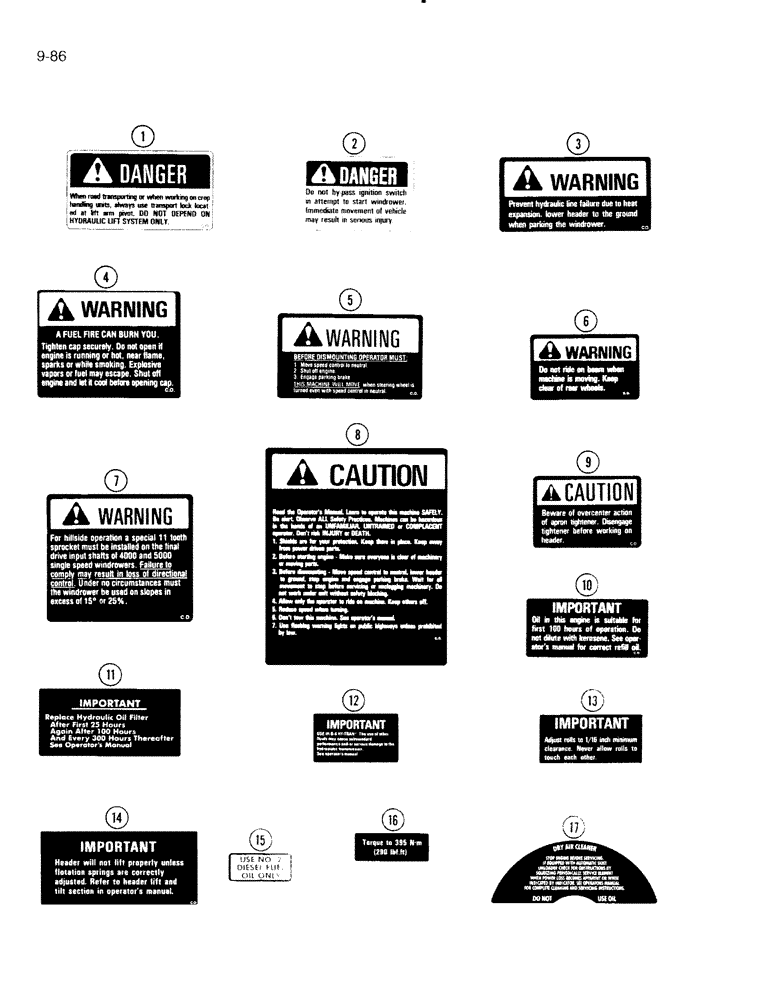

Схема запчастей Case IH 5000 - (9-86) - DECALS, SAFETY AND INSTRUCTION (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1

102105C1

DECAL

- danger, road transport

1шт.

2

831823C1

PRODUCT GRAPHIC

DECAL - danger, do not by-pass

1шт.

3

2753841R2

DECAL

- warning, lower header

1шт.

4

224840C1

DECAL

- warning, fuel fire

1шт.

5

830842C2

PRODUCT GRAPHIC

DECAL - warning, before dismounting

1шт.

6

828804C2

PRODUCT GRAPHIC

DECAL - warning, tail wheel beam

1шт.

7

823471C2

PRODUCT GRAPHIC

DECAL - caution, hillside operation

1шт.

8

830184C1

PRODUCT GRAPHIC

DECAL - caution, read the operators manual

1шт.

8

830234C1

DECAL - caution, read the operators manual (French)

1шт.

8

830315C1

DECAL - caution, read the operators manual (Spanish)

1шт.

9

830235C1

PRODUCT GRAPHIC

DECAL - caution, tightener

1шт.

10

2754183R1

PRODUCT GRAPHIC

DECAL - important, engine oil instruction

1шт.

11

2753749R1

DECAL

- important, hydraulic oil filter

1шт.

12

1333856C1

DECAL

- important, HI-TRAN

1шт.

13

829364C1

DECAL

- important, adjust rolls

1шт.

14

1978892C1

DECAL

- important, header function

1шт.

15

2753866R1

DECAL

- No. 2 diesel fuel

1шт.

16

826727C1

DECAL

- bolt torque

1шт.

17

2751768R1

DECAL

- dry air cleaner

1шт.

Выбрано товаров: 19
