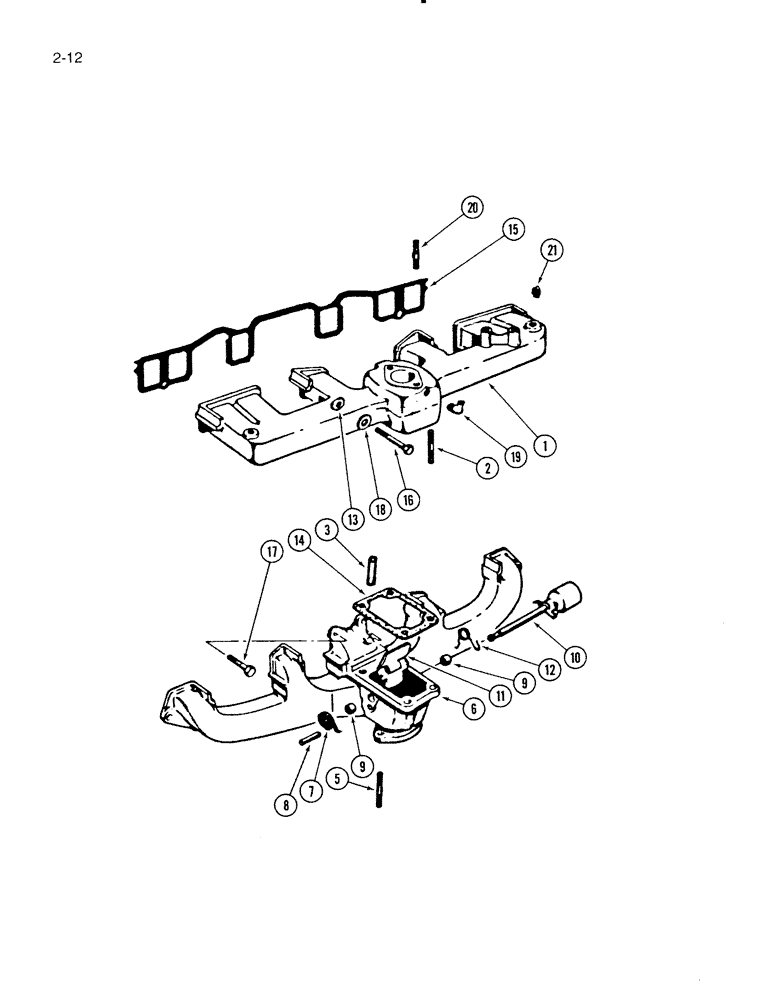

Запчасти Case IH 5000 (2-12) - MANIFOLDS, C-232 AND C-258 GAS ENGINES (02) - ENGINE

1

827382C91

MANIFOLD

ASSEMBLY - intake (C-232 engine)

1шт.

per Herb Holland, there is no exhaust manifold gasket used. -lp-

1шт.

1

824663C1

MANIFOLD

ASSEMBLY - intake (C-258 engine)

1шт.

per Herb Holland, there is no exhaust manifold gasket used. -lp-

1шт.

2

387138C1

STUD

- exhaust manifold to intake manifold (C-232 engine)

4шт.

329-116

NUT,3/8"-24, G8

4шт.

2

166-87

BOLT,Flg, 1/2" - 13 x 1 1/2", Gr 8

SCREW - flanged 12 point, 1/2 NC x 1-1/2 inch, Grade 8 (C-258 engine)

2шт.

2

27077R1

12 PT SCREW,Flg, 3/8" - 16 x 1 1/2"

SCREW - flanged 12 point, 3/8 NC x 1-1/2 inch, Grade 8 (C-258 engine)

2шт.

3

387142C2

TUBE,0.26" ID, 0.367" OD, 6.25" Length

- choke heater exhaust manifold (C-232 engine)

1шт.

5

387113C1

STUD

- exhaust pipe to manifold (C-232 engine)

2шт.

5

824775C1

STUD

- exhaust pipe to manifold (C-258 engine)

2шт.

6

827383C91

MANIFOLD

ASSEMBLY - exhaust (C-232 engine)

1шт.

827384C91

KIT

RISER ASSEMBLY - heat

1шт.

387138C1

STUD

- exhaust manifold to intake manifold

4шт.

6

824720C91

MANIFOLD

ASSEMBLY - exhaust (C-258 engine)

1шт.

827384C91

KIT

RISER ASSEMBLY - heat

1шт.

7

824753C1

SPRING

- heat riser

1шт.

8

NSS

NOT SOLD SEPARAT

PIN - heat riser

1шт.

9

NSS

NOT SOLD SEPARAT

BUSHING - heat riser

2шт.

10

NSS

NOT SOLD SEPARAT

RISER - heat

1шт.

11

NSS

NOT SOLD SEPARAT

DAMPER - heat riser with screw

1шт.

12

NSS

NOT SOLD SEPARAT

SPRING - heat riser

1шт.

13

387128C1

CLAMP - intake and exhaust manifolds to cylinder head

8шт.

14

387140C1

GASKET

- intake to exhaust manifold

1шт.

15

387125C1

MANIFOLD GASKET

- intake manifold

1шт.

16

25489R1

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 8

SCREW - intake and exhaust maniflods to cylinder head

8шт.

17

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

Exhaust manifold to cylinder head Hex, 3/8"-16 x 1 1/4", G8, Full Thd

2шт.

18

387129C1

WASHER - intake and exhaust manifolds to cylinder head

4шт.

19

827277C1

FITTING - intake manifold

1шт.

20

387139C1

STUD - intake manifold

2шт.

21

221-849

PLUG,Hex Soc, 1/8"-27

- intake manifold

1шт.
