Запчасти Case IH 5000 (9-80) - OPERATORS SEAT, CLOTH COVERED (09) - CHASSIS/ATTACHMENTS

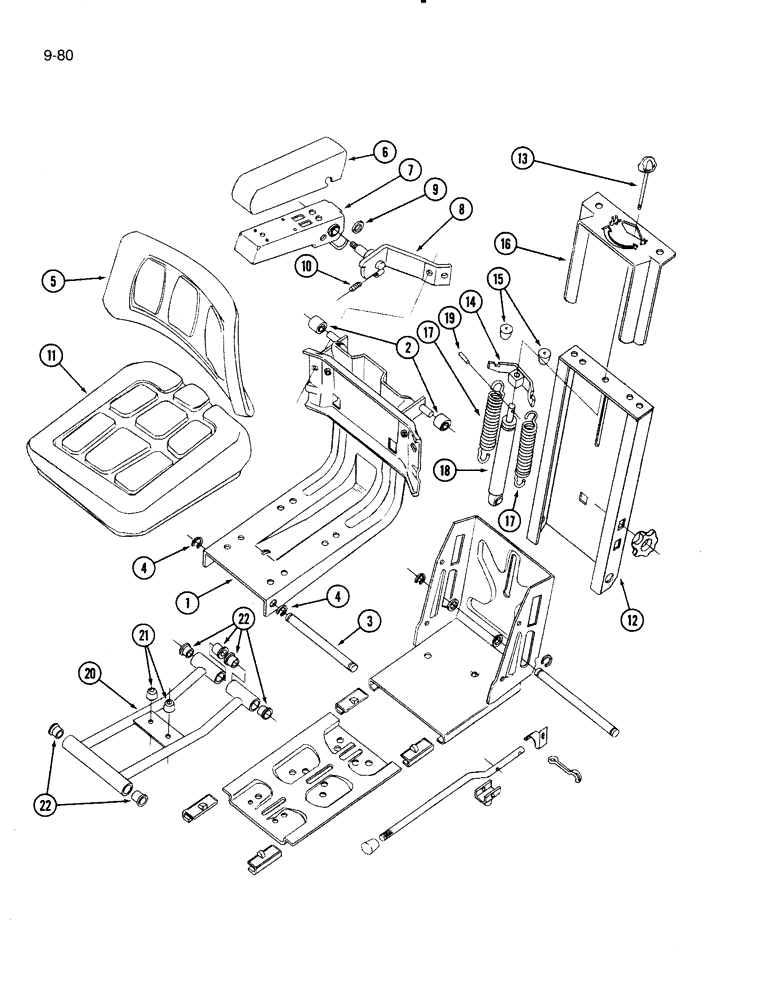

Схема запчастей Case IH 5000 - (9-80) - OPERATORS SEAT, CLOTH COVERED (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

823626C91

SEAT

ASSEMBLY - cloth covered

1шт.

1

824644C1

CARRIER

ASSEMBLY - cushion

1шт.

2

3134833R1

ROLLER

- carrier

2шт.

3

3229883R1

PIN

ROD - carrier pivot

1шт.

4

934901R1

E-RING,M10

RING - pivot rod retaining

2шт.

5

824646C1

CUSHION

- back rest

1шт.

934679R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 4.6

- hex, 8 x 20 mm

2шт.

934899R1

LOCK WASHER,8.2mm ID x 14mm OD

WASHER - flat

2шт.

6

824649C1

CUSHION

- arm rest LH

1шт.

6

824650C1

CUSHION

- arm rest RH

1шт.

7

824651C1

SUPPORT

- arm rest cushion LH

1шт.

7

824652C1

SUPPORT

- arm rest cushion RH

1шт.

30388R1

SELF-TAP SCREW,Pan Hd, M4.8 x 9.5

- pan head cross recess, 4.8 x 10 mm tapping

8шт.

8

824653C1

PIVOT

- arm rest LH

1шт.

8

824654C1

PIVOT

- arm rest RH

1шт.

905422R1

BOLT,Hex, M8 x 1.25 x 25mm, Cl 3.6

B0LT - hex, 8 x 25 mm

2шт.

628-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 30 mm, class 10.9

2шт.

934281R1

WASHER,M10.5 ID x 20 OD x 2 Thk

- flat, 10 mm

2шт.

934899R1

LOCK WASHER,8.2mm ID x 14mm OD

WASHER - flat

4шт.

832-41308

NUT,M8 x 1.25, Cl 10

- hex, self-locking, 8 mm - 1.25, class 10

2шт.

9

824261C1

WASHER

- flat, 17 x 27 x 2 mm

2шт.

10

824647C1

STUD

- arm rest

2шт.

11

824787C1

CUSHION

- seat

1шт.

829-1308

NUT,M8, Cl 10

- hex, 8 mm - 1.25, Cl 10

4шт.

12

3229889R1

FRAME

ADJUSTER - back rest

1шт.

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 16 mm

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 8 mm

1шт.

13

3229890R1

SPINDLE

SCREW - adjuster

1шт.

30731R1

LOCK PIN,M3 x 12, Slotted

PIN - slotted spring, 3 x 12 mm

1шт.

14

3225386R1

RETAINER

BRACKET - spring and adjusting spindle

1шт.

15

826879C1

BUMPER

- adjuster

2шт.

931568R1

SCREW,Pan Slotted, M4.8 x 1.6 x 32mm

- pan head slotted, 9 x 32 mm tapping

2шт.

16

824308C1

COVER

- ajuster

1шт.

17

827361C1

SPRING

- seat tension

2шт.

18

824327C1

SHOCK ABSORBER

ABSORBER - seat shock

1шт.

19

827364C1

RIVET,Flat Hd, M4 x 25

- shock absorber

1шт.

20

3229884R1

ARM ASSY.

FRAME ASSEMBLY - cushion pivot

1шт.

21

3229885R1

STOP

BUMPER - cushion

2шт.

55077C1

RIVET

- blind, 4.8 x 11.5 mm, steel

2шт.

22

3134834R1

BUSHING

- frame

6шт.

Выбрано товаров: 41
