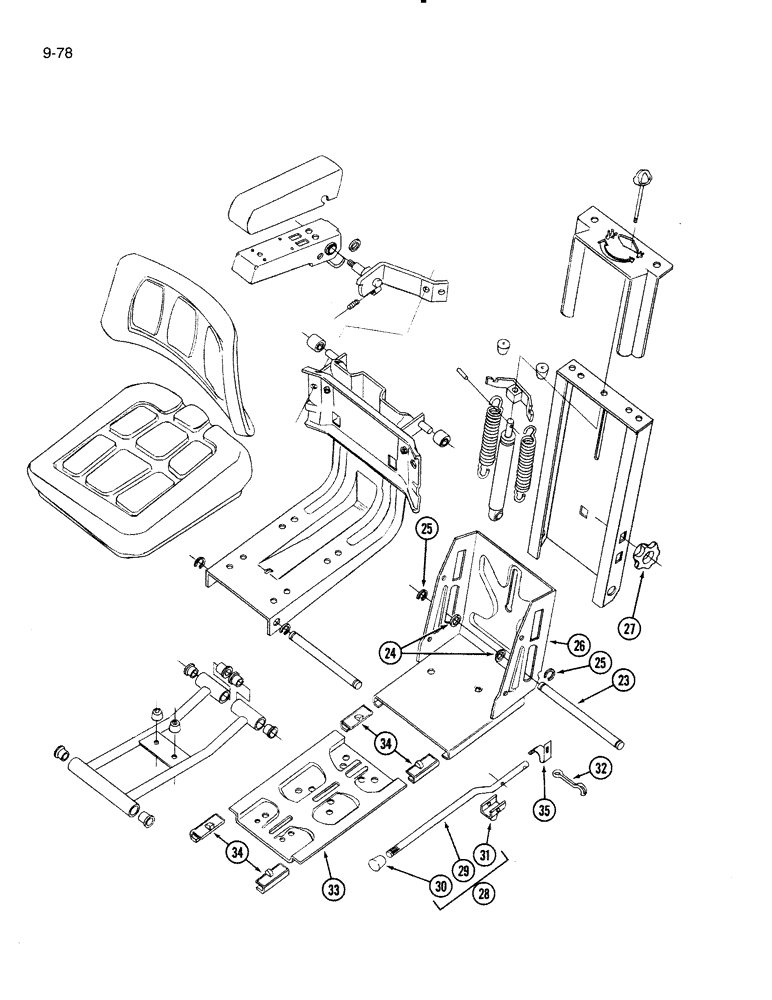

Запчасти Case IH 5000 (9-78) - OPERATORS SEAT, VINYL COVERED (09) - CHASSIS/ATTACHMENTS

823626C91

SEAT

ASSEMBLY - vinyl covered (Continued)

1шт.

23

3229897R1

PIN

ROD - frame pivot

1шт.

24

824262C1

WASHER

- flat

2шт.

25

934901R1

E-RING,M10

RING - pivot rod retaining

2шт.

26

824349C1

SUPPORT

SURPORT - height adjuster

1шт.

811-10035

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 35mm, Cl 8.8

BOLT - round head square neck, 10 x 35 mm, grade 8.8

2шт.

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

2шт.

27

824352C1

KNOB

- seat adjusting

2шт.

832-41310

NUT,M10 x 1.5, Cl 10

NUT - hex, self-locking, 10 mm - 1.5, class 10

2шт.

28

824354C1

LEVER

ASSEMBLY - seat fore and aft adjusting

1шт.

29

NSS

NOT SOLD SEPARAT

ROD - lever

1шт.

142492

PIN,5/32" x 5/8", Type A

Grooved, 5/32" x 5/8", Type A

1шт.

827364C1

RIVET,Flat Hd, M4 x 25

- lever retaining

1шт.

30

3229902R1

KNOB

- lever

1шт.

31

824990C1

LINCH PIN

YOKE - lever pivot

1шт.

32

3229948R1

SPRING

- adjusting lever (Prior, Serial Range: -1980)

1шт.

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm

1шт.

934675R1

WASHER,M8 x 16 x 1.6

- flat, 8 x 17 x 2 mm

1шт.

934673R1

WASHER,M8.4 x 25 x 2

- plain, 8 mm

1шт.

33

3229893R1

PLATE

BASE - seat

1шт.

34

3229900R1

SLIDE

CHANNEL - seat slide

4шт.

35

824984C1

SPRING

- adjusting lever (1980 and After)

1шт.

30663R2

BOLT,Hex Flg, M8 x 30, 10.9

- hex flange, 8 x 30 mm class 10.9

1шт.

934673R1

WASHER,M8.4 x 25 x 2

- plain, 8 mm

1шт.

934676R1

LOCK WASHER,M8

WASHER - flat

1шт.

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

1шт.
