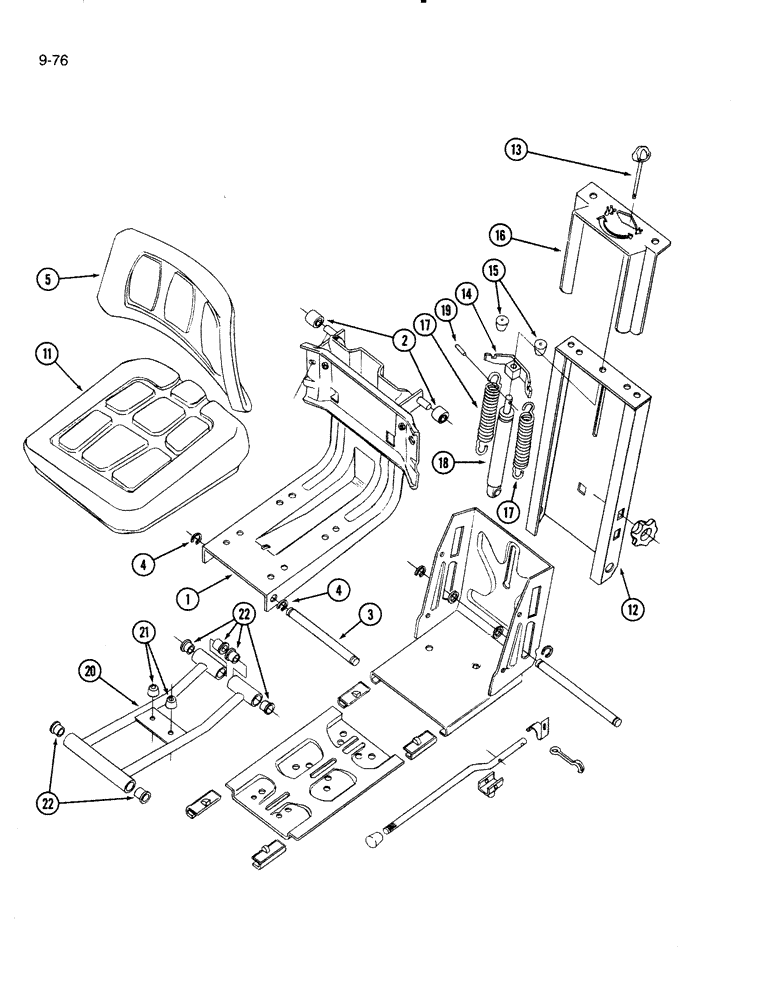

Запчасти Case IH 5000 (9-76) - OPERATORS SEAT, VINYL COVERED (09) - CHASSIS/ATTACHMENTS

823626C91

SEAT

ASSEMBLY - vinyl covered

1шт.

1

824644C1

CARRIER

ASSEMBLY - cushion

1шт.

2

3134833R1

ROLLER

- carrier

2шт.

3

3229883R1

PIN

ROD - carrier pivot

1шт.

4

934901R1

E-RING,M10

RING - pivot rod retaining

2шт.

5

824645C1

CUSHION

- back rest

1шт.

934679R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 4.6

- hex, 8 x 20 mm

4шт.

934899R1

LOCK WASHER,8.2mm ID x 14mm OD

WASHER - flat

4шт.

11

824655C1

CUSHION

- seat

1шт.

829-1308

NUT,M8, Cl 10

- hex, 8 mm - 1.25, Cl 10

4шт.

12

3229889R1

FRAME

ADJUSTER - back rest

1шт.

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 16 mm

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 8 mm

1шт.

13

3229890R1

SPINDLE

SCREW - adjuster

1шт.

30731R1

LOCK PIN,M3 x 12, Slotted

PIN - slotted spring, 3 x 12 mm

1шт.

14

3225386R1

RETAINER

BRACKET - spring and adjusting spindle

1шт.

15

826879C1

BUMPER

- adjuster

2шт.

931568R1

SCREW,Pan Slotted, M4.8 x 1.6 x 32mm

- pan head slotted, 9 x 32 mm tapping

2шт.

16

824308C1

COVER

- ajuster

1шт.

17

827361C1

SPRING

- seat tension

2шт.

18

824327C1

SHOCK ABSORBER

ABSORBER - seat shock

1шт.

19

827364C1

RIVET,Flat Hd, M4 x 25

- shock absorber

1шт.

20

3229884R1

ARM ASSY.

FRAME ASSEMBLY - cushion pivot

1шт.

21

3229885R1

STOP

BUMPER - cushion

2шт.

55077C1

RIVET

- blind, 4.8 x 11.5 mm, steel

2шт.

22

3134834R1

BUSHING

- frame

6шт.
