Запчасти Case IH 5000 (9-74) - OPERATORS SEAT (09) - CHASSIS/ATTACHMENTS

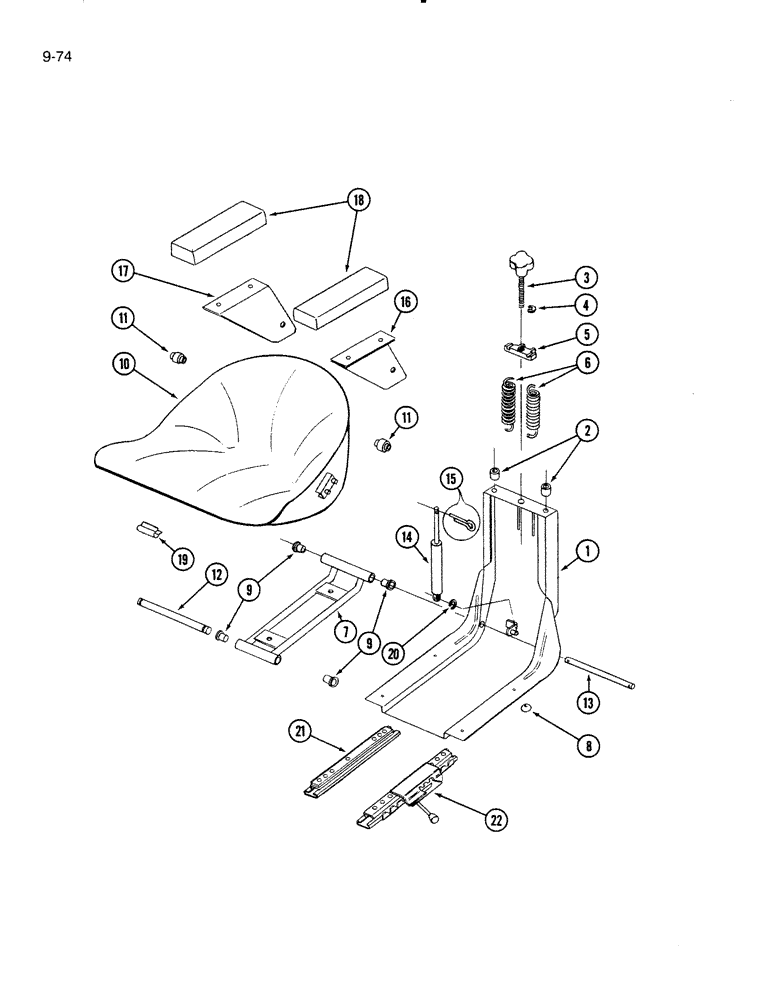

Схема запчастей Case IH 5000 - (9-74) - OPERATORS SEAT (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

827357C92

SEAT

ASSEMBLY - operators

1шт.

827365C1

BASE ASSEMBLY - seat

1шт.

2

826879C1

BUMPER

- seat suspension

2шт.

931568R1

SCREW,Pan Slotted, M4.8 x 1.6 x 32mm

- pan head slotted, 9-32 tapping

2шт.

3

827359C1

ADJUSTMENT SCREW

- tension adjusting

1шт.

4

827360C1

WASHER

WASHER - screw retaining

1шт.

5

3134838R1

HOLDER

BRACKET - spring

1шт.

6

827361C1

SPRING

- seat tension

2шт.

7

827366C1

STABILIZER - seat

1шт.

8

3134835R1

BUMPER

- seat

2шт.

9

3134834R1

BUSHING

- frame

4шт.

10

827367C1

CUSHION

- seat

1шт.

11

3217347R1

ROLLER

- seat cushion

2шт.

12

3217343R1

PIN

- seat stabilizing

1шт.

3217345R1

WASHER

RING - retaining

2шт.

13

827362C1

PIN

- seat base pivot

1шт.

432-1016

COTTER PIN,5/32" x 1"

5/32" x 1"

2шт.

14

827363C1

SHOCK ABSORBER

ABSORBER - seat, shock

1шт.

15

827364C1

RIVET,Flat Hd, M4 x 25

- shock absorber

1шт.

16

826874C1

SUPPORT

- arm rest LH

1шт.

17

826875C1

SUPPORT

- arm rest RH

1шт.

717444R1

NUT

- hex self locking

2шт.

21796R1

WASHER

- flat, 21/32 x 1 x 3/64 inch

4шт.

18

826881C1

CUSHION

- arm rest

2шт.

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

BOLT, Hex, M8 x 16, 8.8, Full Thd

4шт.

934676R1

LOCK WASHER,M8

WASHER - arm rest

4шт.

19

827368C1

CLIP

CLAMP - seat cushion

10шт.

20

826877C1

RING

- shock absorber retaining

1шт.

21

825198C1

RAIL

SLIDE - seat adjusting RH

1шт.

22

825199C91

SLIDE

- seat adjusting LH

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

6шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

425-105

NUT,5/16"-18, G5

8шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

134238R1

WASHER

- flat, 11/32 x 1 x 3/64 inch

4шт.

Выбрано товаров: 35
