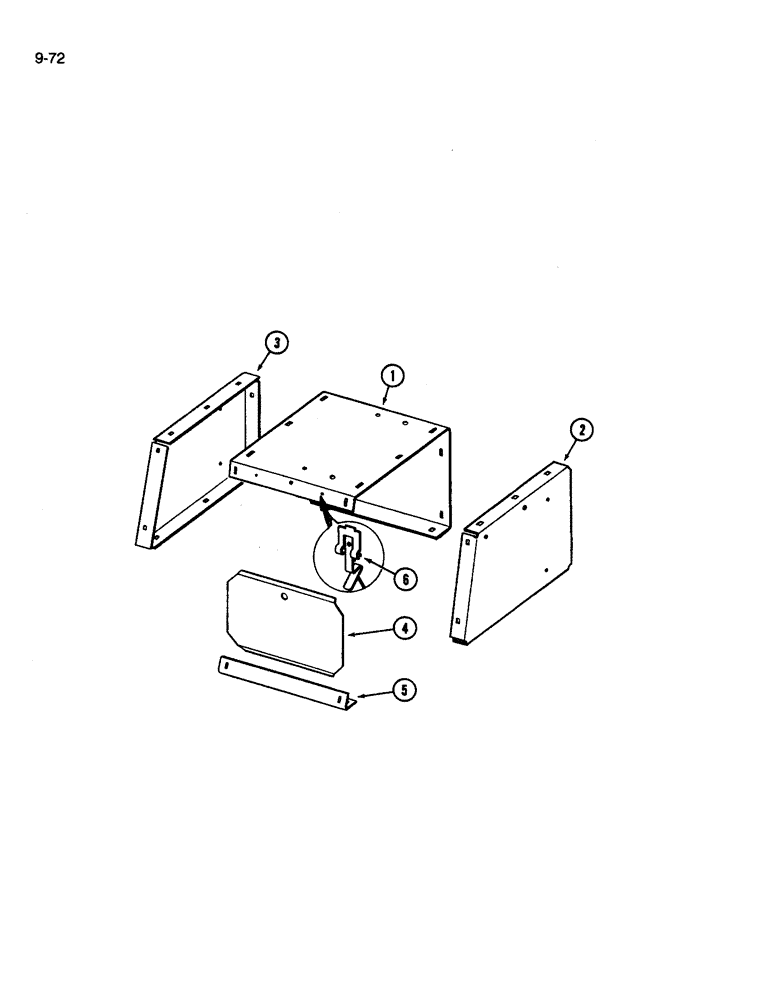

Запчасти Case IH 5000 (9-72) - SEAT SUPPORT AND TOOL BOX (09) - CHASSIS/ATTACHMENTS

1

823608C2

SUPPORT

- seat, top

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 3/4 inch

12шт.

425-105

NUT,5/16"-18, G5

12шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

2

823606C1

SUPPORT

- seat side LH

1шт.

3

823607C1

SUPPORT

- seat side RH

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 3/4 inch

6шт.

425-105

NUT,5/16"-18, G5

6шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

4

823604C1

COVER

- tool box

1шт.

5

823605C1

ANGLE

- cover retaining

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 3/4 inch

2шт.

425-105

NUT,5/16"-18, G5

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

6

829142C1

LATCH

- cover hold down

2шт.

436732

SCREW,Slotted Pan Hd, #10-24 x 1/2"

- pan head slotted, No. 10-24 x 1/2 inch

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.
