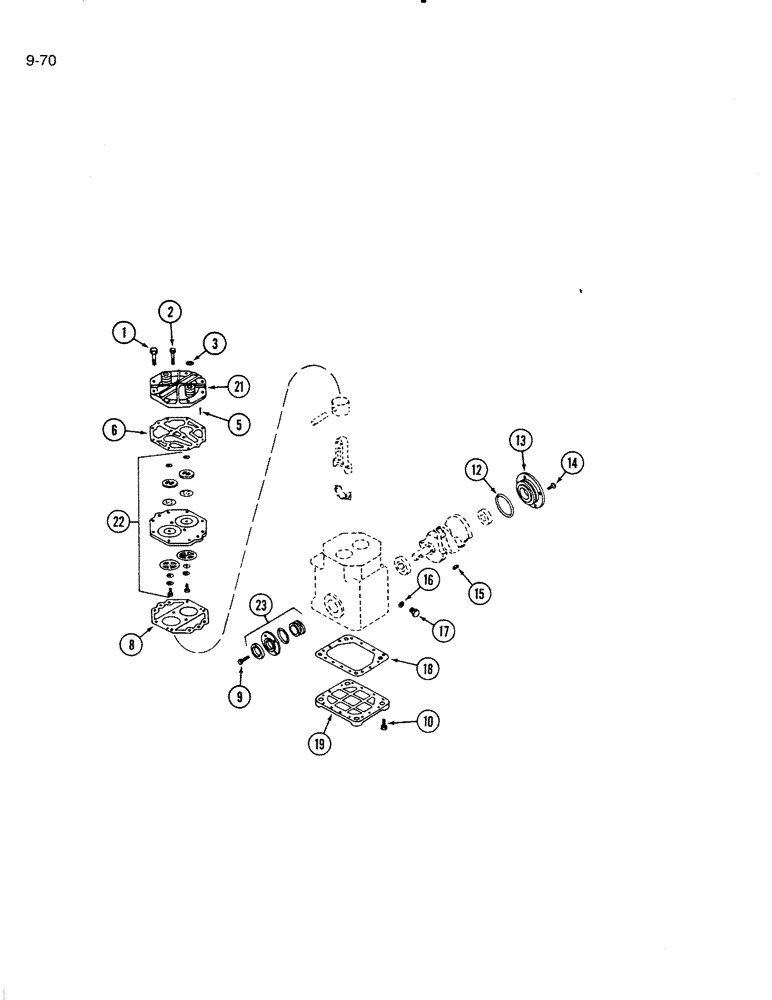

Запчасти Case IH 5000 (9-70) - COMPRESSOR ASSEMBLY, YORK (09) - CHASSIS/ATTACHMENTS

417888C92

COMPRESSOR

COMPRESSOR ASSEMBLY - air conditioning

1шт.

1924004C2

REMAN-A/C COMPRESSOR

Remanufactured COMPRESSOR

1шт.

1924005C1

CORE-A/C COMPRESSOR

Return Number

1шт.

1

413-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

BOLT - hex, 5/16 NF x 1-3/8 inch

8шт.

2

374805R1

12 PT SCREW,Flg, 5/16" - 18 x 1 1/2", Gr 8

SCREW - 12 point, 5/16 NC x 1-1/2 inch

2шт.

3

118469C1

GASKET

GASKET - service valve

2шт.

5

21247R1

DOWEL,1/8" x 3/4"

PIN - dowel, 1/8 x 3/4 inch

2шт.

6

431756C1

CYLINDER HEAD GASKET

GASKET - cylinder head to valve plate

1шт.

8

431761C1

CYLINDER HEAD GASKET

GASKET - valve, Serial Range: plate-crankcase

1шт.

9

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

SCREW - machine, hex, No. 10 NC x 1/2 inch

6шт.

10

463-12510

SCREW,Hex Hd, 1/4"-20 x 5/8"

SCREW - hex flange, 1/4 NC x 5/8 inch

14шт.

12

431763C1

O-RING,0.07" Thk x 3.239" ID, -42, Cl 6, 90 Duro

SEAL - o-ring

1шт.

13

431757C1

HOUSING

COVER - rear, crankcase housing

1шт.

14

120585

SCREW,Sl Flat Hd, 1/4" - 20 x 5/8"

SCREW, Slotted Flat Hd, 1/4"-20 x 5/8"

4шт.

15

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

WOODRUFF KEY, #6, 5/32" x 5/8", HT

1шт.

16

431764C1

SEAL,8.484mm ID x 1.778mm Width

SEAL - o-ring oil plug

2шт.

17

445073

HYD CONNECTOR

- hex, 3/8-24

2шт.

18

431760C3

GASKET

GASKET - base

1шт.

19

431755C1

PLATE

SPARE PART PLATE - base

1шт.

21

479011C91

KIT

KIT - cylinder head (Replaces 431758C1)

1шт.

22

394430C91

KIT

KIT - valve plate with gaskets

1шт.

23

428606C91

SEAL

KIT - shaft seal, front

1шт.

384189C91

KIT - rotalock cylinder head

1шт.
