Запчасти Case IH 5000 (9-66) - OPERATORS CAB BLOWER, BUILT 1983 AND AFTER (09) - CHASSIS/ATTACHMENTS

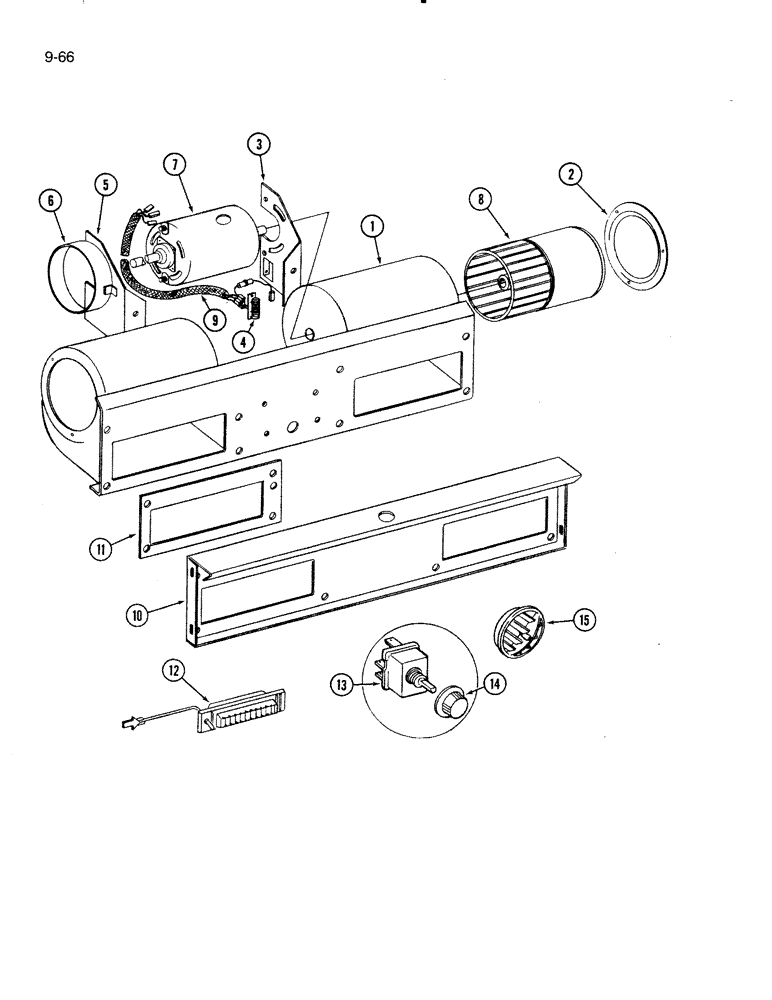

Схема запчастей Case IH 5000 - (9-66) - OPERATORS CAB BLOWER, BUILT 1983 AND AFTER (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1255878C91

BLOWER ASSY.

BLOWER ASSEMBLY - cab

1шт.

1

117785C2

HOUSING ASSY.

HOUSING ASSEMBLY - blower

1шт.

2

1344175C1

RETAINER

- inlet (Replaces 65010C1)

2шт.

1276100C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - pan head slotted lock, No. 10 NC x 3/8 inch

6шт.

3

1262098C1

SUPPORT ASSY.

SUPPORT ASSEMBLY - resistor

1шт.

66299C1

NUT

- hex Keps, No. 10-32

2шт.

4

1255876C1

RESISTOR

ASSEMBLY - blower

1шт.

261-2436

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/8"

SCREW - pan head cross recess, No. 6-32 x 3/8 inch tapping

2шт.

5

1344176C1

SUPPORT

BRACKET - motor mounting (Replaces 143167C1)

1шт.

66299C1

NUT

- hex Keps, No. 10-32

2шт.

6

1344177C1

RETAINER

RING - motor mounting (Replaces 143167C1)

1шт.

7

142990C2

MOTOR, ELECTRIC

MOTOR - blower

1шт.

190333A1R

REMAN-ELECTRIC MOTOR,12V

4000 S/N 4501 & Aft., 5000 S/N 1901 & Aft., Reman For New P/N's 142990C2 & 190333A1

1шт.

190333A1C

CORE-ELECTRIC MOTOR,12V

Return Number

1шт.

8

539018R2

FAN

- wheel, LH

1шт.

8

539077R2

FAN

- wheel, RH

1шт.

9

83829C1

HARNESS

ASSEMBLY - blower motor

1шт.

10

823667C1

SUPPORT

- blower mounting

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

495-51028

WASHER,0.28" ID x 0.73" OD x 0.06" Thk

- flat, 9/32 x 47/64 x 1/16 inch

4шт.

11

823731C1

SEAL

GASKET - blower mounting

2шт.

12

823757C91

LIGHT

ASSEMBLY - cab interior

1шт.

455490

BULB,C-6, #1003, 12V, .94W

- light

1шт.

265-1436

SCREW - oval head cross recess, No. 6-20 x 3/8 inch tapping

2шт.

13

168822C2

SWITCH

- blower

1шт.

109311H

JAM NUT

- hex, jam, 7/16 inch

1шт.

14

823384C1

KNOB

- switch

1шт.

15

173913C1

DEFLECTOR

- air

6шт.

827431C1

PRODUCT GRAPHIC

DECAL - blower control

1шт.

Выбрано товаров: 31
