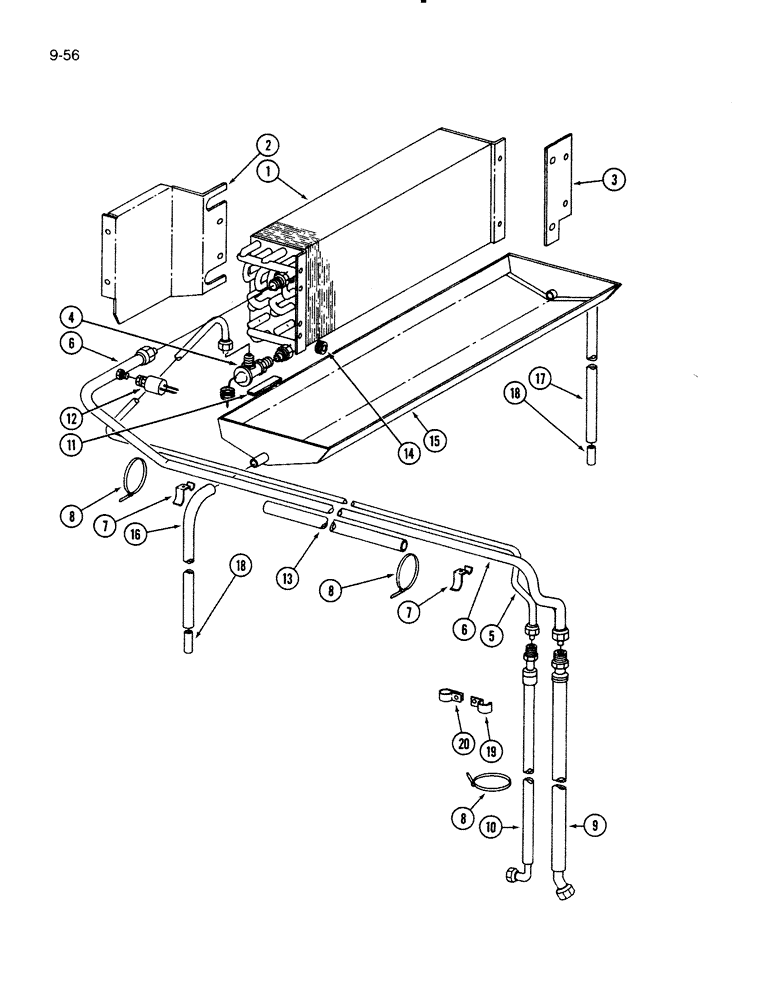

Запчасти Case IH 5000 (9-56) - OPERATORS CAB EVAPERATOR, BUILT 1983 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

1276402C1

COIL

- evaporator

1шт.

260-1478

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1/2"

SCREW - pan head cross recess, 1/4 NC x 1/2 inch

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

2

175581C1

BRACKET

SUPPORT - evaporator coil, left

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

3

175582C1

BRACKET

BAR - evaporator coil support, right

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

1280333C1

VALVE

- expansion

1шт.

238-5008

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

-008, 70 Duro, .176" ID x .070" Thk

1шт.

118444C1

CLAMP

CUP - cup expansion valve

1шт.

5

1276400C1

TUBE,904.8, 158.8 mm Length

- dehydrator, upper

1шт.

6

1276401C1

TUBE

- suction, upper

1шт.

7

1276414C1

CLAMP

- tube

2шт.

261-14712

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 3/4"

SCREW - pan head cross recess, 1/4 NC x 3/4 inch

3шт.

8

289862C1

CABLE TIE,3/16" x 7"

STRAP - retaining

2шт.

9

826726C1

HOSE

Suction

1шт.

10

824696C1

HOSE

- dehydrator

1шт.

11

1276409C1

PACKING

- expansion valve

1шт.

289862C1

CABLE TIE,3/16" x 7"

STRAP - retaining

2шт.

12

111267C4

SWITCH, A/C LOW PRES

SWITCH - air conditioning, low pressure

1шт.

12

111267C4GV

SWITCH, A/C LOW PRES

SWITCH - air conditioning, low pressure

1шт.

13

1276408C1

INSULATOR

INSULATION - suction tube

1шт.

14

117736C1

GROMMET

- capillary tube

1шт.

15

823298C1

PAN

- evaporator drain

1шт.

261-14512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - pan head cross recessed, 3/4 inch tapping

2шт.

19910R1

LOCK NUT

- hex prevailing torque, No. 10 NC

2шт.

16

823714C1

TUBE,12.5" Length

- plastic drain, left

1шт.

17

823715C1

TUBE,14.75" Length

- plastic drain, right

1шт.

18

823299C1

VALVE

ASSY - drain tube check

2шт.

19

823616C1

CLAMP - hose

3шт.

167263

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

- pan head cross recess, 1/4 NC x 3/4 inch

3шт.

20

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- P, 3/4 inch diameter

3шт.

167263

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

- pan head cross recess, 1/4 NC x 3/4 inch

3шт.
