Запчасти Case IH 5000 (9-52) - OPERATORS CAB HEADLINER, WITH AIR CONDITIONER, BUILT 1983 AND AFTER (09) - CHASSIS/ATTACHMENTS

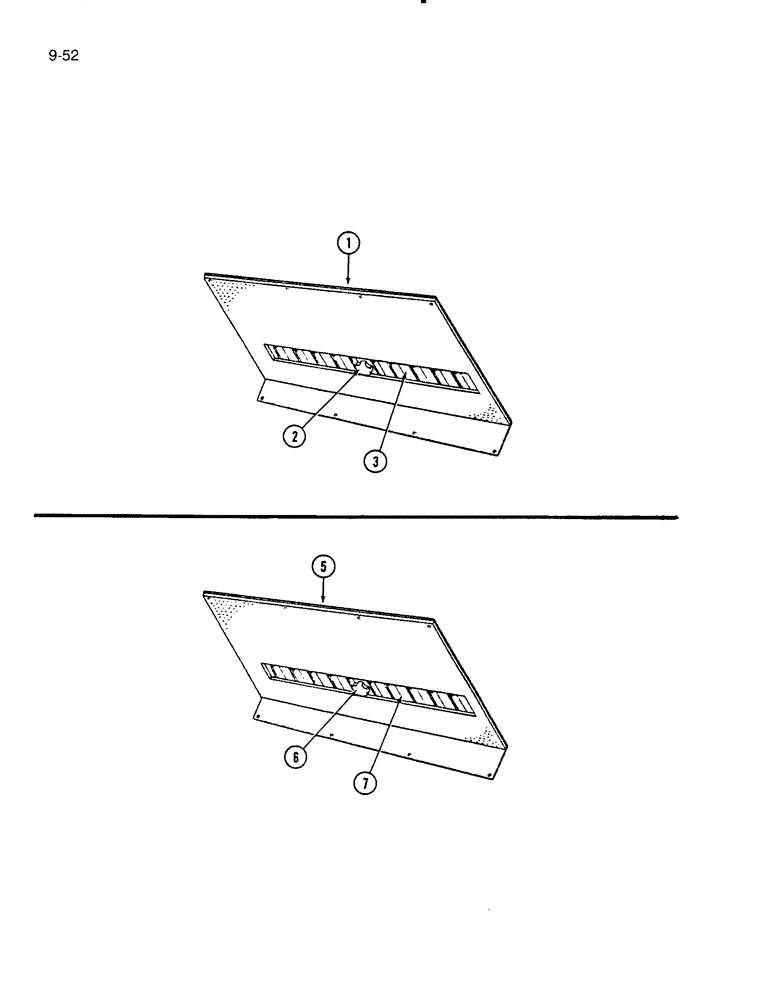

Схема запчастей Case IH 5000 - (9-52) - OPERATORS CAB HEADLINER, WITH AIR CONDITIONER, BUILT 1983 AND AFTER (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1276412C1

PANEL ASSY.

PANEL ASSEMBLY - headliner

1шт.

1

NSS

NOT SOLD SEPARAT

PANEL - headliner (Order 1276412C1)

1шт.

2

1276411C1

KNOB

- vent

1шт.

3

1276404C1

DAMPER

VENT - air recirulating

1шт.

823300C91

PANEL

ASSEMBLY - headliner

1шт.

5

NSS

NOT SOLD SEPARAT

PANEL - headliner (Order 823300C91) BUILT PRIOR TO 1983

1шт.

6

823301C1

KNOB

- vent BUILT PRIOR TO 1983

1шт.

26110R1

LOCK NUT,1/4"-20, GC

NUT - hex lock, 1/4 inch NC, Grade 8 BUILT PRIOR TO 1983

1шт.

7

823302C1

VENT

- air recirculation BUILT PRIOR TO 1983

1шт.

Выбрано товаров: 9
