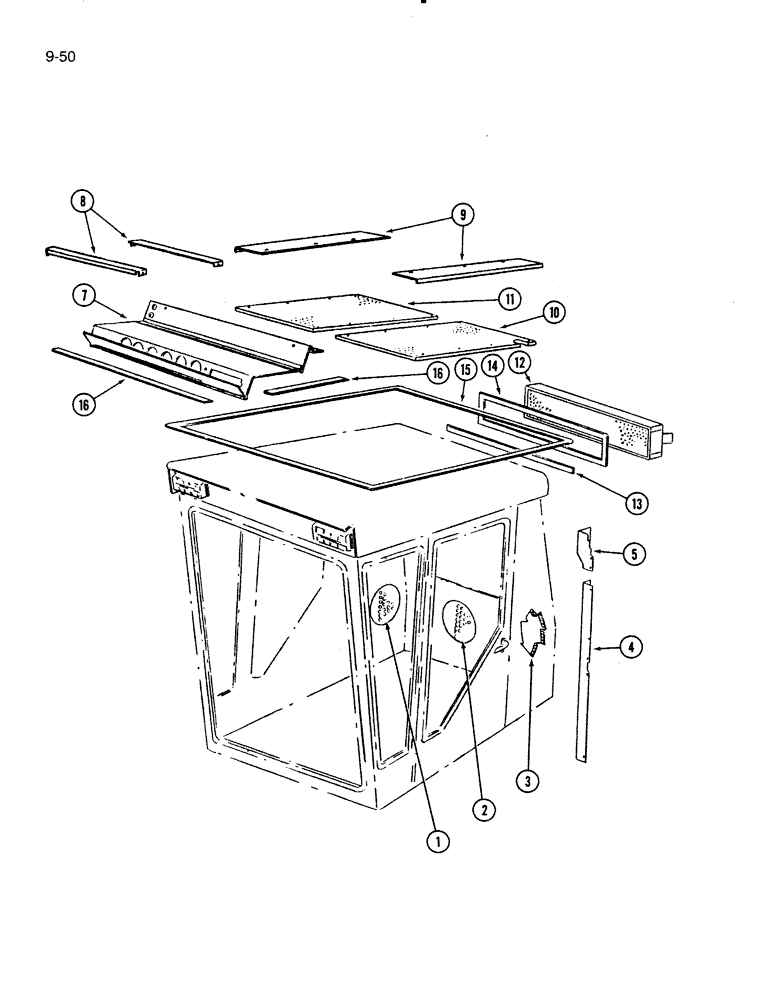

Запчасти Case IH 5000 (9-50) - CAB INSULATION AND FILTER (09) - CHASSIS/ATTACHMENTS

1

823355C1

INSULATOR

INSULATION - cab RH

1шт.

2

823356C1

INSULATOR

INSULATION - cab rear

1шт.

3

823357C1

INSULATOR

INSULATION - cab LH

1шт.

4

823372C1

ANGLE

- hose cover

1шт.

261-1458

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - pan head cross recess, No. 10 NC x 1/2 inch tapping

5шт.

5

823358C1

SHIELD

- hose, top

1шт.

261-1458

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - pan head cross recess, No. 10 NC x 1/2 inch tapping

5шт.

7

823729C1

HOOD

ASSEMBLY - blower

1шт.

NSS

NOT SOLD SEPARAT

TAPE - hood sealing (Order 2643152R and, Serial Range: cut-lenght)

1шт.

24409R1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 3/4"

SCREW - machine, pan head cross recess, 1/4 NC x 3/4 inch, tapping

3шт.

597227R1

NUT - speed

3шт.

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

- machine, pan head cross recess, No.10 NC x 1/2 inch

6шт.

445441

NUT,U, #10-24

- spring, NO. 10 NC

6шт.

260-1458

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - pan head cross recess, No. 10 NC x 1/2 inch

8шт.

823728C1

SUPPORT

- insulation retainer

2шт.

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

- machine, pan head cross recess, No.10 NC x 1/2 inch

4шт.

19910R1

LOCK NUT

- hex prevailing torque, No. 10 NC

4шт.

9

823742C1

SUPPORT

- cab roof insulation

2шт.

260-1458

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - pan head cross recess, No. 10 NC x 1/2 inch

6шт.

10

823685C1

PANEL - roof inner LH

1шт.

11

823691C1

PANEL

- roof inner RH

1шт.

260-1458

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - pan head cross recess, No. 10 NC x 1/2 inch

16шт.

12

175568C1

FILLER

FILTER - air, roof dust (Replaces 827425C1)

1шт.

13

483510R1

SEAL

- filter housing, lower

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - filter 76 inch (Order 453761C1 and, Serial Range: cut-lenght)

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - roof 201 inch (Order 2643144R1 and, Serial Range: cut-lenght)

1шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

12шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

12шт.

16

NSS

NOT SOLD SEPARAT

TAPE - hood sealing (Order 2643152R1 and, Serial Range: cut-lenght)

1шт.
