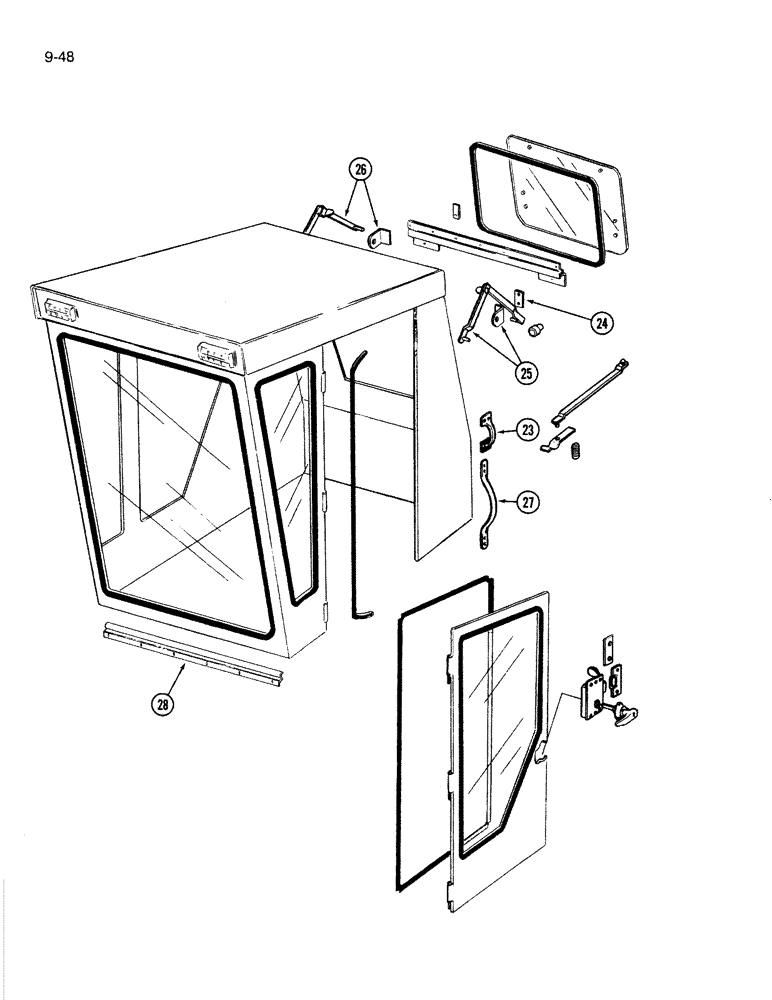

Запчасти Case IH 5000 (9-48) - OPERATORS CAB GLASS AND DOOR (09) - CHASSIS/ATTACHMENTS

23

823347C1

HANDLE

- CAB GRAB

1шт.

160541

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

- machine, pan head cross recess, 1/4 NC x 3/4 inch

4шт.

24

823311C1

STRIP

- adjuster support

2шт.

25

896278C1

ADJUSTER

- window, rear LH

1шт.

26

896279C1

ADJUSTER

- window, rear RH

1шт.

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

- machine, pan head cross recess, No. 10 NC x 3/4 inch

4шт.

19910R1

LOCK NUT

- hex prevailing torque, No. 10 NC

4шт.

426242C1

WASHER - glass attaching

4шт.

495-81101

WASHER,5.56mm ID x 19.05mm OD x 1.7mm Thk

Flat 7/32" x 3/4" x .060"

4шт.

27

824634C1

HANDLE

- cab grab

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

28

1976577C1

RETAINER

- windshield, lower

1шт.

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

SCREW - truss head slotted, 1/4 NC x 1/2 inch

6шт.
