Запчасти Case IH 5000 (9-46) - OPERATORS CAB GLASS AND DOOR (09) - CHASSIS/ATTACHMENTS

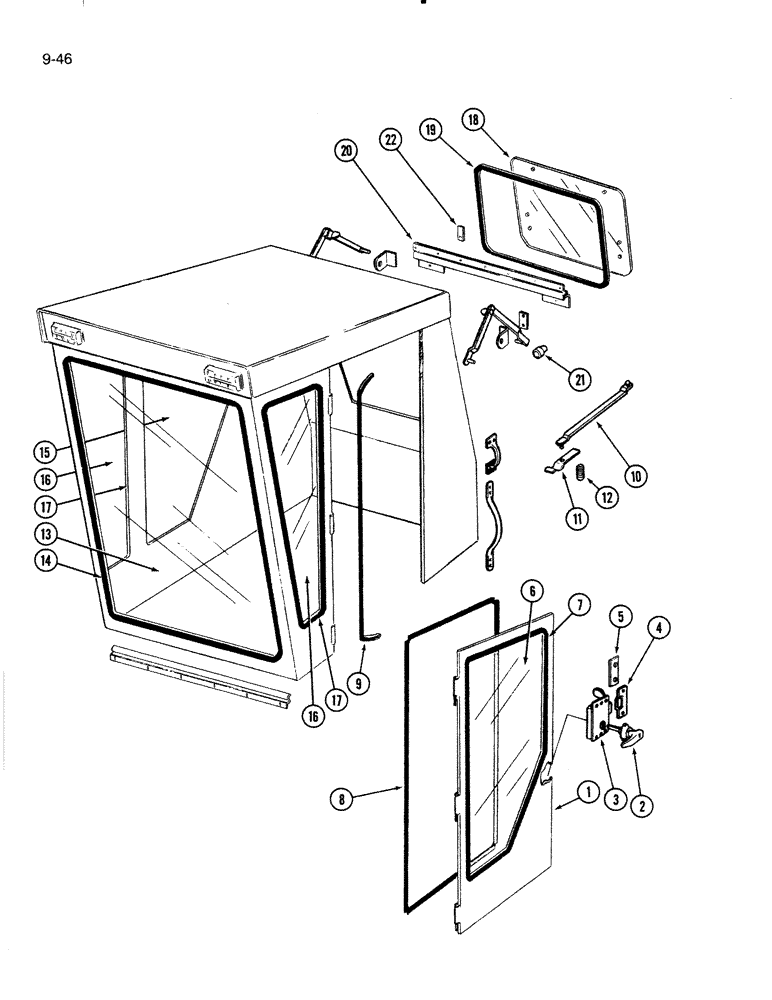

Схема запчастей Case IH 5000 - (9-46) - OPERATORS CAB GLASS AND DOOR (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1

823271C1

DOOR

- cab

1шт.

2

823292C1

HANDLE

- door, locking with keys

1шт.

261-1458

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - pan head cross recess, No. 10 NC x 1/2 inch, tapping

2шт.

3

159195H1

LOCK ASSY

LATCH - door

1шт.

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

- machine, pan head cross recess, No. 10 NC x 3/4 inch

4шт.

4

392801R3

LATCH

STRIKER - door catch

1шт.

5

823272C1

BAR

- striker support

1шт.

5

443-12512

SCREW,Cross Flat Hd, 1/4"-20 x 3/4"

2шт.

6

827403C1

GLASS

- door

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - glass, door and rear RH window, 119 inch (Order 64517C1 and, Serial Range: cut-lenght)

2шт.

8

NSS

NOT SOLD SEPARAT

SEAL - door, weather, 180 inch (Order 713806C1 and, Serial Range: cut-lenght)

1шт.

9

NSS

NOT SOLD SEPARAT

STRIP - door edge opening, 60 inch (Order 196707c1 and, Serial Range: cut-lenght)

1шт.

10

827407C1

ROD

- door check

1шт.

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

231-4116

NUT,3/8"-16, GB

NUT - hex lock, 3/8 inch NC

1шт.

200867C1

SUPPORT

CLIP - door check

1шт.

12

827408C1

SPRING

- check clip tension

1шт.

13

823277C1

GLASS

- windshield

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - glass, windshield, 180 inch (Order 64517C1 and, Serial Range: cut-lenght)

1шт.

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

SCREW - slotted truss, 1/4 NC x 1/2 inch

6шт.

15

827403C1

GLASS

- window, cab, RH rear

1шт.

16

827405C1

GLASS

- window, cab side, front

2шт.

17

NSS

NOT SOLD SEPARAT

SEAL - glass, cab side, front, 129 inch (Order 64517C2 and, Serial Range: cut-lenght)

2шт.

18

823278C1

GLASS

- window, cab rear

1шт.

19

18147C1

SEAL - glass,cab rear, 132 inch (Order 2643144R1 and, Serial Range: cut-lenght)

1шт.

20

823367C1

HINGE

ASSEMBLY - window, rear

1шт.

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

- machine, pan head cross recess, No. 10 NC x 3/4 inch

9шт.

19910R1

LOCK NUT

- hex prevailing torque, No. 10 NC

2шт.

426242C1

WASHER - glass attaching

2шт.

495-81101

WASHER,5.56mm ID x 19.05mm OD x 1.7mm Thk

Flat 7/32" x 3/4" x .060"

2шт.

21

823296C1

SEAL, GLASS

- glass attaching bushing

6шт.

22

NSS

NOT SOLD SEPARAT

SEAL - glass, mounting, 3-5/8 inch (Order 543761C1 and, Serial Range: cut-lenght)

2шт.

Выбрано товаров: 33
