Запчасти Case IH 5000 (9-44) - OPERATORS CAB MOUNTING AND RAILS (09) - CHASSIS/ATTACHMENTS

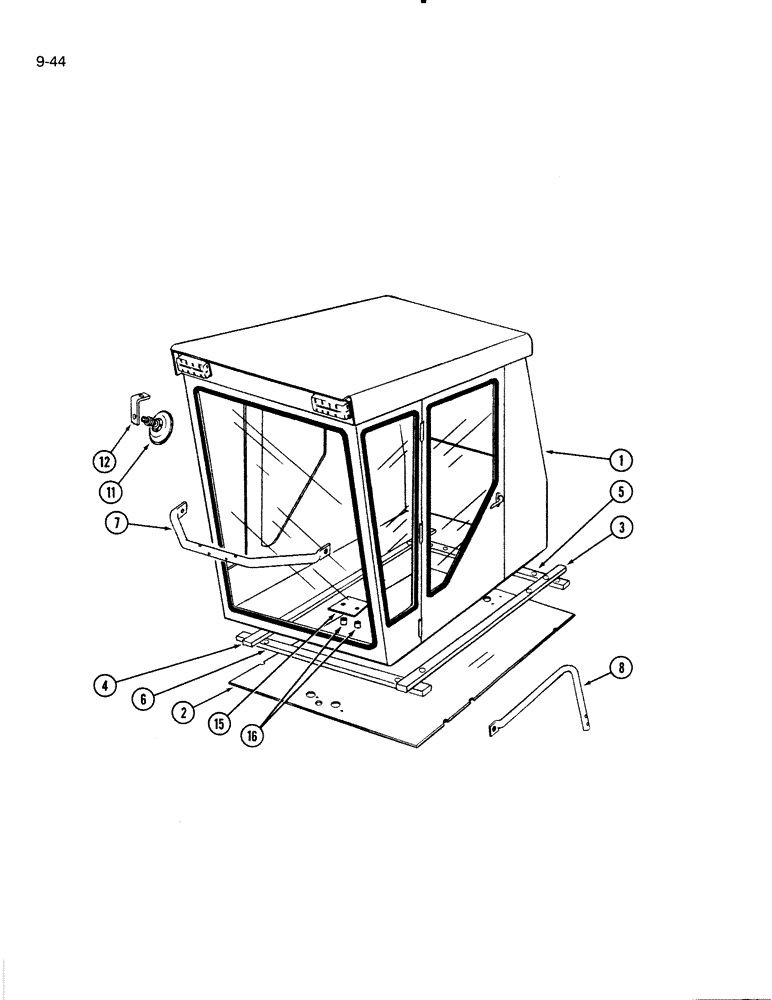

Схема запчастей Case IH 5000 - (9-44) - OPERATORS CAB MOUNTING AND RAILS (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

CAB ASSEMBLY - operators

1шт.

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex lock, 3/8 inch NC

2шт.

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

12шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

10шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

10шт.

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

2шт.

2

823429C3

MAT

- floor

1шт.

3

831438C2

STRIP

- cab sealing, side, LH

1шт.

4

831439C2

STRIP - cab sealing, side, RH

1шт.

5

831440C2

STRIP - cab sealing, rear

1шт.

6

831369C2

SEALING STRIP

- cab sealing, front

1шт.

7

829059C1

RAIL

- guard, front

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

8

823889C1

RAIL

- guard, side

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

425-105

NUT,5/16"-18, G5

1шт.

11

830622C1

MIRROR

- rear view

1шт.

12

823348C1

SUPPORT

- mirror

1шт.

15

823489C1

BAR

- decal mounting

1шт.

434-520

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT - round head square neck, 5/16 NC x 1-1/4 inch

2шт.

425-105

NUT,5/16"-18, G5

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

16

22586N

SPACER,3/8" Pipe x 9/16"

- pipe, 3/8 x 9/16 inch

2шт.

Выбрано товаров: 27
