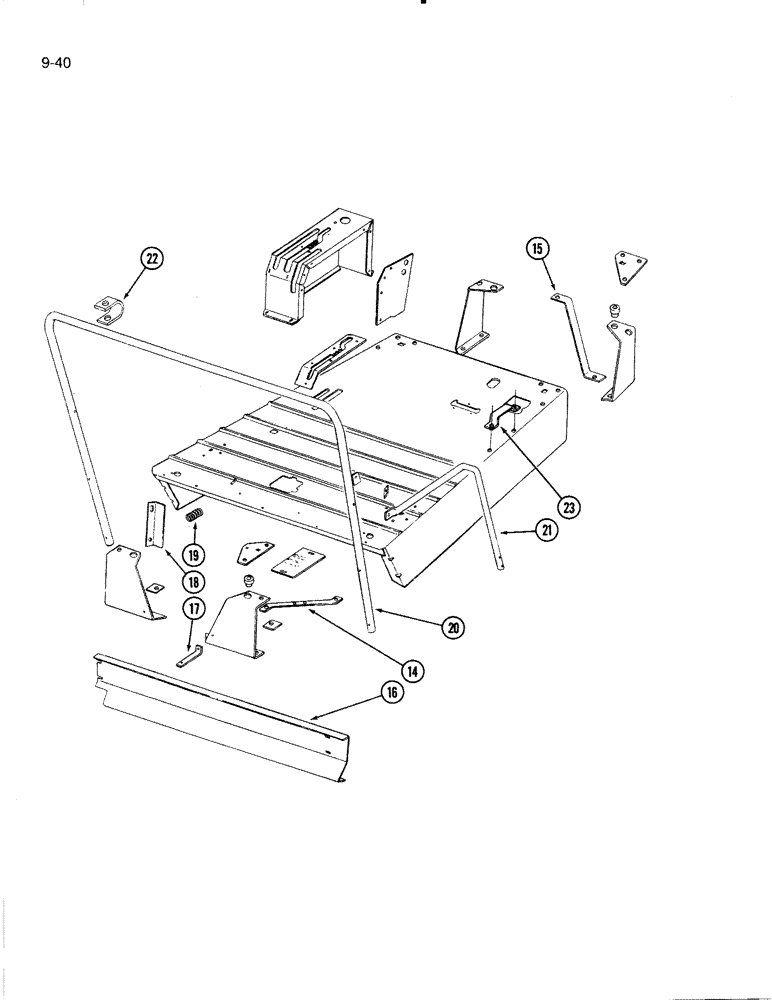

Запчасти Case IH 5000 (9-40) - OPERATORS PLATFORM AND FRONT RAILS (09) - CHASSIS/ATTACHMENTS

14

823498C1

SUPPORT

- platform, front

2шт.

15

831310C1

SUPPORT

- platform, rear

2шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch, plated

4шт.

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

4шт.

16

829083C4

PANEL

- front cover

1шт.

91401C1

DECAL

- CaseIH trademark, 8-1/4 inch long

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

2шт.

17

831480C1

SUPPORT

- front cover panel

2шт.

281-5488

SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 1/2"

SCREW - self tapping, 5/16-18 x 1/2 inch

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

18

827185C1

GUIDE

- front cover panel

1шт.

535789R1

BOLT,Hex Serr, 5/16" - 18 x 1 1/4"

- hex flange, 5/16 NC x 1-1/4 inch

2шт.

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

19

14A-1

SPRING

- panel retaining

2шт.

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 3/64 inch

4шт.

20

828210C2

RAIL

- front guard (See Note)

1шт.

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

21

823888C1

RAIL

- side guard (See Note)

1шт.

180087

SPRING

- hex, 5/16 NC x 2 inch

1шт.

425-105

NUT,5/16"-18, G5

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

22

828763C1

CLAMP

- headlight (See Note)

2шт.

23

591841R1

STRIP

HANDLE - grab (See Note)

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 3/4 inch

2шт.

425-105

NUT,5/16"-18, G5

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
