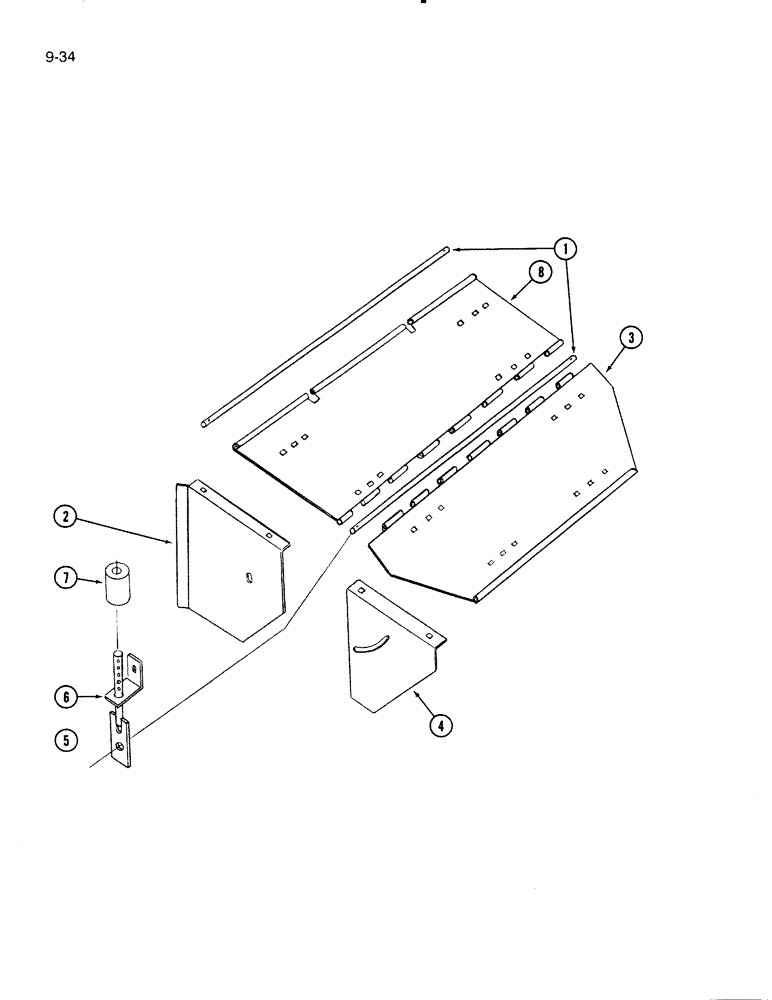

Запчасти Case IH 5000 (9-34) - REAR DEFLECTOR, TWO PIECE TYPE (09) - CHASSIS/ATTACHMENTS

1

823999C1

ROD

- shield pivot

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

4шт.

2

823985C1

SHIELD

- front left side

1шт.

2

823986C1

SHIELD

- front right side

1шт.

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT CARRIAGE, Short NK, 5/16"-18 x 1/2", G5, Full Thd

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

3

823989C1

SHIELD

- rear deflector

1шт.

4

823987C1

SHIELD

- rear left side

1шт.

4

823988C1

SHIELD

SHILED - rear right side

1шт.

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT CARRIAGE, Short NK, 5/16"-18 x 1/2", G5, Full Thd

4шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 3/4 inch

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 3/64 inch

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

7500032

BUSHING

NUT - wing, 5/16 inch NC

2шт.

5

823995C1

ADJUSTER

ASSEMBLY - shield

2шт.

599744R1

AXLE PIN

PIN - hair, internal type

4шт.

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 7/64 inch

4шт.

6

823998C1

ANGLE

- support

2шт.

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - round head square neck, 1/2 NC x 1 inch

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

7

600728R1

BUSHING

SPACER - pipe

2шт.

8

823990C1

SHIELD

- rear deflector

1шт.
