Запчасти Case IH 5000 (9-28) - CONDITIONER LOWER DRIVE, CHASSIS MOUNTED (09) - CHASSIS/ATTACHMENTS

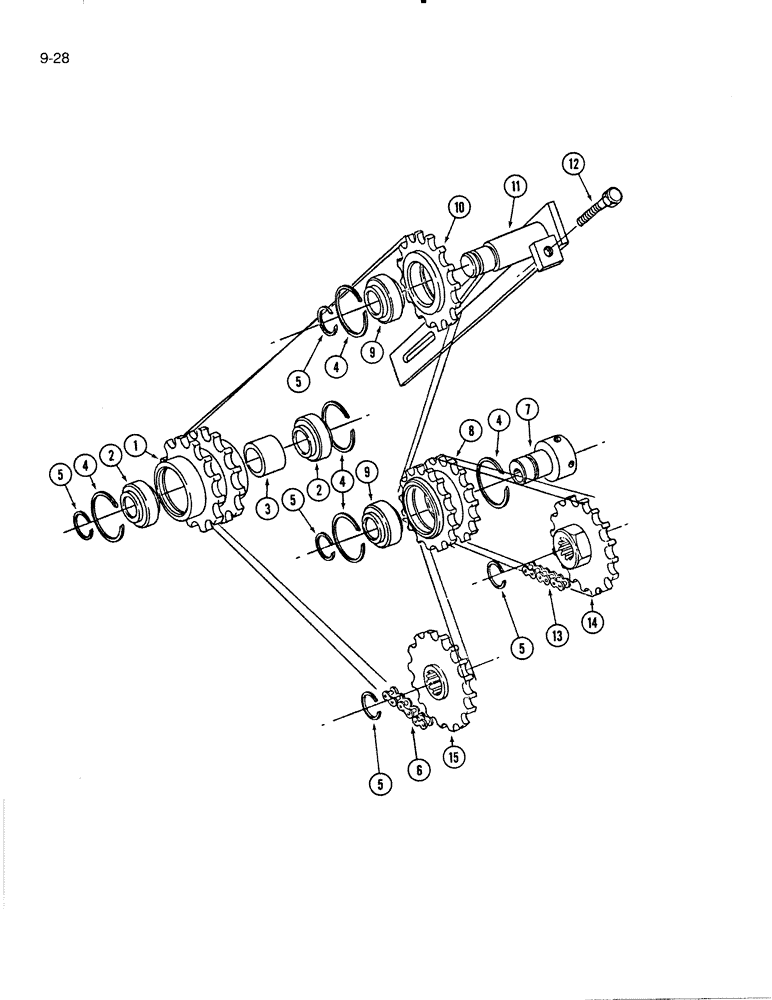

Схема запчастей Case IH 5000 - (9-28) - CONDITIONER LOWER DRIVE, CHASSIS MOUNTED (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1

831701C1

SPROCKET ASSY.

SPROCKET ASSEMBLY - roll drive, dual, 22 tooth (Replaces 8311701C1)

1шт.

2

117510R91

BEARING, BALL

BEARING - ball

2шт.

3

829088C1

SPACER

SRACER - sprocket bearing

1шт.

4

468337R1

SNAP RING,2.812", Int, #281

Ring, Snap, 2.812", Int, #281

5шт.

5

21193R1

SNAP RING,#137. Ext

Ring, Snap, #137, Ext

5шт.

6

NSS

NOT SOLD SEPARAT

CHAIN - lower roller and camshaft drive (Use 139 links from bulk chain 611362R91 plus 1 connecting link 574532R91 and 1 offset link 612612R91)

1шт.

7

828069C1

SHAFT

- idler sprocket cam

1шт.

8

828070C1

SPROCKET ASSY.

SPROCKET ASSEMBLY - roll drive, dual, 20 tooth

1шт.

9

584148R91

BEARING ASSY,35mm ID x 72mm OD x 25mm W

BEARING ASSEMBLY - ball

2шт.

10

831750C1

SPROCKET ASSY.

SPROCKET ASSEMBLY - roll drive tightener, 22 tooth

1шт.

11

831722C1

BRACKET

ASSEMBLY - roll drive

1шт.

414-1224

BOLT,Hex, 3/4" - 16 x 1-1/2", Gr 5

- hex, 3/4 NF x 1-1/2 inch

1шт.

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT - round head square neck, 1/2 NC x 1-3/4 inch

1шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 7/64 inch

1шт.

12

832327C1

BOLT,Hex, 1/2" - 13 x 5.50", Gr 5

- tightener bracket adjusting

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

495-81024

WASHER,17/32" x 1 1/4" x .060"

- 17/32 x 1-1/4 x 1/16 inch

1шт.

13

NSS

NOT SOLD SEPARAT

CHAIN - upper roll drive (Use 39 links from bulk chain 611362R91 plus 1 connecting link 574532R91 and 1 offset link 612612R91)

1шт.

14

828550C1

SPROCKET ASSY.

SPROCKET ASSEMBLY - upper roll drive, 26 tooth

1шт.

15

828550C1

SPROCKET ASSY.

SPROCKET ASSEMBLY - lower roll drive, 26 tooth

1шт.

Выбрано товаров: 23
