Запчасти Case IH 5000 (9-26) - CONDITIONER UPPER MAIN DRIVE, CHASSIS MOUNTED (09) - CHASSIS/ATTACHMENTS

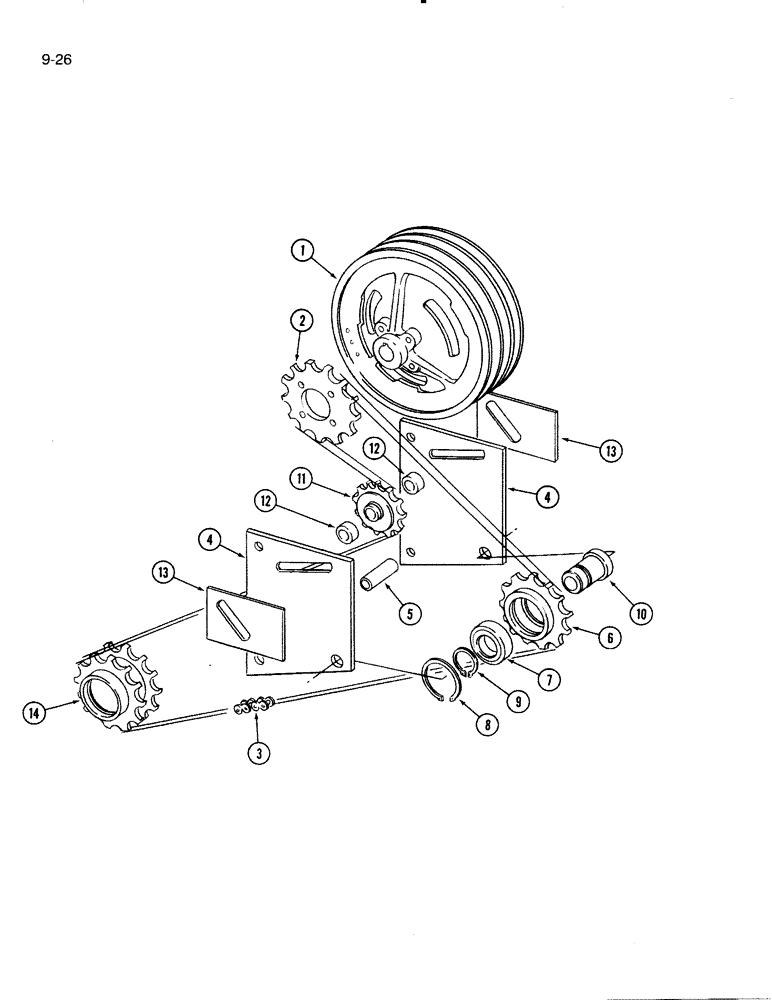

Схема запчастей Case IH 5000 - (9-26) - CONDITIONER UPPER MAIN DRIVE, CHASSIS MOUNTED (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1

832332C1

PULLEY

- header, driven

1шт.

2

832316C1

SPROCKET ASSY.

SPROCKET - main drive, 24 tooth

1шт.

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

3

NSS

NOT SOLD SEPARAT

CHAIN - main drive (Use 121 links from bulk chain 611362R91, plus 1 connecting link 574532R91 and 1 offset link 612612R91)

1шт.

4

832319C1

PLATE

- main drive chain

2шт.

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

5

432984R2

SPACER,1/2" X-Strng Pipe x 1 7/8"

- extra strong pipe, 1/2 x 1-7/8 inch

1шт.

6

831750C1

SPROCKET ASSY.

SPROCKET ASSEMBLY - main drive idler, 22 tooth

1шт.

7

584148R91

BEARING ASSY,35mm ID x 72mm OD x 25mm W

BEARING ASSEMBLY - ball

1шт.

8

468337R1

SNAP RING,2.812", Int, #281

Ring, Snap, 2.812", Int, #281

2шт.

9

21193R1

SNAP RING,#137. Ext

Ring, Snap, #137, Ext

1шт.

10

832318C1

SHAFT

- idler sprocket mounting

1шт.

413-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

- hex, 3/4 NC x 3-1/4 inch

1шт.

425-1012

NUT,3/4"-10, G5

1шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

21753R1

WASHER

- flat, 25/32 x 1-1/2 x 1/16 inch

1шт.

11

825512C1

SPROCKET ASSY.

SPROCKET ASSEMBLY - main drive chain tightener, 15 tooth

1шт.

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21782R1

WASHER

- flat, 21/32 x 1-1/2 x 1/16 inch

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

1шт.

12

M42297

SPACER

- tightener sprocket

2шт.

464623R1

WASHER

- flat, 21/32 x 1-1/2 x 7/64 inch

2шт.

13

832399C1

BAR

- tightener sprocket adjusting

2шт.

14

831701C1

SPROCKET ASSY.

SPROCKET ASSEMBLY - roll drive, dual, 22 tooth

1шт.

Выбрано товаров: 30
